LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Stainless Steel
: Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
A
52.4±0.3
B
36.5+0.1/-0.15
R
32.5Max
S
49.2±0.4
W
3+0.9/-0.1
VV THREAD
M31x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
: -65°C to +200°C
: 500 hours
PN: 8D721S42BC
A
ISS
08-11-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : Jam nut Receptacle
CONTACT TYPE
SHELL SIZE : 21
PLATING
:
S =
Nickel
: Standard Crimp Contact
ORIENTATION : C
CONTACT TYPE : SOCKET(500 Matings)
CONTACT LAYOUT : 21-42
FORMAT
Stainless Steel Receptacle 8D series
General linear
Tolerances:
±--
8D
7
-
21
S
42
B
C
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D721S42BC-C
SHEET
1/2

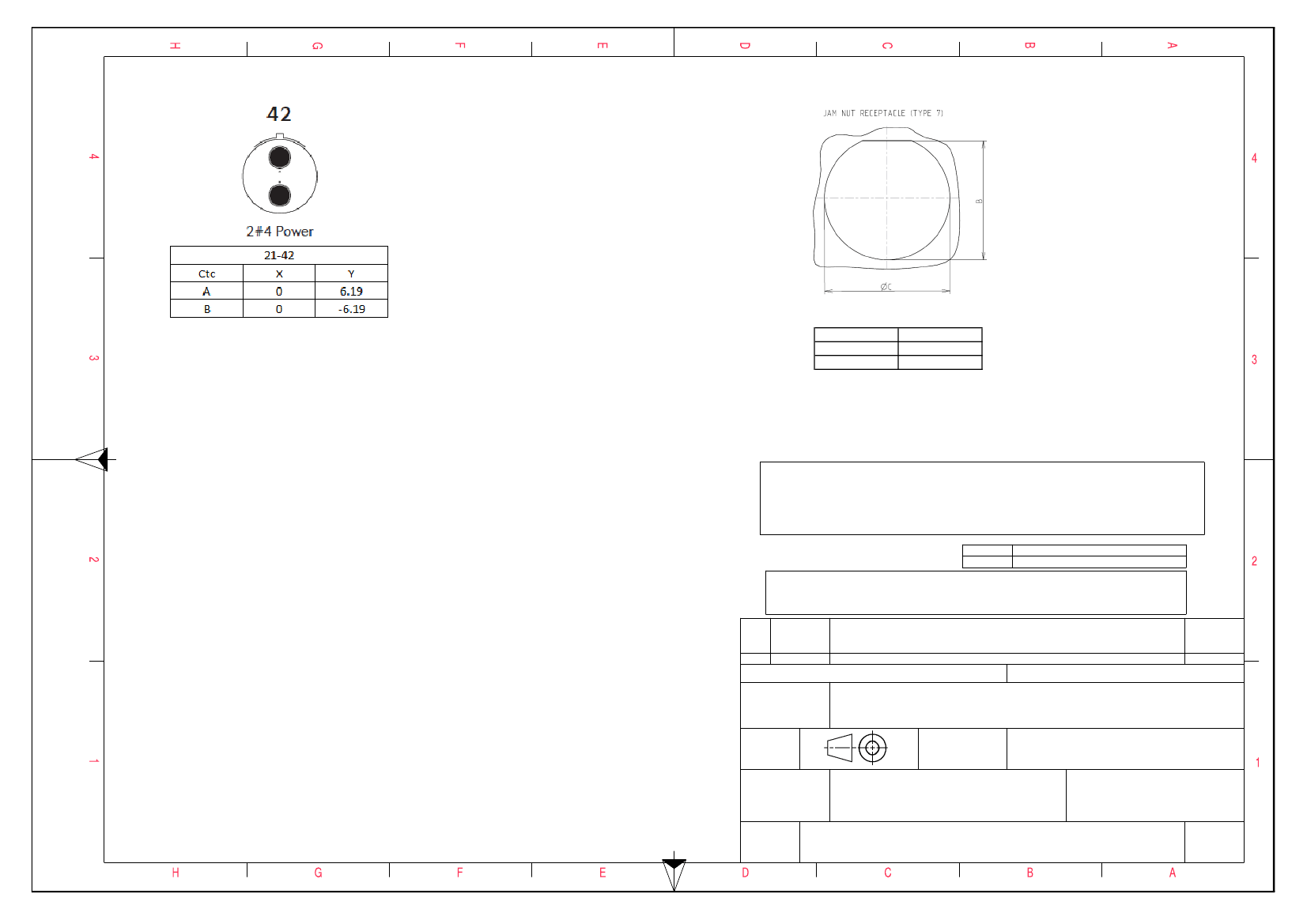

Contact Layout
Panel cutout
Max. thickness panel for receptacle:Type 7: 3.2 mm
Dim
B
ØC
Nominal
37.08+0/-0.25
38.35+0.25/-0
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
PN: 8D721S42BC
A
ISS
08-11-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
SCALE
Stainless Steel Receptacle 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D721S42BC-C
SHEET
2/2
