RR0816P5601B-T1-C datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RR0816P5601B-T1-C

RR0816P5601B-T1-C: DescriptionFixed Resistor, Thin Film, 0.0625W, 5600ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size35KB，1 Pages; ManufacturerThin Film Technology Corp (TFT); Environmental Compliance

Download Datasheet Parametric View All

RR0816P5601B-T1-C Overview

Fixed Resistor, Thin Film, 0.0625W, 5600ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

RR0816P5601B-T1-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1593444087
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH PRECISION
Manufacturer's serial number	RR
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	0.0625 W
resistance	5600 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	75 V

Preview

Download Datasheet

View All

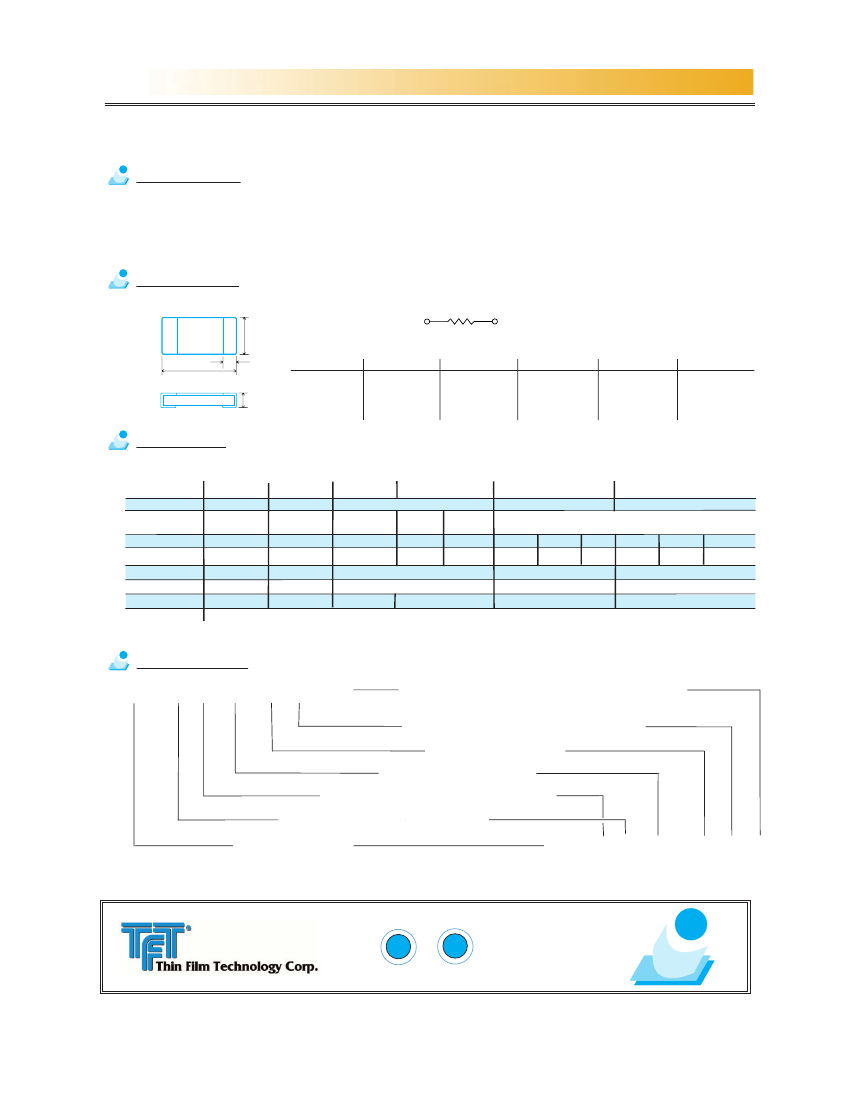

Thin Film Chip Resistors

RR and RN73 Series, High Precision

1.0 Description

Thin Film Technology has achieved high performance chip resistors with low price and reliable supply. The parts

offer excellent performance and tolerance in TCR, current noise, linearity, for high frequency circuit applications.

Precise dimensions minimize errors during mounting. Tight tolerances allow for cost savings due to circuit sim-

plification and elimination of trim pots for adjustment.

2.0 Mechanical

schematic

Dimension

RR0510

(0402)

1.00 ±0.05

0.50 ±0.05

0.20 ±0.10

0.35 ±0.05

RR0816

(0603)

1.60 ±0.20

0.80 ±0.20

0.30 ±0.20

0.40 ±0.10

RR1220

(0805)

2.00 ±0.20

1.25 ±0.20

0.40 ±0.20

0.40 ±0.10

RR1632

(1206)

3.20 ±0.20

1.60 ±0.20

0.50 ±0.20

0.40 ±0.10

RR2632

(1210)

3.20 ±0.20

2.60 ±0.20

0.50 ±0.20

0.45 ±0.10

3.0 Electrical

SSM Manufactured Products

Type

Power

RR0510(0402) RR0816(0603)

RR1220(0805)

RN73(0805)

YDS Manufactured Products

RR1632(1206)

RR2632(1210)

1/16 W

±0.1%

(B)

100~100 k

1/16 W

±0.1%

(B)

100~332 k

1/10 W

±0.1%

(B)

100~1 M

1/8 W

±0.1%

(B)

100~100 k

1/4 W

±0.1%

(B)

Resistance

Tolerance (code)

Resistance range

TCR (ppm/ºC)

Resistance value

Max. voltage

Package pcs./reel

Operating temp

±0.1%

(B)

511~100 k

100~200 k 100~200 k 51~1 M 100~330 k 100~330 k 51~2 M

±25(P)

E-24/E-96

25 V

10,000

±25(P)

±5(V)

±10(N)

±5(V)

±10(N)

±25(P)

±5(V)

±10(N)

±25(P)

E-24/E-96

75 V

100 V

1,000 5,000 1,000 5,000 1,000 5,000 10,000

-55°C - +125°C

E-24/E-96

150 V

1,000 5,000

E-24/E-96

200 V

1,000 5,000

* RR1632 and RR2632 with R-Values less than 50 ohm are available on request

4.0 Part Number

RR 0816 P 102

B - T* - **

RoHS compliant products (C for SSM; LF for YDS)

ackaging (T = Tape, 5 = 5000 pcs/reel)

Resistance tolerance

Resistance value (E-series)

Temperature coefficient of resistance

Package size

Product designator

Rated power

RN73 N 2X 1001

B - T* **

For E-24 values of RR0306, RR0510, RR0816 and RR1220 use three digits when ordering

TERE

ISO9001 ISO14001

303

561
