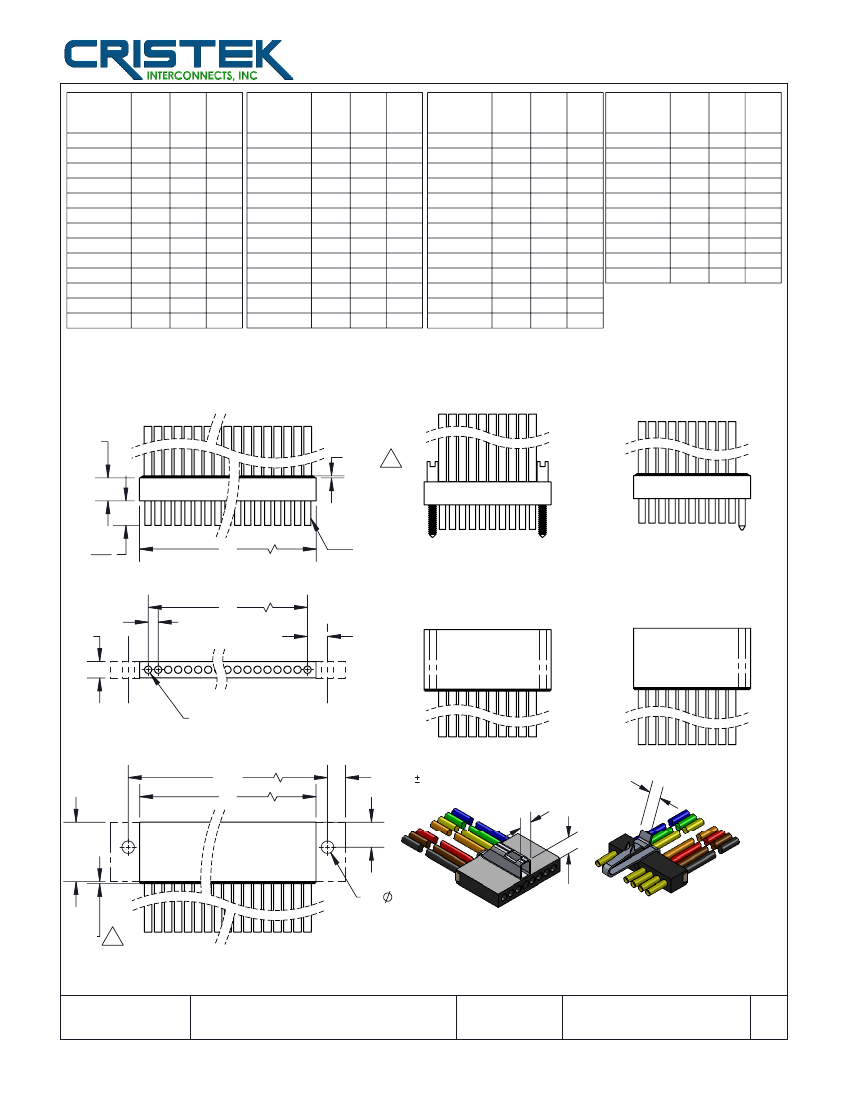

MICRO STRIP
THINGS TO KNOW ABOUT MICRO STRIPS
1. FOR ORDERING PURPOSES SPECIFY ONLY
THE NUMBER OF CONTACTS NEEDED,
DO NOT INCLUDE POSITIONS FOR HARDWARE.
2. TO CALCULATE DIMENSIONS, ADD ONE
CONTACT POSITION FOR EACH
GUIDE PIN/SCREW/LATCH/OPENING REQUIRED.
3. IF HARDWARE IS ORDERED, EXCEPT LATCHES,
IT IS INSTALLED IN THE RECEPTACLE. BE SURE
TO ORDER PLUGS TO ACCEPT HARDWARE.
4. HARDWARE CAN BE MODIFIED, COMBINED OR POSITIONED
TO CONFORM TO CUSTOMER SPECIFICATIONS.
PLEASE CONTACT CRISTEK FOR FURTHER INFORMATION.
5. END-ON-END STACKING APPLICATIONS ARE ALSO
AVAILABLE. PLEASE CONTACT CRISTEK FOR DETAILS.
6. STRIPS WITH OVER 30 CONTACTS MAY BE DIFFICULT TO
MATE AND DEMATE AND TEND TO BECOME FRAGILE.
CONTACT CRISTEK FOR APPLICATION ASSISTANCE
SERIES
CMS
CMS XX X
CRISTEK
PLASTIC MICRO STRIP
NUMBER OF CONTACTS
02 - 50 (SEE TABLE)
GENDER
P = PLUG, PIN CONTACTS
S = RECEPTACLE, SOCKET CONTACTS
X X X X XX
XX
TH
THROUGH HOLE **
- OMIT IF NOT APPLICABLE
(THROUGH HOLE AVAILABLE ONLY
IN PLUG CONFIGURATION)
GUIDE PIN POLARIZING POSITION
- OMIT IF NOT APPLICABLE
(THE CONTACT NUMBER THE GUIDE PIN
WILL FOLLOW - i.e. "6"; THE GUIDE PIN
WILL FALL BETWEEN CONTACT #6 & #7)
WIRE LENGTH (+1.00 / -0.00)
STRANDED
1 = 6 INCHES
2 = 12 INCHES
3 = 18 INCHES
4 = 24 INCHES
5 = 36 INCHES
6 = 72 INCHES
SOLID COPPER (+0.20 / -0.00)
1 = 0.5 INCH
2 = 1.0 INCH
3 = 0.25 INCH
WIRE SIZE
STRANDED WIRE
0 = 26 AWG
1 = 24 AWG
2 = 28 AWG
SOLID WIRE
0 = 25 AWG
1 = 24 AWG
WIRE COLOR/TYPE
0 = WHITE STRANDED *
1 = YELLOW STRANDED
2 = 10 SOLID COLORS REPEATED *
3 = FULL COLOR CODE
9 = SOLID COPPER *
HARDWARE
0 = NO HARDWARE INSTALLED
B = GUIDE PIN BEFORE CONTACT 1 IN RECEPTACLE,
CORRESPONDING HOLE IN PLUG
D = GUIDE PIN AT BOTH ENDS OF RECEPTACLE,
CORRESPONDING HOLES IN PLUG
G = GUIDE PIN IN RECEPTACLE OR CORRESPONDING
HOLE IN PLUG (INDICATE POSITION IN PLUG
OR RECEPTACLE AT END OF PART NO.)
S = 1 MM COUPLING SCREW AT BOTH ENDS OF
RECEPTACLE, CORRESPONDING HOLES IN PLUG
L = LATCH INSTALLED IN CENTER POSITION.
(IN CONNECTORS WITH UNEVEN NUMBER OF
CONTACTS, LATCH WILL BE INSTALLED IN THE
CAVITY ONE POSITION HIGHER THAN THE
CENTER POSITION.)
INSULATOR MATERIAL
5 = POLYPHENYLENE SULFIDE
TERMINATION
0000 - SOLDER CUP *
WIRE TYPE
STRANDED
H = HARNESS (MIL-W-16878/4)
M = MILITARY (MIL-W-22759/11) *
S = SPACE (MIL-W-22759/33)
SOLID
G = GOLD PLATED COPPER
T = SOLDER DIPPED COPPER *
MATERIALS AND FINISHES ARE IAW MIL-DTL-83513
FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
2. FINISH:
3. SPECIFICATIONS:
INSULATOR - GLASS FILLED THERMOPLASTIC
PIN/SOCKET CONTACT - COPPER ALLOY
* = MOST COMMONLY USED & STOCKED TERMINATION OPTIONS
** = DIMENSIONS/INFORMATION FOR THROUGH HOLE MOUNTING OPTION
4. ADDITIONAL INFORMATION:
CONTACT - GOLD OVER NICKEL
CURRENT RATING ------------------ 3 AMPS MAX
TEMPERATURE RATING ---------- -55° C TO +125° C
INSULATION RESISTANCE -------- 5000 MEGOHMS MIN
DWV AT SEA LEVEL ---------------- 600 VAC
DWV AT 70,000 FT ALTITUDE --- 150 VAC
CONTACT RESISTANCE ------------ 8 MILLIOHMS MAX AT 2.5 AMPS
LOW LEVEL CONTACT ------------- 10 MILLIOHMS MAX
RESISTANCE
CONTACT RETENTION ------------- 5 lb MINIMUM AXIAL LOAD
ENGAGEMENT FORCE ------------- 6 oz MAX
SEPARATION FORCE --------------- 0.5 oz MIN
DESIGN AND PERFORMANCE IN GENERAL
ACCORDANCE WITH M83513.
DUAL ROW MICRO STRIP AVAILABLE, SEE CDS.
CONTACT CRISTEK FOR OTHER
CONFIGURATIONS.
