SR140 THRU SR1100 SPECIFICATION
1A SCHOTTKY BARRIER RECTIFIERS
Rev. A
PRODUCT FEATURES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10
FLAMMABILITY CLASSIFICATION 94V-0
EXTREMELY LOW V
F
LOW STORED CHARGE
MAJORITY CARRIER CONDUCTION
LOW POWER LOSS/HIGH EFFICIENCY

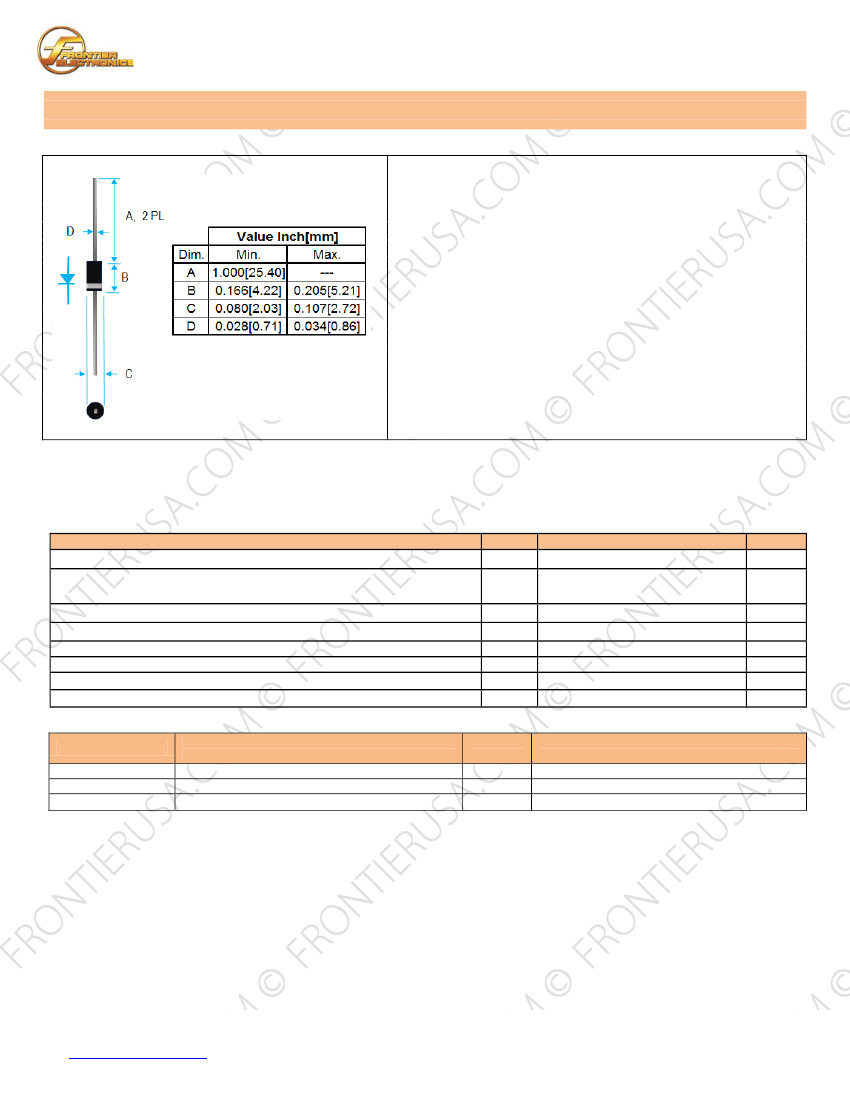

CASE: TRANSFER MOLDED, DO-41
DIMENSIONS IN INCHES AND (MILLIMETERS)
LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208
WEIGHT: 0.34 GRAMS
RoHS COMPLIANT
ELECTRICAL CHARACTERISTICS
MAXIMUM RATINGS (T
A
=25°C UNLESS OTHERWISE NOTED ) AND ELECTRICAL CHARACTERISTICS
RATING
SYMBOL
I
O
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT, SEE FIG.1
1.0 V
A
n
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
I
FSM
L
30
SINE-WAVE SUPERIMPOSED ON RATED LOAD
U
C
J
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
110 E
RθjA
TYPICAL THERMAL RESISTANCE (NOTE 2)
50
STORAGE TEMPERATURE RANGE
T
STG
- 55 TO +150
T
OP
OPERATING TEMPERATURE RANGE (NOTE 4)
- 55 TO +125
MAXIMUM REVERSE CURRENT AT 25°C
I
R
0.5
MAXIMUM REVERSE CURRENT AT 100°C
I
R
10
MAX RECURRENT PK REVERSE
VOLTAGE/DC BLOCKING V
RRM
/V
R
(V)
40
60
100
MAX
V
RMS
(V)
28
42
70
UNITS
A
A
pF
°C/W
°C
°C
mA
mA
PART NUMBER
SR140
SR160
SR1100
MAXIMUM FORWARD VOLTAGE @ I
O
DC,
V
F
(V)
0.55
0.70
0.85
NOTE︰ 1. MEASURED AT 1MHz WITH APPLIED REVERSE VOLTAGE OF 4V.
.
2. BOTH LEADS ATTACHED TO HEAT SINK 20x20x1T (mm) COPPER PLATE AT LEAD LENGTH 5mm.
3. CURRENT RATING IS BASED ON SINGLE PHASE, 1/2 WAVE, 60HZ, RESISTIVE, OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD,
DERATE CURRENT BY 20%.
4. SR160 AND SR1100 OPERATING TEMPERATURE CAN GO UP TO +150°C.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
SR140 THRU SR1100 SPECIFICATION

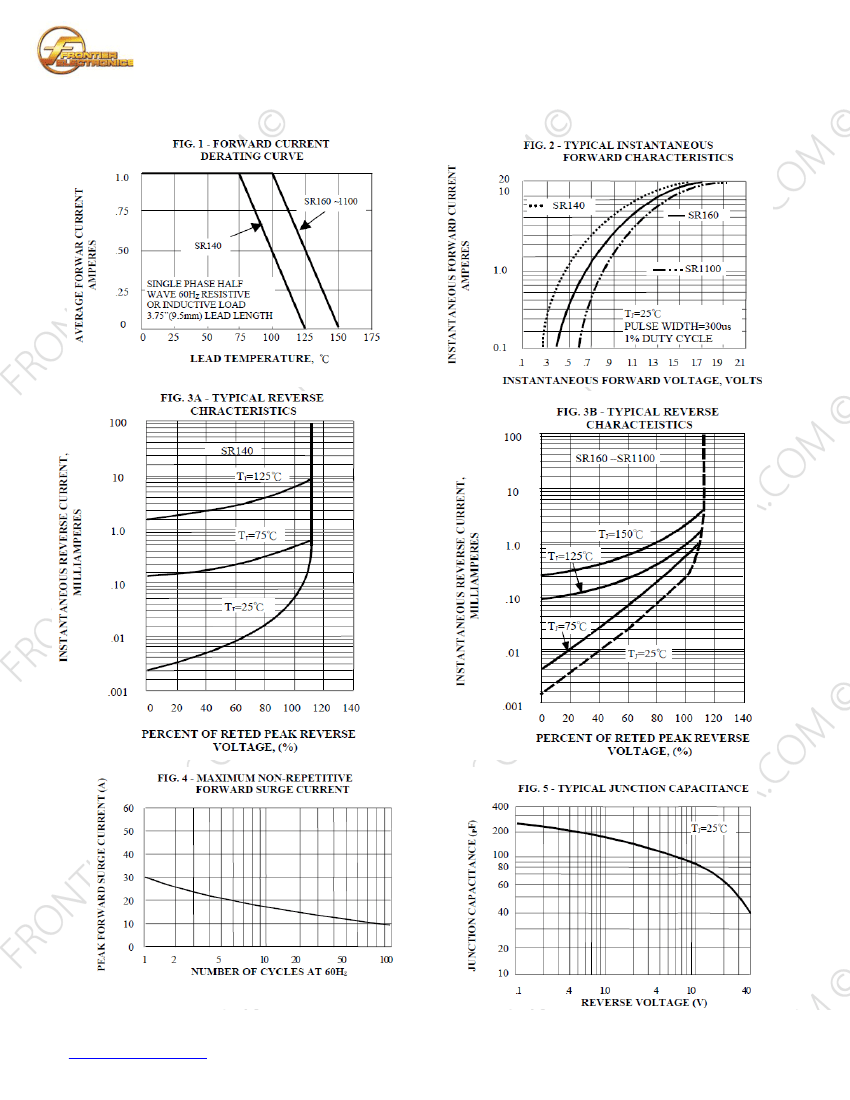

RATINGS AND CHARACTERISTIC CURVES
Rev. A
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
