SR3150 THRU SR3200 SPECIFICATION
3A SCHOTTKY BARRIER RECTIFIERS
Rev. A
PRODUCT FEATURES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10
FLAMMABILITY CLASSIFICATION 94V-0
EXTREMELY LOW V
F
LOW STORED CHARGE
MAJORITY CARRIER CONDUCTION
LOW POWER LOSS/HIGH EFFICIENCY
CASE: TRANSFER MOLDED, DO-201AD

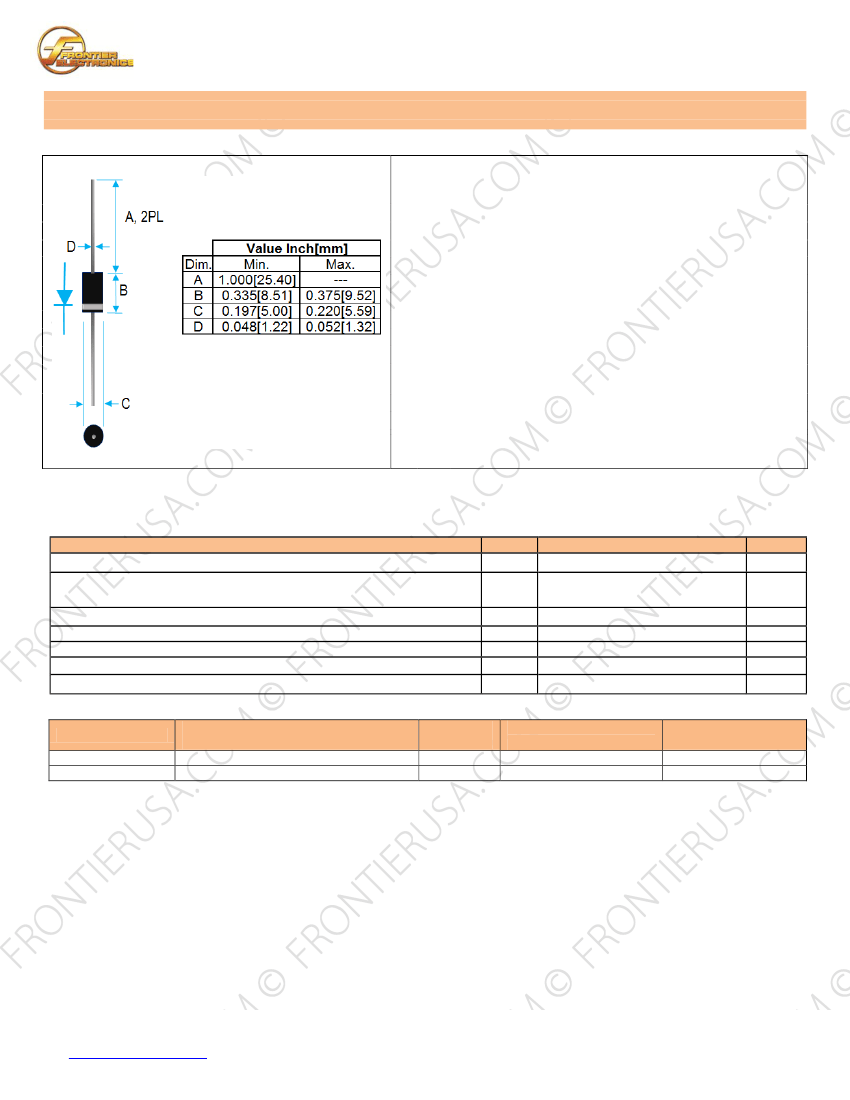

DIMENSIONS IN INCHES AND (MILLIMETERS)
LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208
WEIGHT: 1.1 GRAMS
RoHS COMPLIANT
ELECTRICAL CHARACTERISTICS
MAXIMUM RATINGS (T
A
=25°C UNLESS OTHERWISE NOTED ) AND ELECTRICAL CHARACTERISTICS
RATING
SYMBOL
V
I
O
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT, SEE FIG.1
3
A
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
I
FSM
L
80
SINE-WAVE SUPERIMPOSED ON RATED LOAD
U
Rθja
TYPICAL THERMAL RESISTANCE (NOTE 2)
25 E
STORAGE TEMPERATURE RANGE
T
STG
- 55 TO +150
T
OP
OPERATING TEMPERATURE RANGE
- 55 TO +150
MAXIMUM REVERSE CURRENT AT 25°C
I
R
0.5
MAXIMUM REVERSE CURRENT AT 100°C
I
R
10
UNITS
A
A
°C/W
°C
°C
mA
mA
PART NUMBER
SR3150
SR3200
MAX RECURRENT PK REVERSE
VOLTAGE/DC BLOCKING V
RRM
/V
R
(V)
150
200
MAX V
RMS
(V)
105
140
TYPICAL JUNCTION
1
CAPACITANCE C
J
(pF)
250
250
MAXIMUM FORWARD
4
VOLTAGE V
F
(V)
0.90
0.92
NOTE︰ 1. MEASURED AT 1MHz WITH APPLIED REVERSE VOLTAGE OF 4V.
2. BOTH LEADS ATTACHED TO HEAT SINK 20x20x1T (mm) COPPER PLATE AT LEAD LENGTH 5mm.
3. CURRENT RATING IS BASED ON SINGLE PHASE, 1/2 WAVE, 60HZ, RESISTIVE, OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD,
DERATE CURRENT BY 20%.
4. MEASURED AT I
O
DC.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
SR3150 THRU SR3200 SPECIFICATION

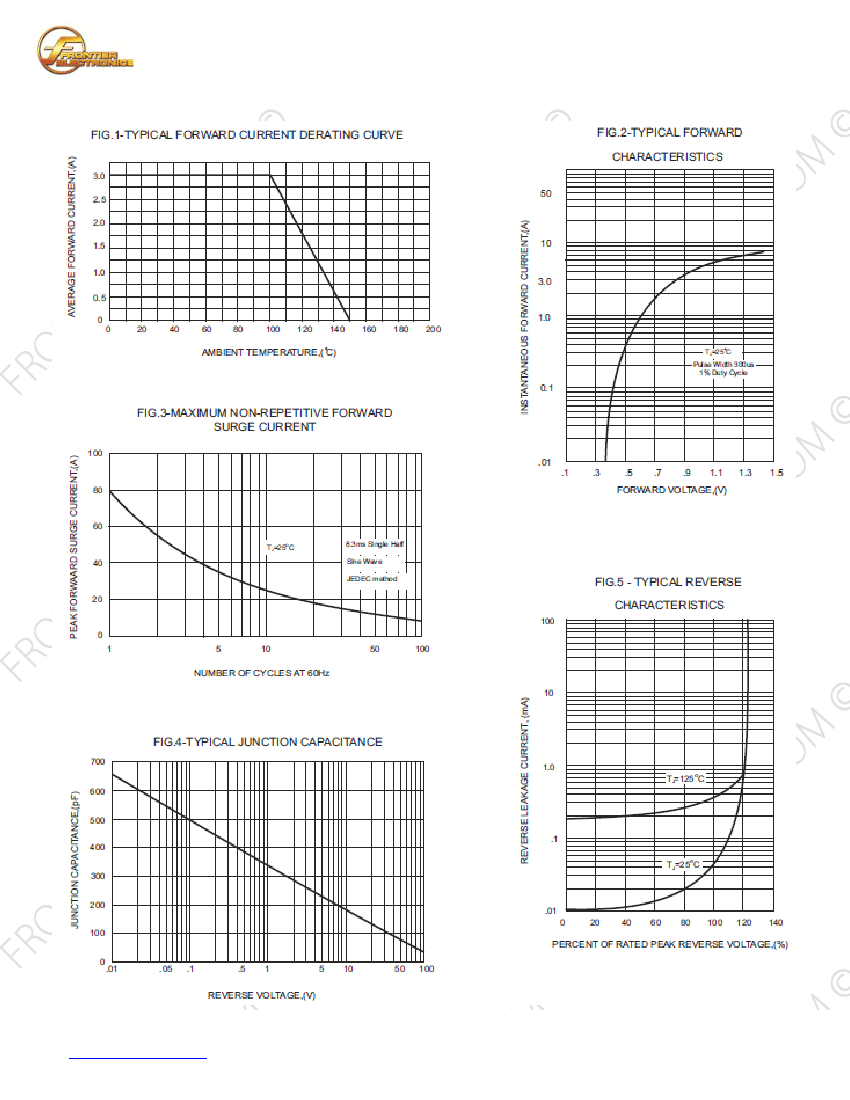

RATINGS AND CHARACTERISTIC CURVES
