BU4339F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BU4339F

BU4339F: Description1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO4; CategoryPower/power management The power supply circuit; File Size321KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

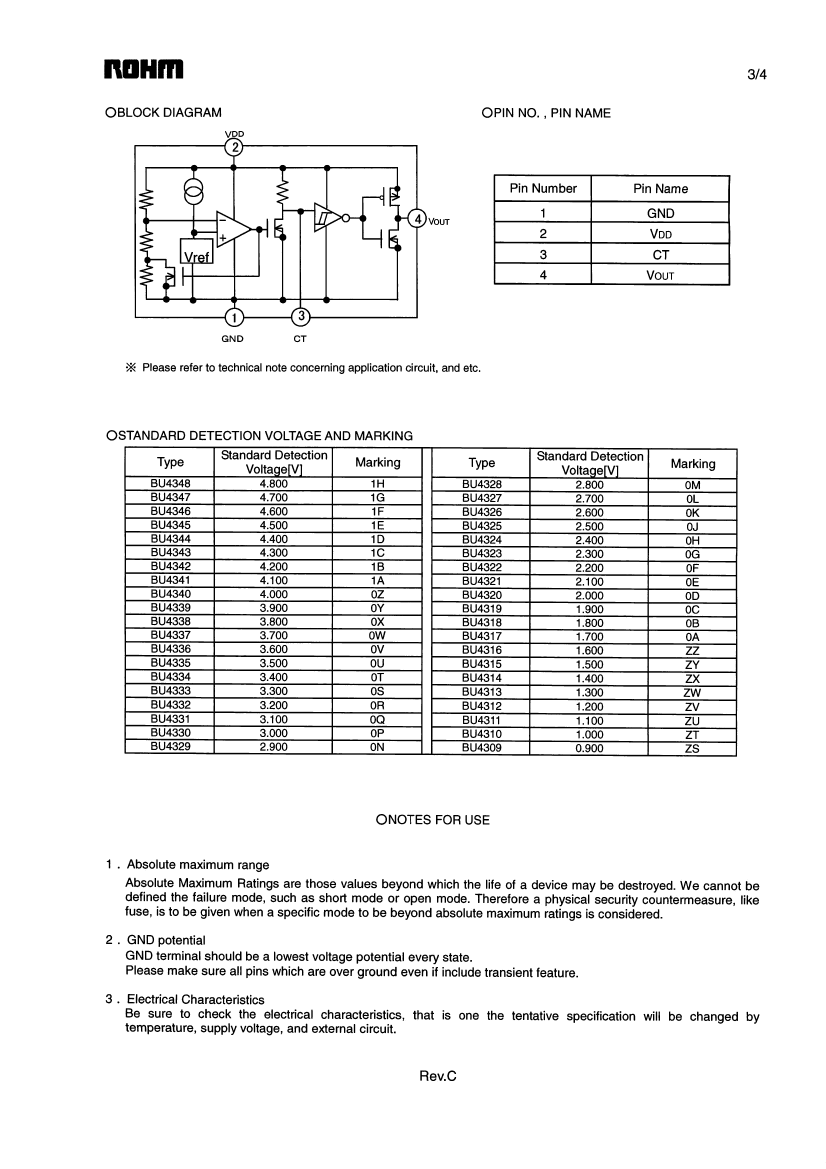

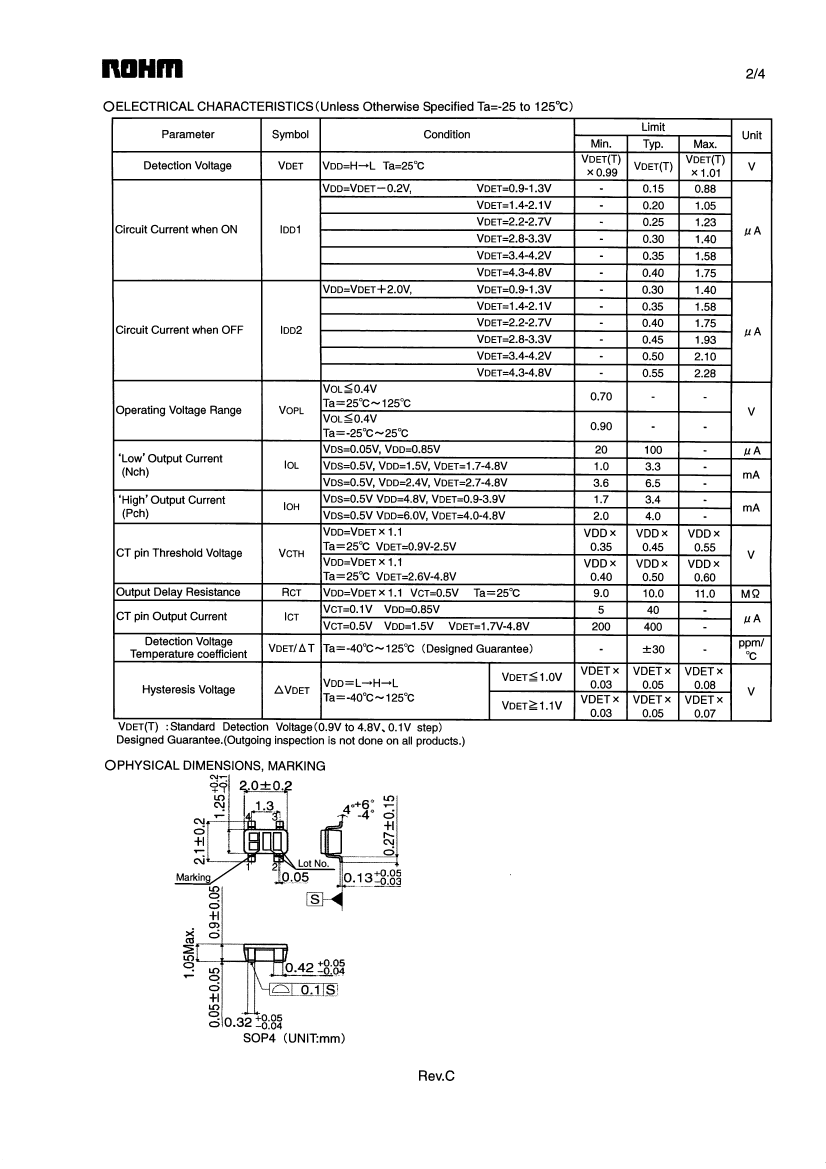

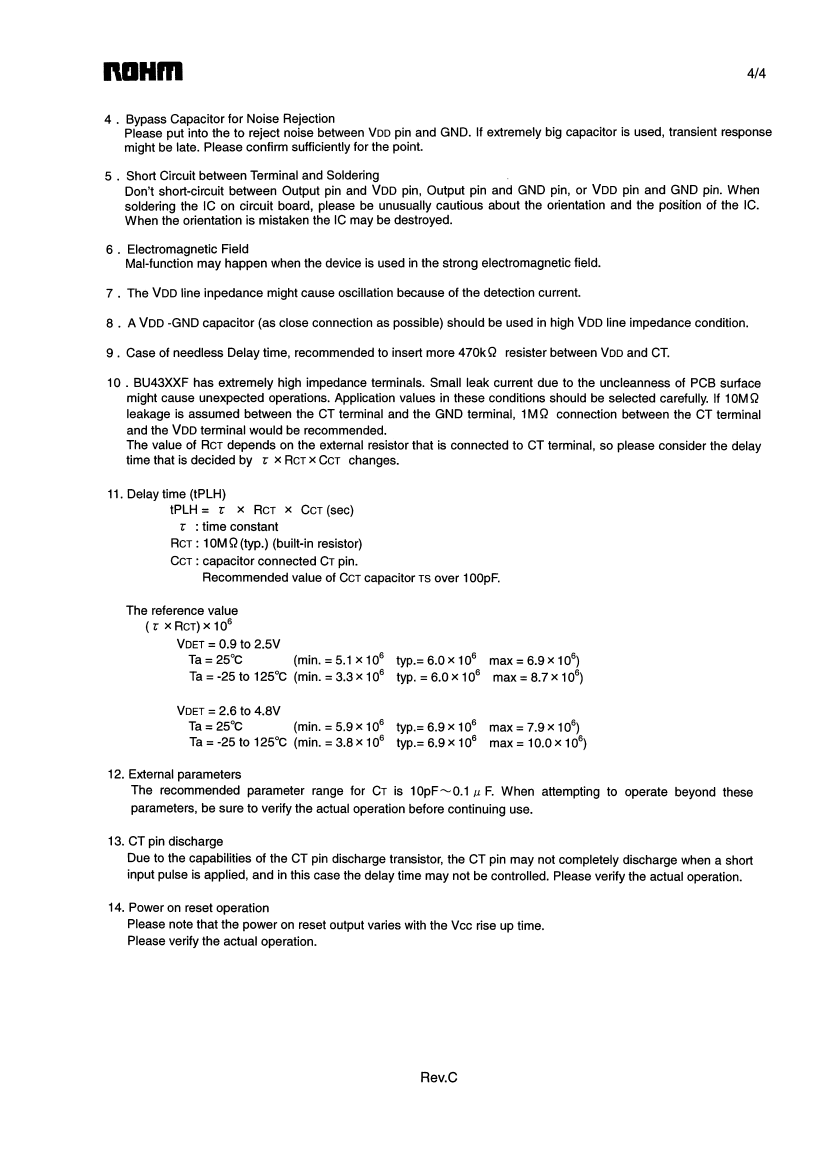

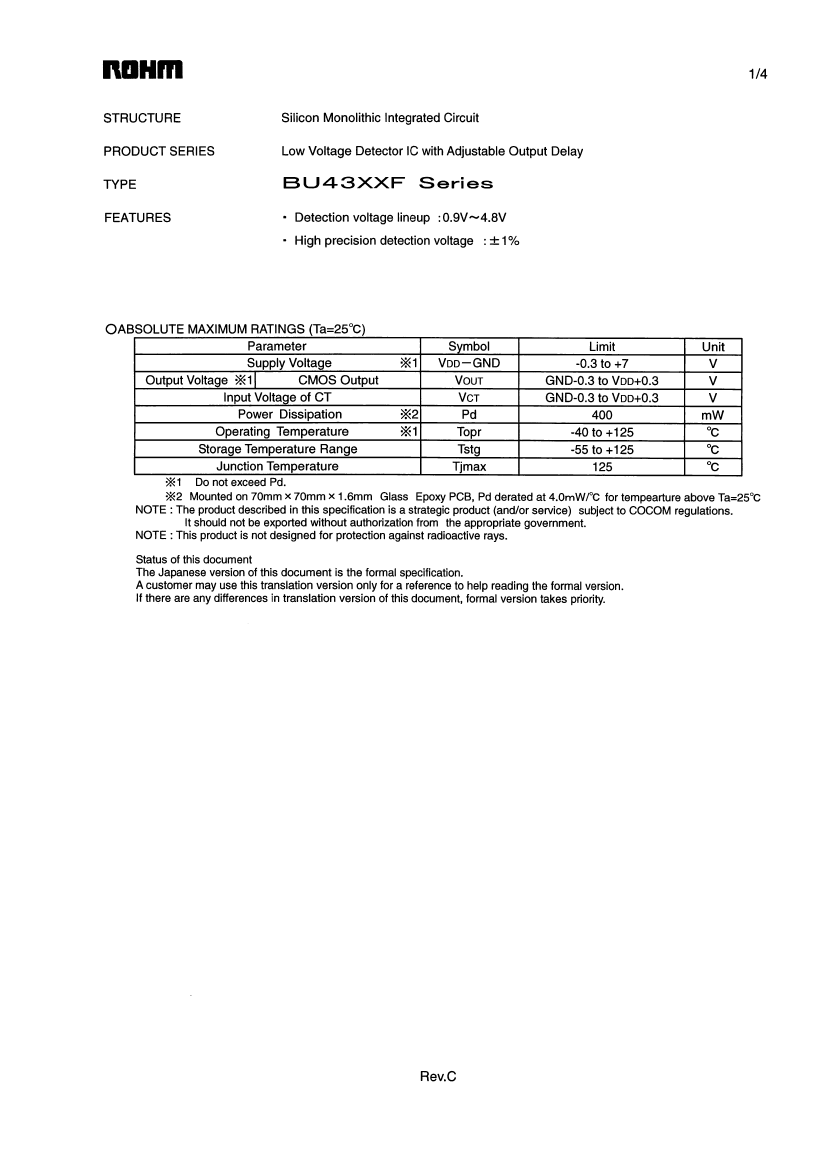

BU4339F Overview

1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO4

BU4339F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	TSOP, TSOP4,.08
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DETECTION THRESHOLD VOLTAGE IS 3.9V
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G4
JESD-609 code	e2
length	2 mm
Number of channels	1
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP4,.08
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.05 mm
Minimum supply voltage (Vsup)	0.9 V
Nominal supply voltage (Vsup)	2.4 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	1.3 mm
Terminal location	DUAL
Threshold voltage nominal	+3.9V
Maximum time at peak reflow temperature	10
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All
