AC/DC EXTERNAL DESKTOP ADAPTER UNIVERSAL INPUT

SINGLE OUTPUT 75 WATTS SWITCHING POWER SUPPLIES

TPES75

SERIES

FEATURES:

ACCOMMODATES UNIVERSAL AC SOURCES

DESKTOP IEC320-3PL/2P AC RECEPTACLE

MEET UNIVERSAL SAFETY STANDARDS

EMI MEET EN 55022/FCC CLASS B

CE MARKING COMPLIANCE

TOTAL POWER INT'L

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Range 90-264Vac typical.

Input Connector:

IEC320-3PL/2P AC receptacle.

Input Frequency:

47-63Hz.

Inrush Current:

26A@120Vac & 55A@230Vac typical.

Input Current:

1.2A @ 120Vac & 0.6A @ 230Vac typical.

Dielectric Withstand:

Meet IEC950.

EMI/RFI:

Meet EN 55022 & FCC Class B.

Hold-up Time:

16mS @ 115Vac / 72mS @ 230Vac typical.

Constant Current Protection:

Installed.

Over Temp. Protection (OTP):

Installed.

Earth Leakage:

0.35mA typical.

OUTPUT SPECIFICATION

Output Voltage:

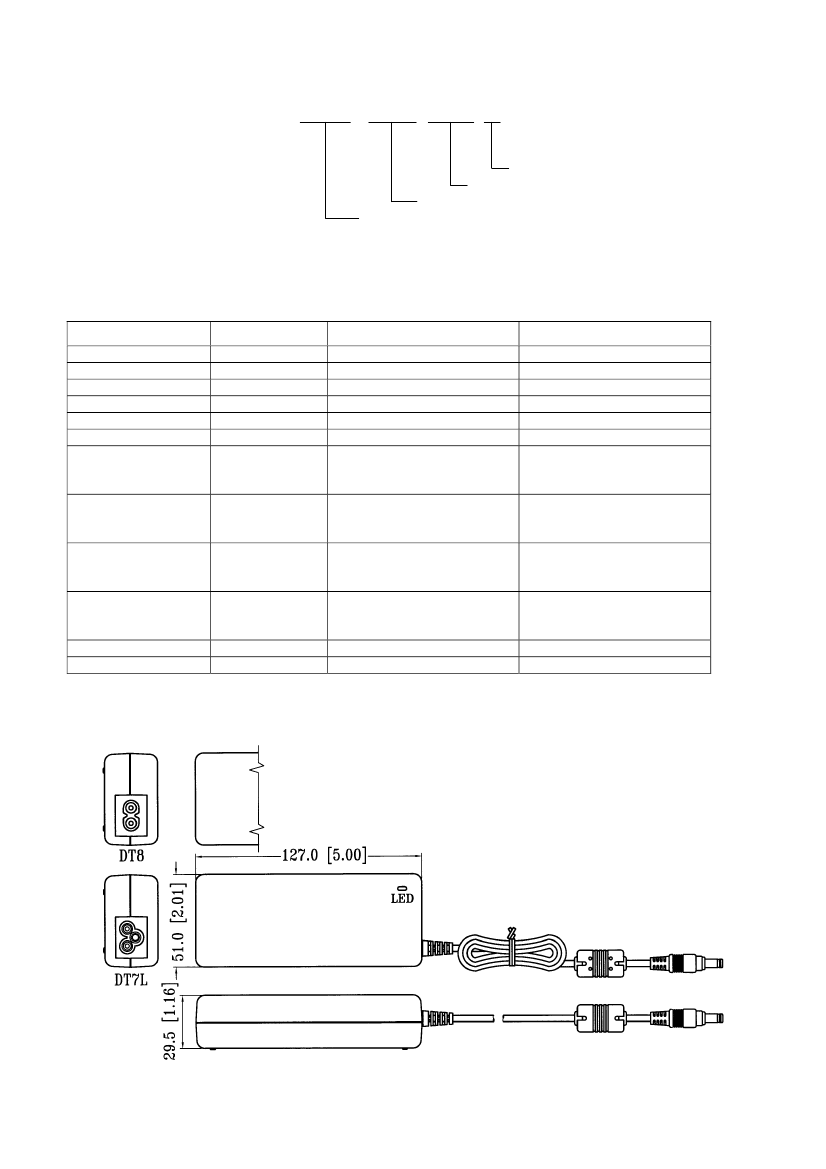

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

75 Watts typical.

Output Connector & Cord:

Optional.

Output LED Indicator:

Installed.

Line Regulation:

0.1% typical.

Load Regulation:

± 2-3.0% typical.

Noise & Ripple:

1% typical peak to peak.

OVP:

Built-in (latch).

Adjustability:

Factory set.

Overload Protection (OLP):

Fully protected against output overload and short circuit.

Typically set at 115% max. load.

Consult the factory for special OLP setting.

Operating Temperature:

0 to +40°C.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

0.04% /°C typical.

Cooling:

Free air convection cooling.

Construction format:

Impact resistant thermo-plastic

enclosure. Desktop format.

Power Density:

6.45 Watts / Cubic inch.

GENERAL SPECIFICATION

Efficiency:

86-91.5% typical at adapter body.

89% typical at end of 2M 18AWG cable cord.

Switching Frequency:

Approximate 72K Hz.

Circuit Topology:

Fixed frequency Flyback circuit.

Transient Response:

Output voltage returns in less than

0.1mS following a 25% load change.

Safety Standard:

UL1950/EN60950 Class I & II.

In application

Due to requests in market and advances in technology, specifications subject to change without notice.
