Tota Power International, Inc.
TPHPU15 SERIES

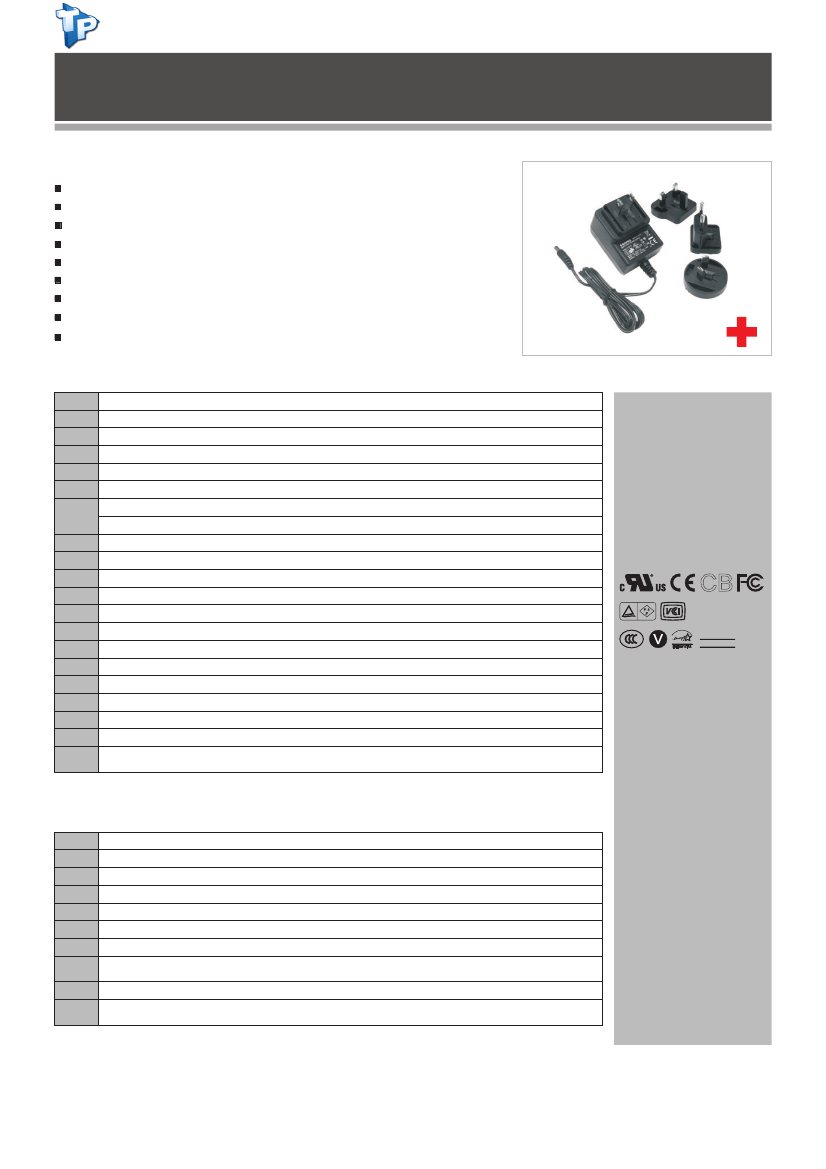

Features:
Wide Operating Voltage, 80 to 275 VAC, 47 to 440 Hz
Interchangeable Plug
Single Output
Over Voltage and Over Load protection
Medical Safety 3rd (IEC60601-1 3rd Edition)
Input to Output : 2MOPP
Energy Star 2.0, Efficiency level V
Class II system
2 year warranty
15W Interchangeable Power Supplies for MEDICAL
Electrical Characteristics:
Vins
Vin
Fi
Po
Iil
Iih
Ir
Eff
REG-i
OVP
OCP
Ttr
Thu
Ts
Vp-p
Tc
Pno
Vps
EMI
Safety Approvals Input Voltage Range
Operate Voltage Range
Input Frequency
Output Power Range
Input Current (Low Line)
Input Current (High Line)
Low Line Inrush Current
High Line Inrush Current
Efficiency
Line Regulation
Over Voltage Protection
Over Current Protection
Time of Transient Response
Hold-Up Time
Start Up Time
Ripple & Noise(Peak to Peak)
Temperature Coefficient
No-Load Power Consumption
Dielectric Withstanding Voltage
EMC Emission
Nil.But,Output protected to short circuit conditions
Io=Full Load, Vin=110VAC
Io=Full Load, Vin=110VAC
Io=Full Load, Vin=100~240VAC
Full Load, Vin=90VAC
All Condition
No load, Vin=230VAC
Primary to secondary
Compliance to EN55011 (CISPR11),
EN61000-3-2,-3
4mS (max.)
S&E
Safety Approval & Specification in Label
See derating curve
Sine wave
See rating chart
Io=Full load, Vin=100VAC
Io=Full load, Vin=240VAC
Io=Full load, 25°C, Cool start, Vin=100VAC
Io=Full load, 25°C, Cool start, Vin=240VAC
Io=Full Load, Vin=230VAC
Io=Full Load, Vin=100~240VAC
Vin=230VAC
100~240VAC
80~275VAC
47~440Hz
Application:
- Home Healthcare Equipment
- Patient Monitor
- Blood Pressure system
- Portable medical devices
- ECG machine
15W
0.6A
0.4A
35A (max.)
85A (max.)
68~85%
1% (max.)
3~5%
Nil
Safety Approvals:
REG-o Load Regulation
CB
IP22
RoHS
2
2011/65/EU
12mS (typ.)
2S (max.)
1% (max.)
±0.04%/°C
See rating chart
6483VDC (min.)
B Class
Environmental
To
Ts
Ho
Hr
Vsg
ESDa
ESDc
MTBF
ELEV
VBR
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Surge Voltage
Electro Static Discharge
Electro Static Discharge
Mean Time Between Failure
Operating Altitude (Elevation)
Vibration
See derating curve
10 ~ 95% RH
Non-condensing
See Rating Chart
All Condition
Air Discharge, IEC61000-4-2
Contact Discharge, IEC61000-4-2
Operating Temperature at 25°C,
Calculated per MIL-HDBK-217F
All condition
10 ~ 500Hz, 10min./1cycle, 60min.
Each along X, Y, Z axes
-10~70°C
-40~85°C
0~95% RH
0~95% RH
2kV (min.)
8kV (min.)
6kV (min.)
0.1M Hrs (min.)
5000m (max.)
5G (min.)
Total Power International, Inc. Toll Free:
877-646-0900(U.S.)
PH#
(978) 453-7272
www.total-power.com
sales@total-power.com
Tota Power International, Inc.
Total
TPHPU15 SERIES
15W Interchangeable Power Supplies for MEDICAL
Output Voltage And Current Rating Chart ( Single Output ) :
Model Number
TPHPU15-101
TPHPU15-102
TPHPU15-103
TPHPU15-104
TPHPU15-105
TPHPU15-106
TPHPU15-107
TPHPU15-108
TPHPU15-109
TPHPU15-110
TPHPU15-111
TPHPU15-112
Output Voltage
3.3 VDC
5 ~ 6.5 VDC
7.5 ~ 8 VDC
9 ~ 11 VDC
12 ~ 13 VDC
14 ~ 16 VDC
17 ~ 21 VDC
22 ~ 27 VDC
28 ~ 33 VDC
34 ~ 40 VDC
41 ~ 50 VDC
51 ~ 55 VDC
Output Current
2.18 A
2.40 ~ 1.84 A
1.60 ~ 1.50 A
1.80 ~ 1.68 A
1.25 ~ 1.15 A
1.07 ~ 0.93 A
0.88 ~ 0.71 A
0.68 ~ 0.55 A
0.53 ~ 0.45 A
0.44 ~ 0.37 A
0.36 ~ 0.30 A
0.29 ~ 0.27 A
Total
Regulation
5%
5%
5%
5%
5%
5%
5%
5%
3%
3%
3%
3%
Max
.
Output Power
7.2W
12W
12W
13.5W
15W
15W
15W
15W
15W
15W
15W
15W
Pno
(max.)
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
TPHPU15-101~104
are required to use AWG#18/4FT output cable.
TPHPU15-105~109
are required to use AWG#20/4FT output cable.
TPHPU15-110~112
are required to use AWG#22/4FT output cable.
The
electrical
characteristics
will be changed by modified output cable.

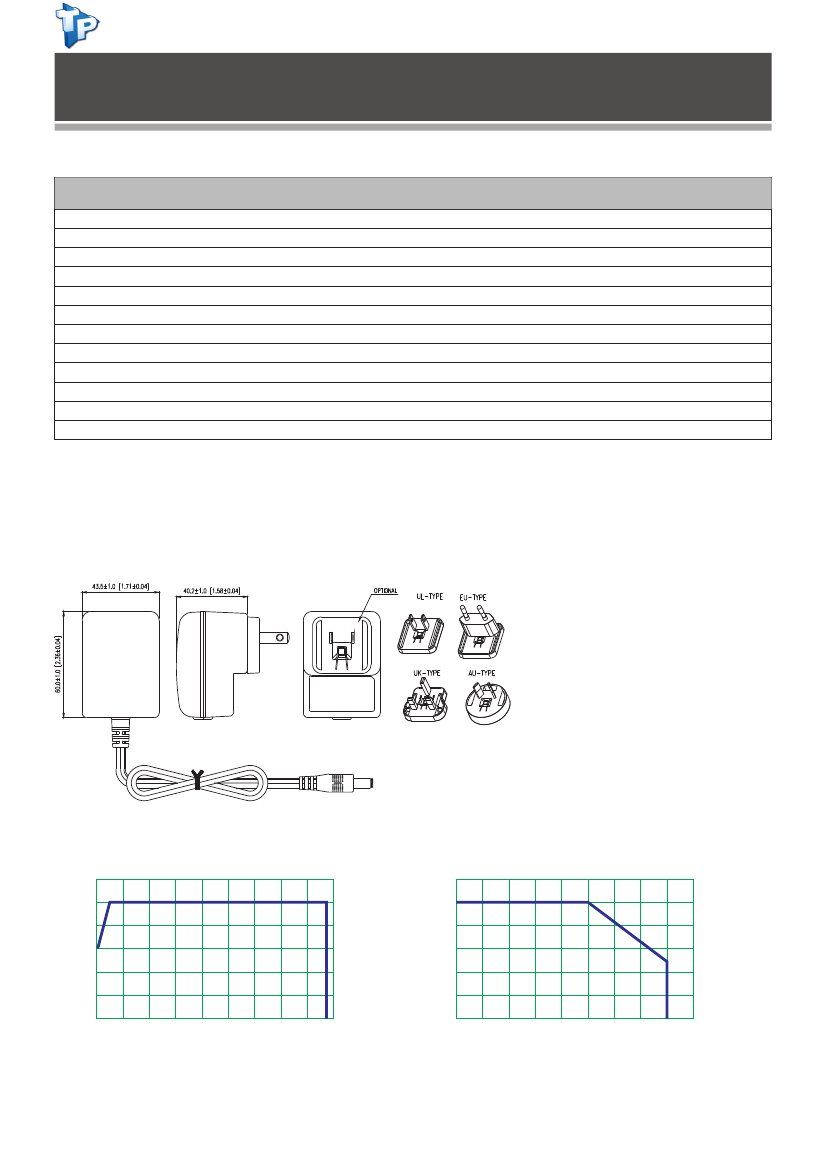

Mechanical Specifications:
Note:
1. Dimensions are shown in mm.
2. Weight: 165gs approx.
3. Optional output connector:
See page Appendix.
Derating Curve :
110
100
120%
100%
Load (%)
90
80
70
60
50
80
Output Watts (%)
100
120
140
160
180
200
220
240
280
80%
60%
40%
20%
0%
-10
0
10
20
30
40
50
60
70
80
Input Voltage (Vac)
Temperature (deg c)
1. Operating Temperature: -10 to 70°C
2. Derate linearly from 100% load at 40°C to 50% load at 70°C
Total Power International, Inc. Toll Free:
877-646-0900(U.S.)
PH#
(978) 453-7272
www.total-power.com
sales@total-power.com
