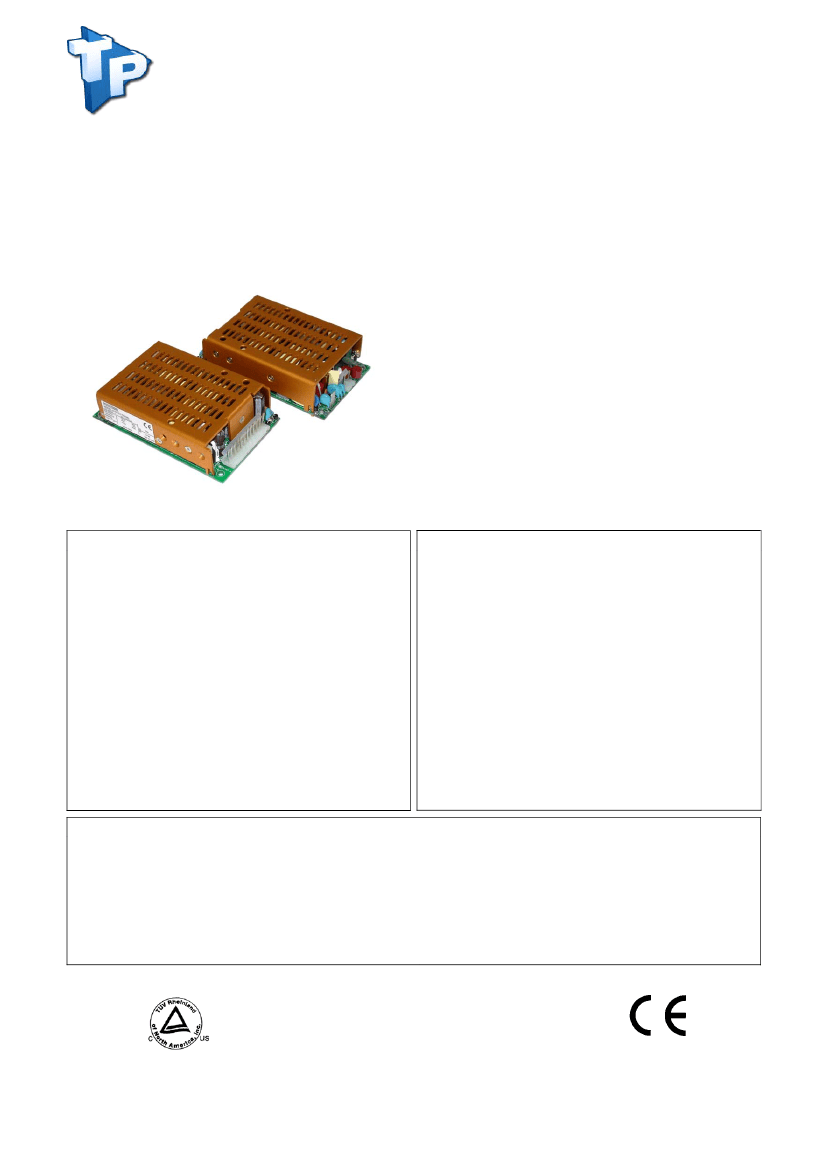

Total Power International, Inc.
UNIVERSAL INPUT HARMONIC CORRECTION
AC-DC MEDICAL AND IEC APPLICATION OPEN FRAME SINGLE &
MULTI-OUTPUT 150 WATTS INTERNAL SWITCHING POWER
SUPPLIES TPIMP151 SERIES
FEATURES:
5” X 3”* X 1.38” COMPACT SIZE
ACCOMMODATE UNIVERSAL AC SOURCES
MEET IEC 61000-3-2 HARMONIC
CORRECTION
MEET UNIVERSAL SAFETY STANDARDS
EMI MEET CISPR EN 55022/EN 55011 & FCC
CLASS B CONDUCTED
CE MARKING COMPLIANCE
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
Typ. 90-264Vac with PFC.
Input Connector:
V-M connector.
Input Frequency:
47-63Hz.
Inrush Current:
9.3-11.3Arms @230Vac.
Input Current:
Typ. 2.2A @115Vac, 0.9A @230Vac.
Dielectric Withstand:
Meet IEC 60950-1.
EMI:
Meet CISPR EN 55022 & FCC Class B conducted.
Meet CISPR EN 55011 & FCC Class B conducted.
Hold-up Time:
Typ. 90mS @115Vac & 230Vac.
Power Factor & Harmonic Correction:
Meet IEC 61000-3-2, PF typ. 0.99 @ full load.
Over Temperature Protection:
Installed.
Leakage Current:
0.40-0.50mA @230Vac touch current.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Connector:
V-M connector.
Output Wattage:
Max. 150 watts.
Line Regulation:
Typ. 1.0%.
Load Regulation:
Single O/P VO1 ±3.0%.
Dual O/P VO1 ±3.0% VO2 ±1.0%
Triple O/P VO1 ± 3.0% (± 8% for 3.3V), VO2/VO3 ±3.0%.
Quad O/P VO1/VO2/VO3/VO4 ±3.0%
Noise & Ripple:
Typ. 1.0-2.0% peak to peak.
OVP:
Built-in at VO1 and VO2.
Adjustability:
Available at VO1 and VO2.
Overload Protection (OLP):
Fully protected against output overload and short circuit.
OLP set at about 125-150% rating output wattage.
Consult the factory for OLP setting.
Operating Temperature:
0 to +50°C under 30 CFM
forced air cooling for full load.
Storage Temperature:
-20 to +85°C.
Temperature Coefficient:
Typ. 0.04% /°C.
Cooling:
Requested 30 CFM forced air flow for full load.
Construction:
U-bracket format.
Power Density:
6.52-7.24 Watts / Cubic Inch .
GENERAL SPECIFICATION
Efficiency:
Typ. 76-80% various with output.
Switching Frequency:
68K Hz.
Circuit Topology:
Single Fixed frequency forward circuit.
Dual/Triple/Quad: Fixed freq. flyback circuit.
Transient Response:
Output voltage returns in less than
14.8-25.2mS following a 25% load change.
Safety Standard:
IEC 60950-1 Class I for IEC use.
IEC 60601-1 Class I for Medical use.
Note: Due to requests in market and advances in technology, specifications subject to change without notification.
Total Power International, Inc. Toll Free: 877-646-0900(US) PH# 978-453-7272 www.total-power.com
Total Power International, Inc.
OUTPUT VOLTAGE / CURRENT RATINGS CHART
SINGLE OUTPUT
(Under air cooling)
MODEL NO.
MAIN VO1
★@
Typ.
Volt.
Max.
5V
12V
15V
24V
30A
12.5A
10.0A
6.3A
TPIMP151-S050270
27A
TPIMP151-S120125
12.5A
TPIMP151-S150100
10.0A
TPIMP151-S240063
6.3A
DUAL OUTPUT
(Under forced air cooling)
MODEL NO.
TPIMP151-D050I
TPIMP151-D050M
TPIMP151-D120I
TPIMP151-D150K
MAIN VO1
★@
Typ.
Volt.
Max.
15.00A
15.0A
6.25A
5.0A
+5V
+5V
+12V
+15V
15.00A
15.0A
6.25A
5.00A
AUX. VO2
★@
Typ.
Max.
Volt.
6.00A
3.00A
6.25A
5.00A
+12V
+24V
+12V
+15V
6.00A
3.00A
6.25A
5.00A
TRIPLE OUTPUT
(Under forced air cooling)
MODEL NO.
TPIMP151-T033EI
TPIMP151-T050II
TPIMP151-T050KK
MAIN VO1
★@
Typ.
Volt.
Max.
18A
15A
15A
+3.3V
+5.0V
+5.0V
20A
15A
15A
AUX. VO2
★@
Typ.
Max.
Volt.
13.5A
5.5A
4.5A
+5V
+12V
+15V
15A
5.5A
4.5A
AUX. VO3
●
Typ.
Volt.
Max.
0.8A
0.8A
0.5A
+12V
+12V
+15V
0.8A
0.8A
0.5A
QUAD OUTPUT
(Under forced air cooling)
MODEL NO.
MAIN VO1
★@
Typ.
Volt.
Max.
AUX. VO2
★@
Typ.
Max.
Volt.
AUX. VO3
●
Typ.
Volt.
Max.
-15V
0.8A
AUX. VO4
●
Typ.
Max.
Volt.
0.5A
-5V
0.5A
15A
15A
4A
4A
0.8A
TPIMP151-Q050KKE
+5V
+15V
Symbol:
"★" OVP built-in. "@" Adjustable. "
●
" Post –Regulated
Remark: Please refer to the derating chart depending on ambient temperature and fan cooling.

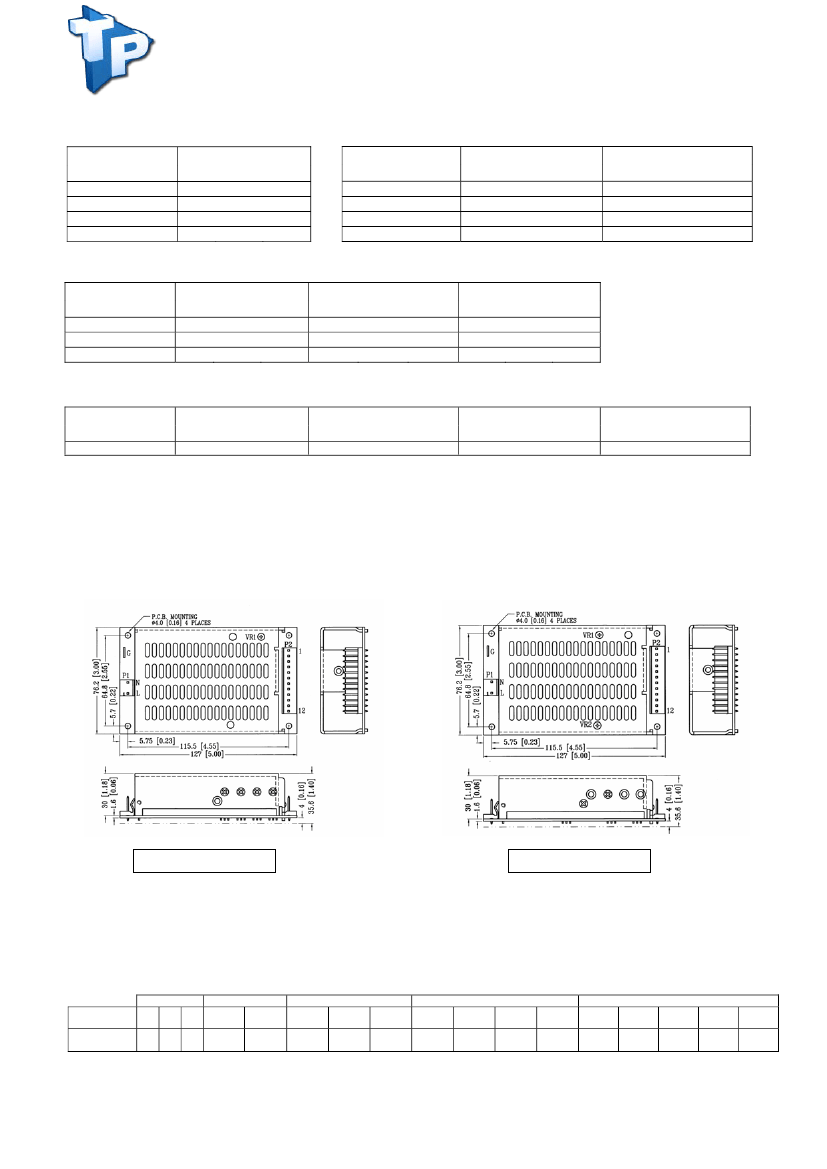

MECHANICAL DIMENSIONS:
MM [INCHES]
WEIGHT:
385.0g (13.4 Oz.)
SINGLE
DUAL/TRIPLE/QUAD
INPUT & OUTPUT CONNECTORS PIN ASSIGNMENT
AC INPUT
AC AC- AC-
ASSIGNMENT
-L
N
G
SINGLE O/P
VO1
DC-
COM
VO1
DUAL O/P
VO2
DC-
COM
VO1
TRIPLE O/P
VO2
VO3
DC-
COM
VO1
VO2
QUAD O/P
VO3
+VO4
DC COM
CNTR & PIN #
P1- P1- P1-
L
N
G
P2-1,2,
3,4,5,6
P2-7,8,9 P2-1,2,3,
P2-9,10
10,11,12
4
P2-5,
6,7,8
P2-1,2,
3,4
P2-9,10
P2-11
P2-5,
6,7,8
P2-1,
2,3,4
P2-9,10
P2-11
P2-12
P2-5,6,
7,8
Mating connector:
Moles 5195 or 5239 series.
Total Power International, Inc.

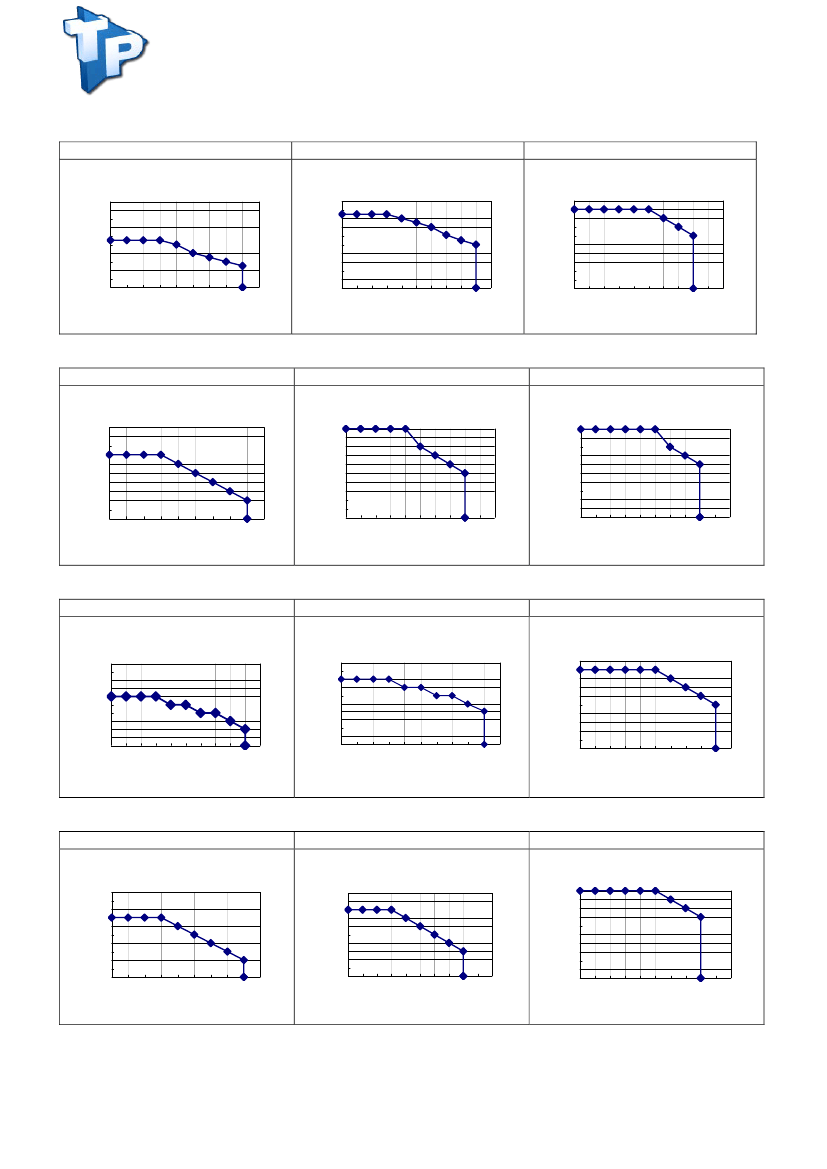

DERATING CHART
TPIMP151-S050270
Forced air cooling- 5CFM
Power derating
Forced air cooling- 20CFM
Power derating
Forced air cooling- 30CFM
Power derating
100
90
80
70
60
% 50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
deg C
100
90
80
70
60
%
50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90
100
100
90
80
70
60
%
50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90
100
TPIMP151-D050I
Forced air cooling- 5CFM
Power derating
Forced air cooling- 20CFM
Power derating
Forced air cooling- 23CFM
Power derating
100
90
80
70
60
%
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
deg C
100
90
80
70
60
%
50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90
100
100
90
80
70
60
%
50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90
100
TPIMP151-T033EI
Forced air cooling- 5CFM
Power derating
Forced air cooling- 20CFM
Power derating
Forced air cooling- 30CFM
Power derating
100
90
80
70
60
% 50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90 100
100
90
80
70
60
% 50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90
100
100
90
80
70
60
% 50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90 100
TPIMP151-Q050KKE
Forced air cooling- 5CFM
Power derating
Forced air cooling- 20CFM
Power derating
Forced air cooling- 26CFM
Power derating
100
90
80
70
60
% 50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
deg C
100
90
80
70
60
% 50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90 100
100
90
80
70
60
% 50
40
30
20
10
0
0
10
20
30
40
50
deg C
60
70
80
90 100
