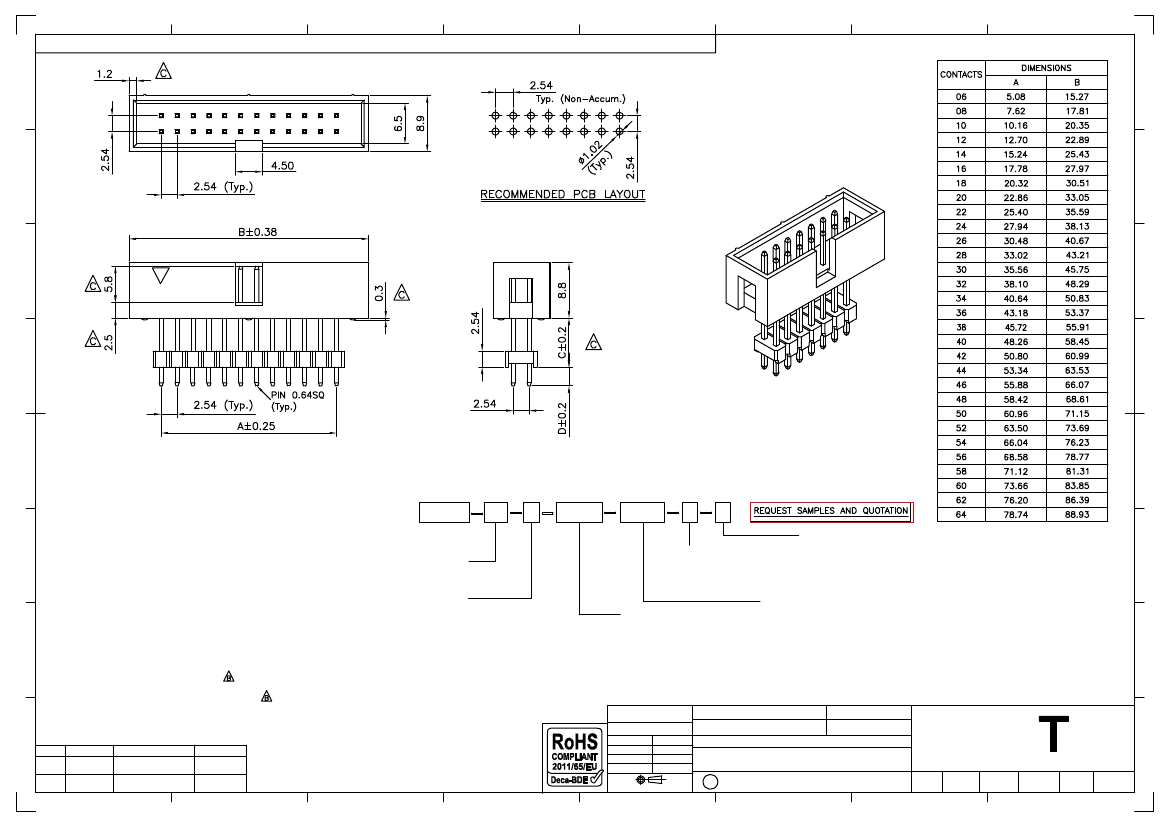

Global Connector Technology Ltd. - BG026: 2.54mm PITCH ELEVATED SHROUDED PIN HEADER, DUAL ROW, THROUGH HOLE, VERTICAL
A
6
7
8
A
B
B
C
C
D
D
E
SPECIFICATIONS
规格
CURRENT RATING
电流额定值
: 3 AMP
INSULATOR RESISTANCE
绝缘电阻值
: 1000 MΩ Min.
CONTACT RESISTANCE
接触电阻值
: 20mΩ Max.
DIELECTRIC WITHSTANDING
耐电压
: AC 600 V
OPERATING TEMPERATURE
工½温度
: -40°C TO +105°C
CONTACT MATERIAL
端子物料
: COPPER ALLOY
INSULATOR MATERIAL
绝缘½物料
:
STANDARD
标准物料
: POLYAMIDE
聚醯胺
, NYLON 6T, UL 94-V0
OPTIONS
可选物料
: POLYESTER
聚酯
, LCP, UL 94-V0
OR POLYESTER
聚酯
, PBT, UL94-V0
SOLDERING PROCESS
可焊性
:
NYLON 6T (STANDARD
标准物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 230°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
PBT (OPTION
可选物料
) - MANUAL SOLDER
人工焊接
: 330°C for 3-5 sec.
(NOT SUITABLE FOR HI-TEMP PROCESS
不适合高温处理
)
LCP (OPTION
可选物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 250°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BG215
BG216 - Allowing perfect polarisation
- Non-Polarised mating connections available - contact GCT for details
By
DETAIL
REV
DATE
BC
DRAWING
RELEASE
A
30/03/07
DR
ASE
E
Ordering Grid
BG026
No. of Contacts
06 to 64
XX
X
XXXX
XXXX
X
X
Packing Options
G = Plastic Box
(Standard)
D = Tube
F
G
Contact Plating
A = Gold Flash All Over
(Standard)
B = Selective Gold Flash Contact Area/
Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Insulator Material
N = Nylon 6T
(Standard)
P = PBT
L = LCP
Dimension D (1/100mm)
(Tail Length)
Dimension C (1/100mm)
0300 = 3.00mm
(Standard)
(Elevation height)
Or specify Dimension D
0750
=
7.50mm
(Standard)
e.g. 0250 = 2.50mm
Or specify Dimension C
e.g. 0250 = 2.50mm
F
G
Tolerances
(Except as noted)
Part Number:-
Date:-
Dimensions in mm
X. ± 0.30
X.X ± 0.20
X.XX ± 0.15
X.XXX ± 0.10
X.°±5°
.X°±2°
.XX°±1°
.XXX°±0.5°
BG026
Description:-
30 MAR 07
H
1
CHANGE TO SOLDER ADDITIONAL
TEMP. INFORMATION DIMS. ADDED
B
C
05/08/09
03/10/11
2.54mm PITCH ELEVATED SHROUDED PIN HEADER,
DUAL ROW, THROUGH HOLE, VERTICAL
GC
Scale
NTS
H
Sheet No.
E & OE
1/1
www.gct.co
Drawn by
BC
2
3
4
Third Angle Projection
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
C
Material
See Note
5
6
7
8
