MVE160VE100ML22TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> MVE160VE100ML22TR

Preview

MVE160VE100ML22TR: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 6767, CHIP; CategoryPassive components capacitor; File Size61KB，2 Pages; ManufacturerNIPPON CHEMI-CON; Websitehttp://www.chemi-con.co.jp

Download Datasheet Parametric View All

MVE160VE100ML22TR Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 6767, CHIP

MVE160VE100ML22TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2008481769
package instruction	, 6767
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SOLVENT PROOF
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.74 mA
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	160 V
ripple current	380 mA
size code	6767
surface mount	YES
Delta tangent	0.15
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT

Preview

Download Datasheet

View All

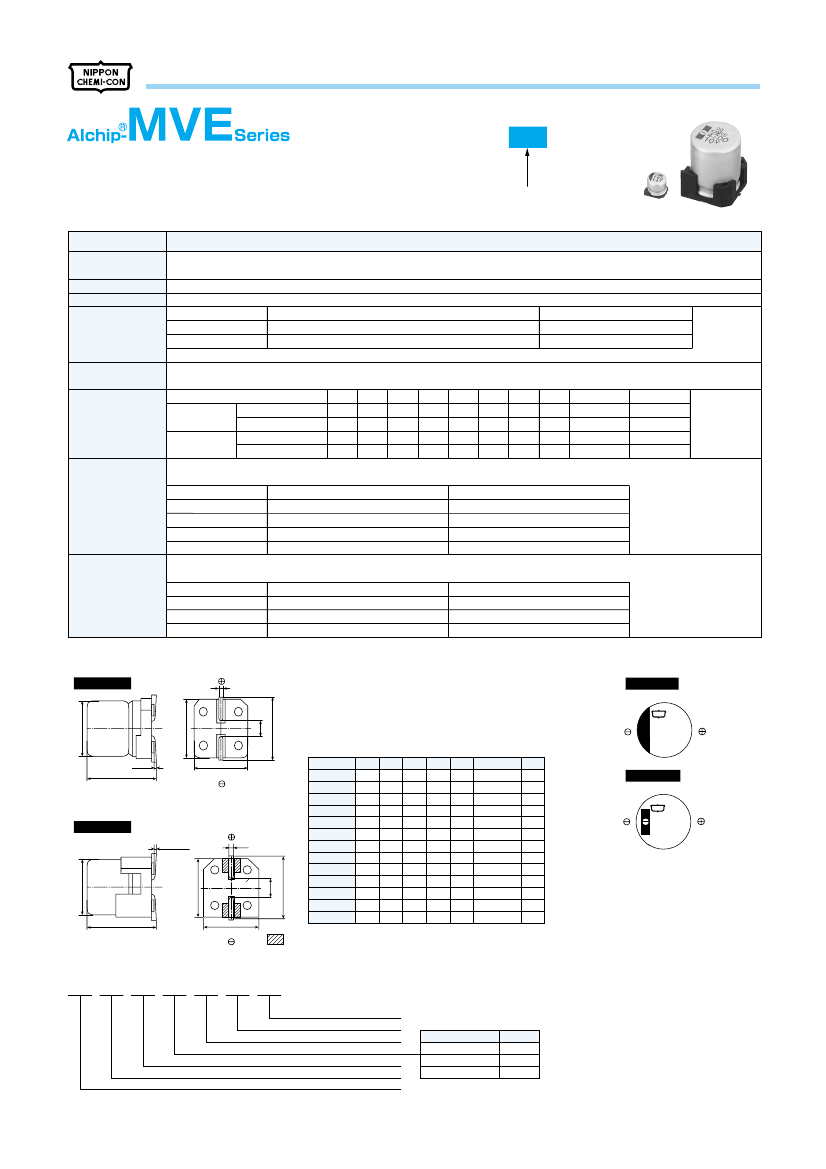

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS

Downsized, 105C

MVE

@Rated

voltage range : 6.3 to 450V, capacitance range : 0.47 to 6800MF

@Endurance

: 1000 to 2000 hours at 105C

@Case

size range :

F4B5.5

to

F18B21.5

@Solvent-proof

type except 100 to 450V

dc

(see PRECAUTIONS AND GUIDELINES)

downsized

size extended

MVK

?SPECIFICATIONS

Items

Category

Temperature Range

Rated Voltage Range

Capacitance Tolerance

Leakage Current

-40 to +105C

6.3 to 450V

dc

P20%(M)

Rated voltage(V

dc

)

6.3 to 100V

160 to 450V

D55 to J10

I=0.01CV or 3MA, whichever is greater (2 minutes)

-

K14 to M22

I=0.03CV or 4MA, whichever is greater (1 minute)

I=0.04CV+100MA (1minute)

Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)

See STANDARD RATINGS

Characteristics

(20C, 120Hz)

(20C)

Dissipation Factor

(tane)

Low Temperature

Characteristics

(Max. Impedance Ratio)

Endurance

Shelf Life

(20C, 120Hz)

Rated voltage (V

dc

)

6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 to 450V

Z(-25C)/Z(+20C)

2

3

4

3

-

D55 to J10

Z(-40C)/Z(+20C)

3

4

6

8

12

4

-

Z(-25C)/Z(+20C)

2

3

4

5

2

3

6

K14 to M22

Z(-40C)/Z(+20C)

(120Hz)

3

4

6

8

10

3

6

10

The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the specified

period of time at 105C.

Case code

D55 to F80

H10 to M22

2000 hours

Time

1000 hours

[P20%

of the initial value

Capacitance change

[P30%

of the initial value

[200%

of the initial specified value

D.F. (tanE)

[300%

of the initial specified value

[The

initial specified value

Leakage current

[The

initial specified value

The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1000 hours (500 hours

for B55 to F80 size) at 105C without voltage applied.

H10 to H22

Case code

D55 to F80

Capacitance change

[P25%

of the initial value

[P20%

of the initial value

D.F. (tanE)

[200%

of the initial specified value

[200%

of the initial specified value

Leakage current

[The

initial specified value

[The

initial specified value

?DIMENSIONS

(Terminal Type=VC or VE) [mm]

D55 to K16

(VC)

W

?MARKING

D55 to J10

Ex)16V22MF

FDP0.5

P

CP0.2

BP0.2

7hE

22

16V

Case code

D55

E55

F55

F60

F80

H10

J10

K14

K16

L17

L22

M17

M22

D

4

5

6.3

8

10

12.5

16

18

L

5.2

5.7

7.7

10.0

13.5

16.0

16.5

21.5

16.5

21.5

A

4.3

5.3

6.6

8.3

10.3

13.0

17.0

19.0

B

4.3

5.3

6.6

8.3

10.3

13.0

17.0

19.0

C

5.1

5.9

7.2

9.0

11.0

13.7

18.0

20.0

W

0.5 to 0.8

0.7 to 1.1

1.0 to 1.3

P

1.0

1.4

1.9

3.1

4.5

4.2

6.5

0.3max.

LP0.3 (Note)

AP0.2

K14 to M22

Ex)25V1000MF

0V

MVE

Note : LP0.5 for H10, J10, K14 and K16

L17 to M22

(VE : with dummy terminals)

0.3max.

W

1000

25V

FDP0.5

BP0.2

LP0.5

AP0.2

P

CP0.2

: Dummy terminals

?PART

NUMBERING SYSTEM

MVE

50

VC

220

M

J10

Tray code (TR : If necessary)

Case code

Cap tolerance (P20%)

Nominal cap code

Terminal type (VC or VE)

Rated voltage in volts

Series name

Capacitance

10MF

100MF

1000MF

Code

10

100

1000

(1/2)

CAT. No. E1001D
