1. Introduction

The Si3402 is designed to support up to 20 W of input power with over 15 W of power delivered to the load. For this

reason, the standard reference designs have been optimized for high-power situations.

The IEEE standard for PoE (802.3 clause 33) specifies the PD classes as listed in Table 1.

THE

Si3402

Table 1. PD Classes

PD Classification

Class 0 or Class 3

Class 1

Class 2

Class 4

Input Power Maximum

13 W

3.84 W

6.49 W

25.5 W

Output Power Allowing for 80%

Conversion Efficiency

10.4 W

3.07 W

5.19 W

20.4 W

Even the 3 W of output power that can realistically be derived from a Class 1 interface is adequate for many

applications. This application note shows how the standard reference design is modified and simplified to support

lower power situations.

2. Optimized Reference Designs

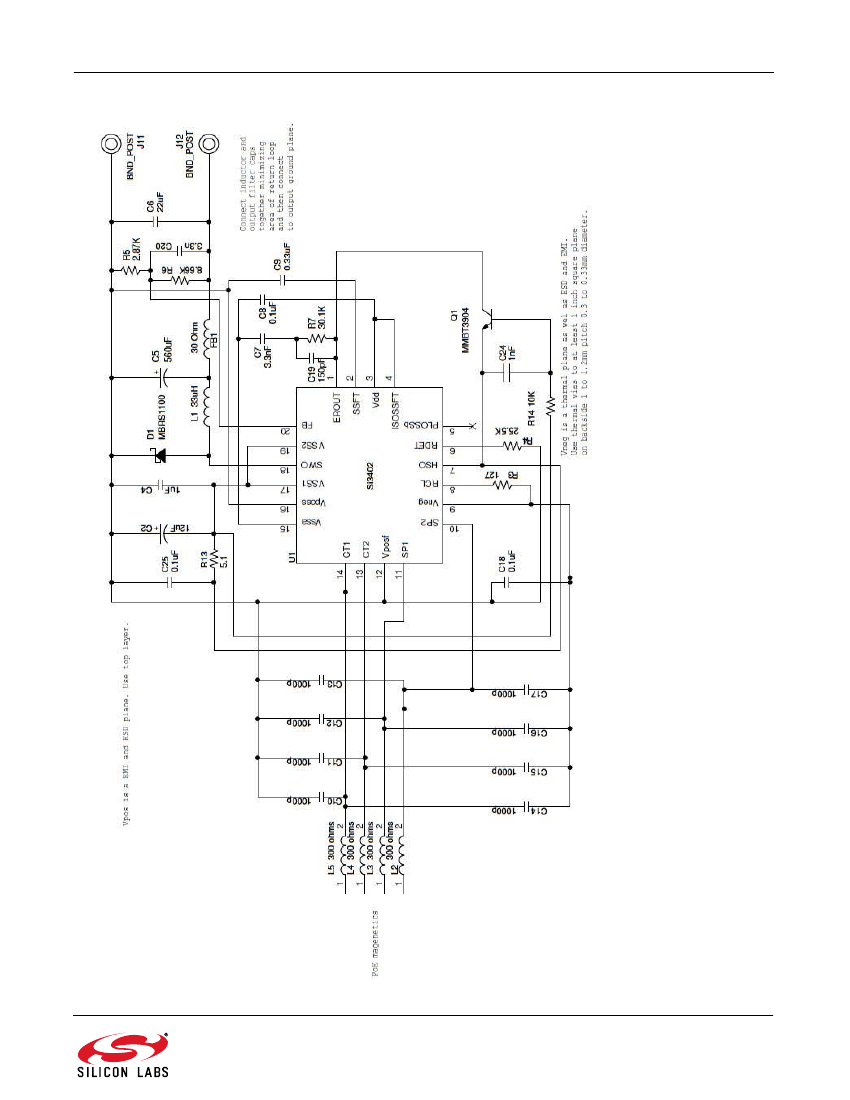

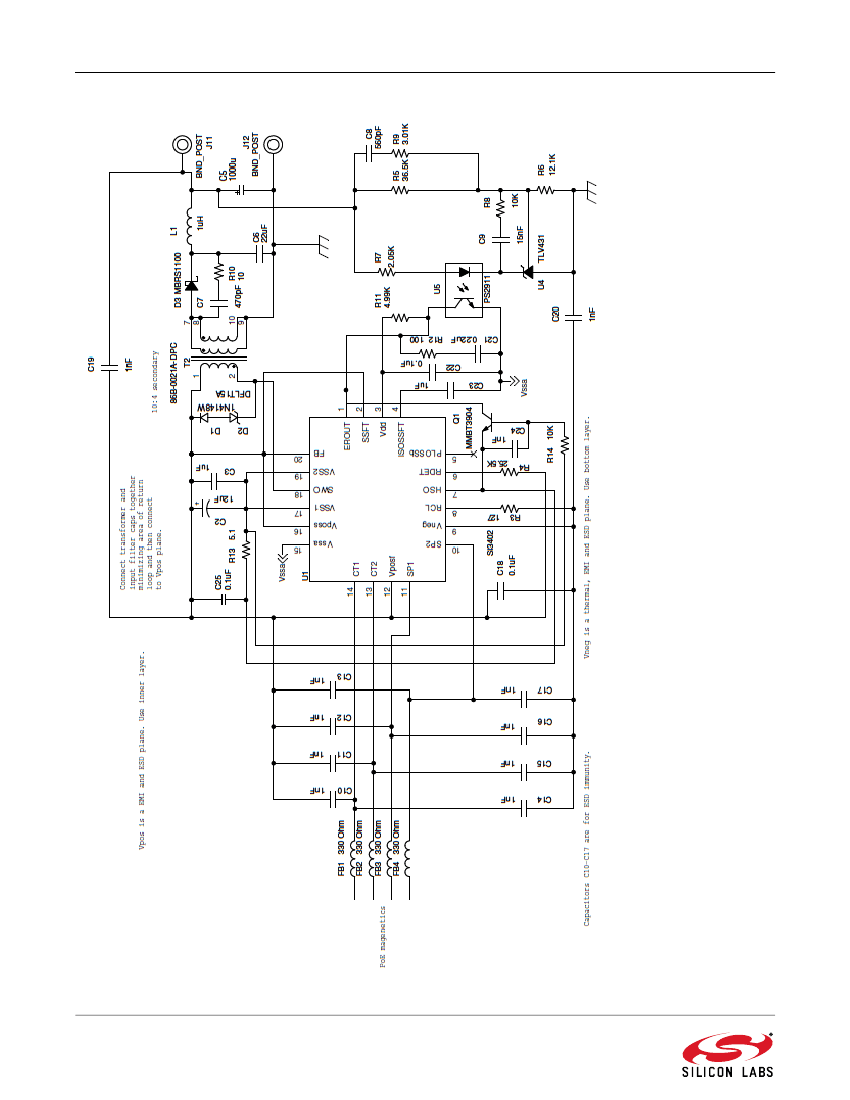

Figure 1 shows the completed schematic of the Class 1 reference design for the isolated case, and Figure 2 shows

the reference design for the non-isolated case. Tables 2 and 3 are the bills of materials corresponding to Figures 1

and 2.
