FR1205(F)CT THRU FR12100(F)CT SPECIFICATION
12A FAST RECOVERY RECTIFIERS
Rev. A
PRODUCT FEATURES
1.
2.
3.
4.
5.
6.

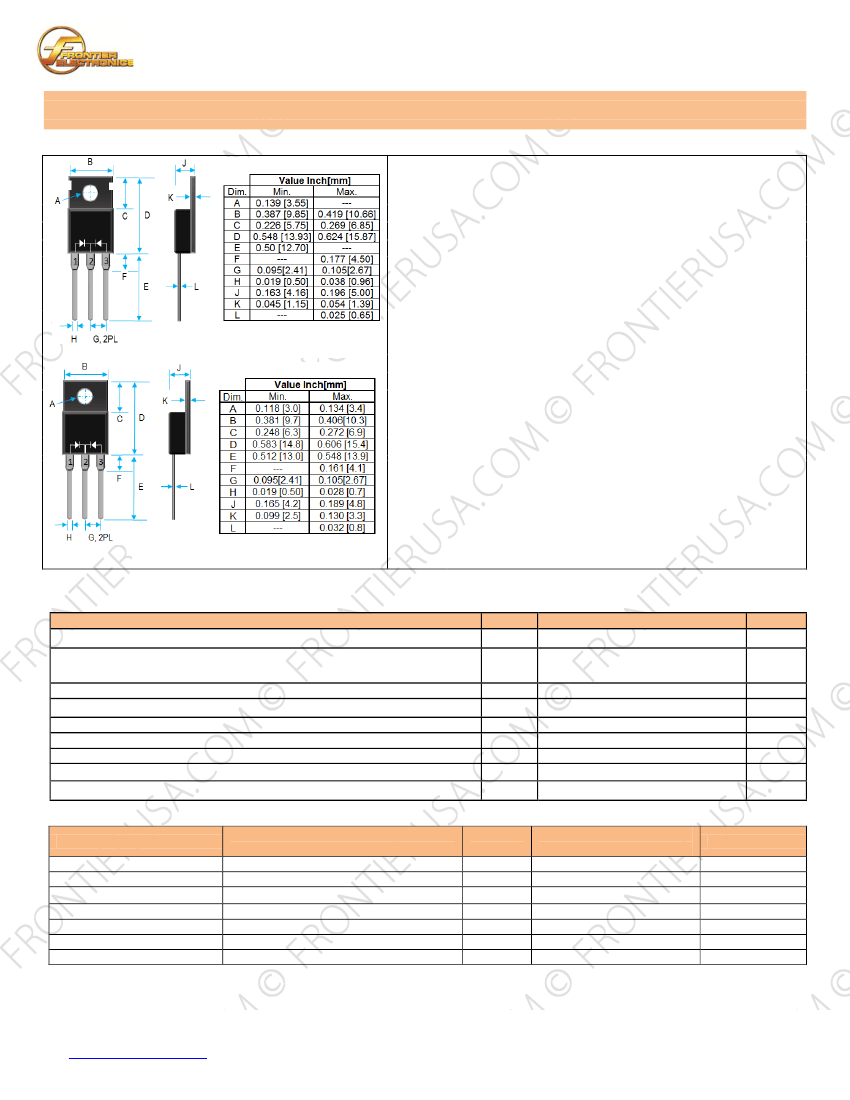

Fig 1. TO-220AB FOR FR12xxxCT
7.
8.
9.
10.
FLAMMABILITY CLASSIFICATION 94V-0
LOW FORWARD VOLTAGE V
F
FAST RECOVERY TIME
LOW THERMAL RESISTANCE/HIGH VOLTAGE
GLASS PASSIVATED CHIP JUNCTION
CASE: TRANSFER MOLDED
TO-220AB FOR FR1205CT THRU FR12100CT
ITO-220AB FOR FR1205FCT THRU FR12100FCT
DIMENSIONS IN INCHES AND (MILLIMETERS)
LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208
WEIGHT: 2.1 GRAMS (TO-220AB)
1.7 GRAMS (ITO-220AB)
RoHS COMPLIANT/HALOGEN FREE
Fig 2. ITO-220AB FOR FR12xxxFCT
ELECTRICAL CHARACTERISTICS
MAXIMUM RATINGS (T
A
=25°C UNLESS OTHERWISE NOTED ) AND ELECTRICAL CHARACTERISTICS
RATING
SYMBOL
I
O
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT, SEE FIG.1
12 (PER V
DEVICE)
A
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
I
FSM
L
100
SINE-WAVE SUPERIMPOSED ON RATED LOAD
U
TYPICAL JUNCTION CAPACITANCE @1MHz & REVERSE VOLTAGE 4V
C
J
55 E
Rθjc
TYPICAL THERMAL RESISTANCE, JUNCTION TO CASE ON HEAT SINK
2.2 (PER LEG)
STORAGE TEMPERATURE RANGE
T
STG
- 55 TO +175
T
OP
OPERATING TEMPERATURE RANGE
- 55 TO +150
MAXIMUM FORWARD VOLTAGE AT 6A PER LEG
V
F
1.3
T
J
=125°C
MAXIMUM REVERSE CURRENT AT 25°C
I
R
10
I
F
= 30A T
J
= 25°C
MAXIMUM REVERSE CURRENT AT 125°C
I
R
500
T
J
=125°C
PART NUMBER
FR1205CT/FR1205FCT
FR1210CT/FR1210FCT
FR1220CT/FR1220FCT
FR1240CT/FR1240FCT
FR1260CT/FR1260FCT
FR1280CT/FR1280FCT
FR12100CT/FR12100FCT
MAX RECURRENT PK REVERSE
VOLTAGE/DC BLOCKING V
RRM
/V
R
(V)
50
100
200
400
600
800
1000
MAX
V
RMS
(V)
35
70
140
280
420
560
700
MAX REVERSE
RECOVERY TIME T
RR
(nS)
150
150
150
150
250
500
500
UNITS
A
A
pF
°C/W
°C
°C
V
µA
µA
MARKING
SAME AS P/N
SAME AS P/N
SAME AS P/N
SAME AS P/N
SAME AS P/N
SAME AS P/N
SAME AS P/N
NOTE︰ 1. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
2. CURRENT RATING IS BASED ON SINGLE PHASE, 1/2 WAVE, 60HZ, RESISTIVE, OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD,
DERATE CURRENT BY 20%
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
FR1205(F)CT THRU FR12100(F)CT SPECIFICATION

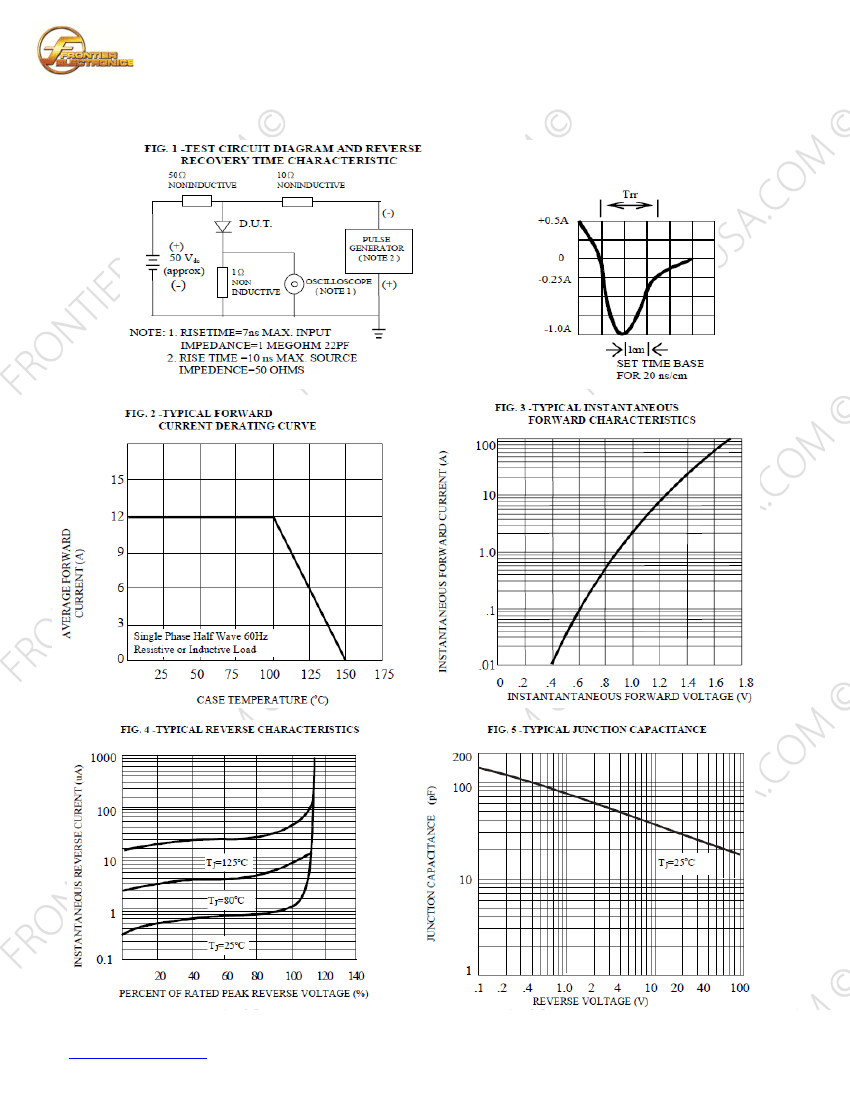

RATINGS AND CHARACTERISTIC CURVES
Rev. A
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
