FR151G THRU FR157G SPECIFICATIONS
Rev. A
1.5A FAST RECOVERY GLASS PASSIVATED RECTIFIER
PRODUCT FEATURES
1.
2.
3.
4.
5.
6.
7.
8.
9.
FLAMMABILITY CLASSIFICATION: 94V-0
GLASS PASSIVATED CHIP JUNCTION
HIGH SURGE CURRENT CAPABILITY
CASE: TRANSFER MOLDED, DO-15

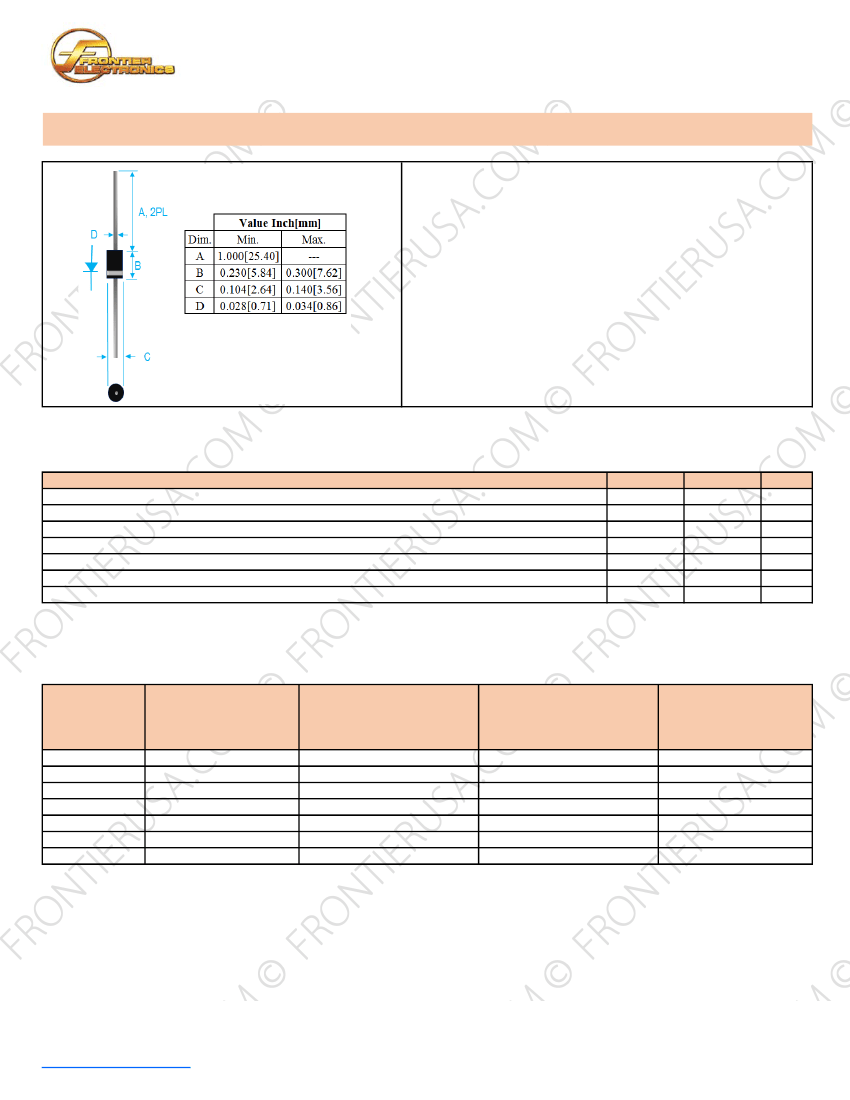

DIMENSIONS IN INCHES AND (MILLIMETERS)
POLARITY: INDICATED BY CATHODE BAND
WEIGHT : 0.4 GRAMS
TERMINAL SOLDERABILITY: PER MIL-STD-202, METHOD 208
RoHS
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE
SPECIFIED. STORAGE AND OPERATING TEMPERATURE RANGE -55°C TO +150°C. SINGLE PHASE, HALF WAVE, 60 HZ,
RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%.
RATINGS
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT, 0.375”(9.5mm) LEAD LENGTH @ 55°C
PEAK FWD SURGE CURRENT, 8.3ms HALF SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE(NOTE1)
TYPICAL THERMAL RESISTANCE (NOTE 2)
MAXIMUM FORWARD VOLTAGE
MAXIMUM REVERSE CURRENT @ 25°C
MAXIMUM REVERSE CURRENT @ 100°C
1. MEASURED @ 1.0 MHZ AND APPLIED REVERSE VOLTAGE OF 4.0 V
2. BOTH LEADS ATTATCHED TO HEATSINK 20×20×1 (mm) COPPER PLATE AT LEAD LENTH 5mm
3. REVERSE RECOVERY TEST CONDITIONS: IF=0.5A, IR=1.0A, IRR=0.25A
4. MAXIMUM FORWARD VOLTAGE AT Io DC
SYMBOL
I
O
I
FSM
C
J
R
θja
V
F
I
R
I
R
VALUE
1.5
50
25
40
1.3
5
50
UNITS
A
A
pF
°C/W
V
uA
uA
PART NUMBER
FR151G
FR152G
FR153G
FR154G
FR155G
FR156G
FR157G
MAX RECURRENT PK
MAX RMS VOLTAGE V
RMS
(V)
REV VOLTAGE V
RRM
(V)
50
100
200
400
600
800
1000
35
70
140
280
420
560
700
MAX DC BLOCKING
VOLTAGE V
DC
(V)
50
100
200
400
600
800
1000
MAX REV RECOVERY
TIME T
RR
(nS)
150
150
150
150
250
500
500
Frontier Electronics Corp.®
http://frontierusa.com/
1
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
FR151G THRU FR157G SPECIFICATIONS

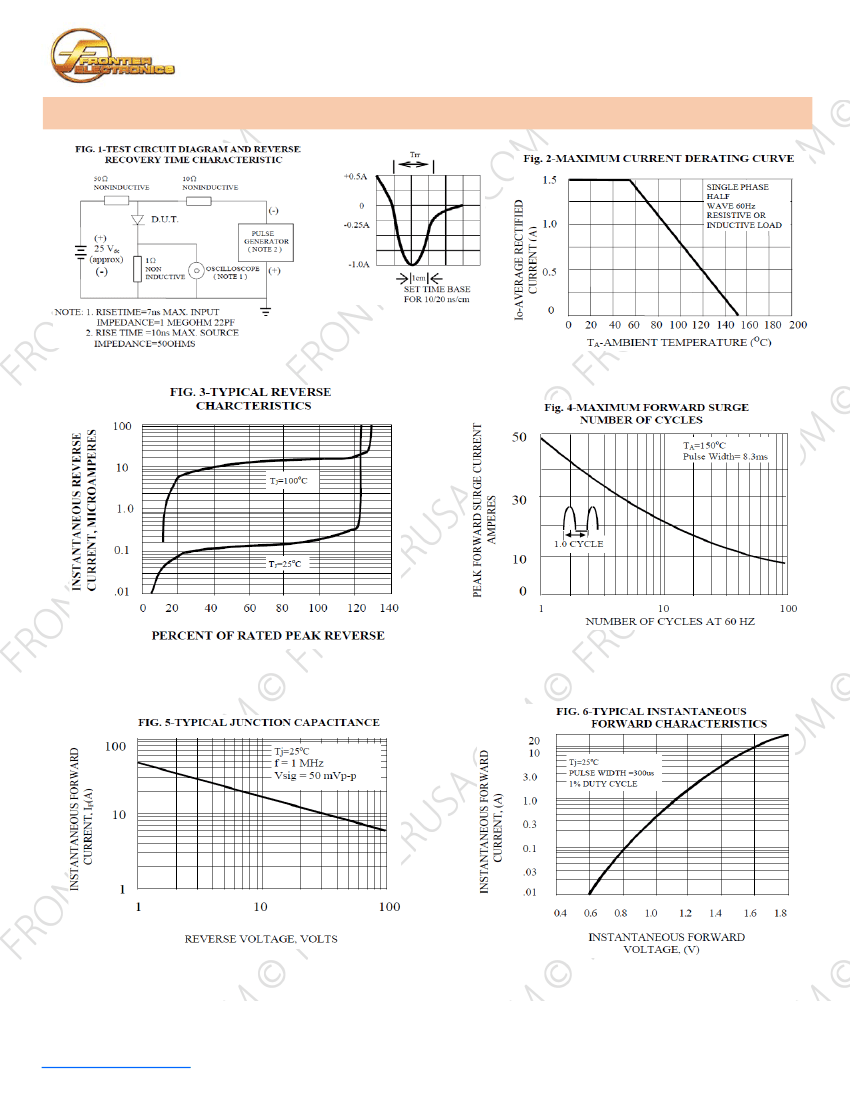

RATING AND CHARACTERISTIC CURVES
