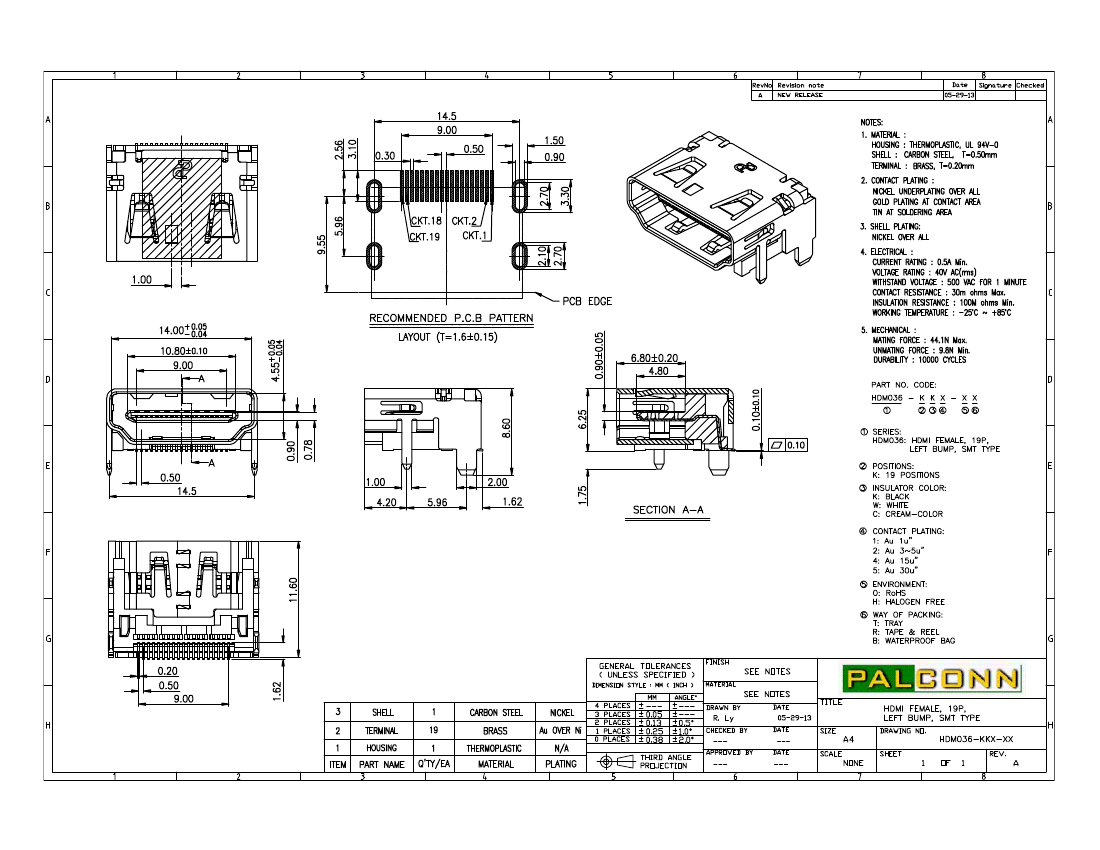

HDM036-KK2-HR

Description
USB Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug
CategoryThe connector    The connector
File Size150KB,1 Pages
ManufacturerPalPilot
Download Datasheet Parametric View All

HDM036-KK2-HR Overview

USB Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug

HDM036-KK2-HR Parametric

Parameter NameAttribute value
Objectid306448481
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsLOCATING POSTS
body width0.246 inch
subject depth0.457 inch
body length0.571 inch
Body/casing typePLUG
Connector typeUSB CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialBRASS
Contact resistance30 mΩ
Contact styleUSB, SER A FLAT
Dielectric withstand voltage500VAC V
Durability10000 Cycles
Insulation resistance100000000 Ω
insulator materialTHERMOPLASTIC
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of ports1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialCARBON STEEL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts19
