CERAMIC CAPACITORS
CP Series
Taping : dimensions
High Power

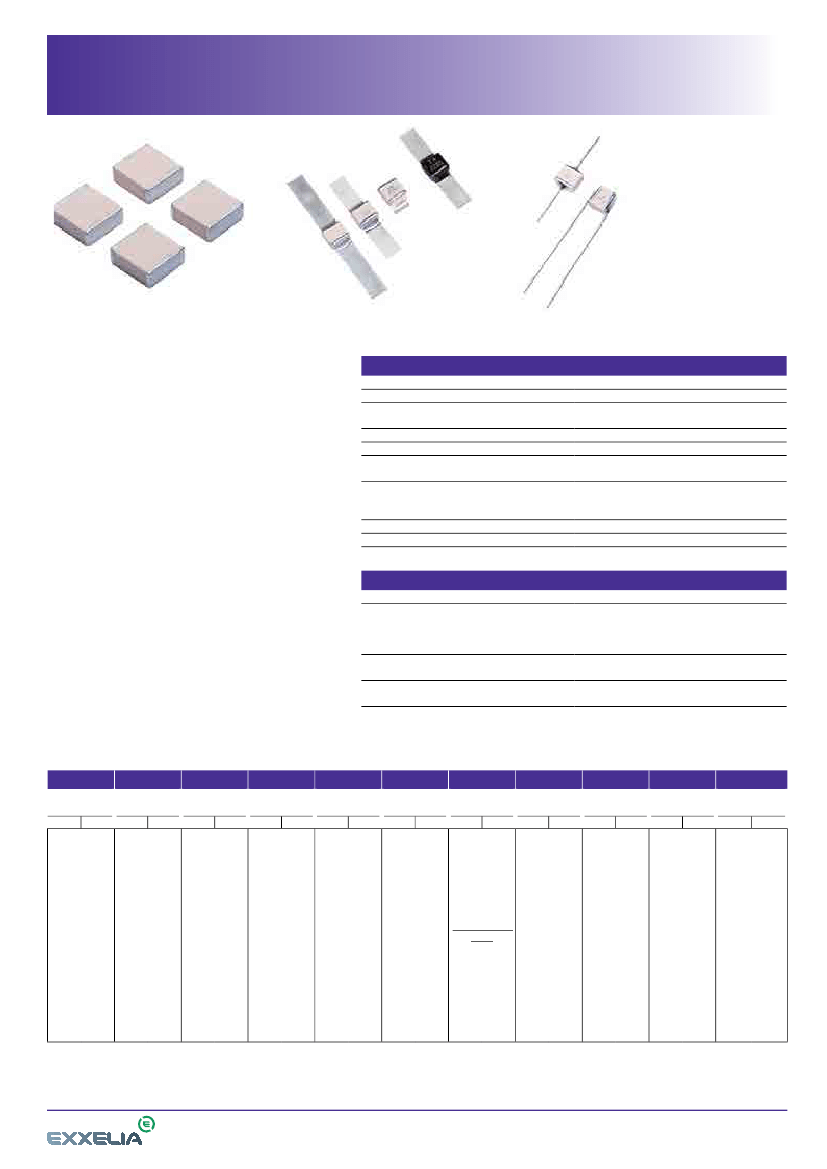

FEATURES
• Low ESR/ESL, RF power capacitors
• Porcelain capacitors P100, RoHS compliant
• Excellent characteristics in current, voltage and power
with high Q factor
• Working voltage: 200V - 7,000V
• Sizes: 2225 and 4040
• Capacitance range: 1pF - 10,000pF
• Laser Marked (optional)
ELECTRICAL AND ENVIRONMENTAL SPECIFICATIONS
Electrical specifications
Parameter
Capacitance
Tolerances
Working voltage (WVDC)
Temperature coefficient
Insulation Resistance
Dielectric Withstanding
(test voltage applied for 5 seconds)
Aging
Piezo Effect
Value
1pF - 10,000pF
B, C, D below 10pF
F, G, J, K above 10pF
See capacitance range chart
(100 ± 30) ppm/°C, –55°C to +125°C
10
5
MΩ min @ 25°C @ rated WVDC
10
4
MΩ min @ 125°C @ rated WVDC
2 x WVDC for WVDC ≤ 500V
1.5 x WVDC for 500V < WVDC ≤ 2,500V
1.3 x WVDC for WVDC > 2,500V
none
none
APPLICATIONS
• RF Power Amplifiers
• Industrial (Plasma Chamber)
• Medical (MRI Coils)
CIRCUIT APPLICATIONS
• DC Blocking
• Matching Networks
• Tuning and Coupling
Parameter
Life Test
Environmental specifications
Value
2,000 hours, +125°C
@ 1.5 x WVDC (WVDC ≤ 500V)
@ 1.3 x WVDC (500V < WVDC < 1,250V)
@ 1 x WVDC (1,250V ≤ WVDC)
240 hours, 85% relative humidity @ 85°C
(ESA/SCC n°3009)
56 days, 93% relative humidity @ 40°C
0V, 5V, WVDC or 500V whichever is less
PHYSICAL CHARACTERISTICS
• Chip capacitors for surface mounting with Nickel barrier
and tinning or Copper barrier and tinning (non magnetic)
• Ribbon leads for surface mounting, axial or radial leads
for through-hole circuits
Moisture Resistance Test 1
Moisture Resistance Test 2
HOW TO ORDER
362
Voltage code
201
= 200V
301
= 300V
501
= 500V
102
= 1,000V
122
= 1,200V
152
= 1,500V
162
= 1,600V
252
= 2,500V
362
= 3,600V
502
= 5,000V
702
= 7,000V
Please refer to
voltage given in
capacitance range
chart
CP
Dielectric
CP
= (100±30)
ppm/°C
X
Size code
X
= 2225
E
= 4040
100
Capacitance
code
Please refer to
Cap.
Code given in
capacitance range
chart
G
Tolerance code
B
= ±0.1pF
C
= ±0.25pF
D
= ±0.5pF
F
= ±1%
G
= ±2%
J
= ±5%
K
= ±10%
See note 1
C
Termination
code
1
Lead /
Ribbon code
-
Coating code
-:
no coating
H
= coating
requested
L
Marking code
-:
no marking
L
= laser marking
E
Tape and reel
-:
no tape and reel
E
= horizontal
orientation
CPX: 500 compo-
nents per reel
CPE: 500 or 700
components per
reel
X
= verticale
orientation, only
available on CPE,
350 components
per reel
The RoHS tag
is not
part of the
reference
Tag added
at the end
of P/N for
information
-RoHS
S
= Standard:
-:
no lead or ribbon
tin-plated nickel
1
= Micro-strip
ribbons, RoHS
C
= Non-magnetic:
6
= Radial leads,
tin-plated copper
non RoHS
7
= Axial leads,
See note 2
non RoHS
Available on size
4040:
1S
= Short micro-
strip ribbons,
RoHS
2
= Axial ribbons,
RoHS
3
= Radial ribbons,
RoHS
See note 3
Note 1: For capacitance values less than 10pF, tolerances B, C and D available. For capacitance values equal to or higher than 10pF, tolerances F, G, J and K available.
Note 2: All terminations are backward compatible and lead-free. The non-magnetic terminations are all Magnetism-free Rated.
Note 3: when coding ribbons or leads for the description of the part, the termination has to be mentioned for MRcertified types to ensure that only non-magnetic materials.
Examples: 362 CPE 470 J1L any termination material could be used. 362 CPE 470 JC1L only non-magnetic termination materials could be used.
Please consult us for specific requirements.
www.exxelia.com
136
info@exxelia.com
Page revised 09/17

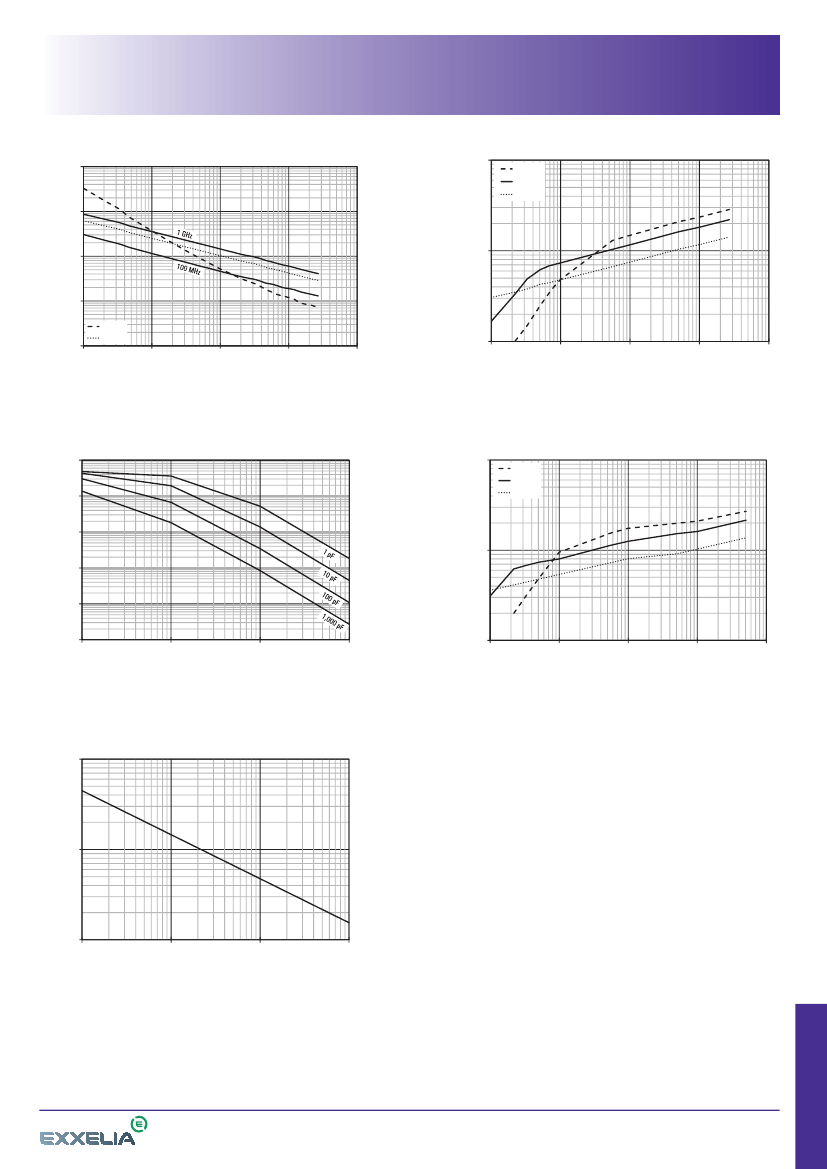

CERAMIC CAPACITORS
CP Series
Taping : dimensions

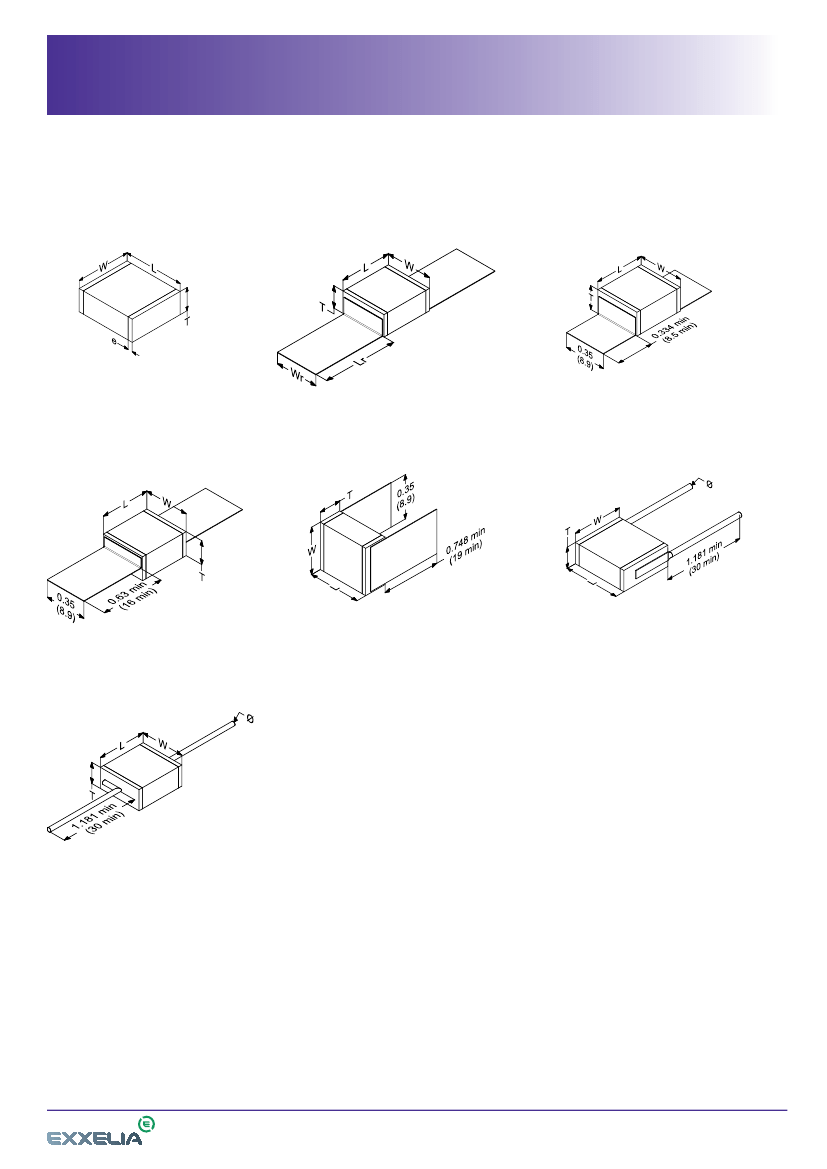

DIMENSIONS in inches (mm)
