M83723/97N-22-19S7 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83723/97N-22-19S7

M83723/97N-22-19S7: DescriptionMIL Series Connector, 19 Contact(s), Steel, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerHiRel Connectors Inc; Websitehttps://hirelco.net

Download Datasheet Parametric View All

M83723/97N-22-19S7 Overview

MIL Series Connector, 19 Contact(s), Steel, Female, Crimp Terminal, Plug

M83723/97N-22-19S7 Parametric

Parameter Name	Attribute value
Objectid	1574368063
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-83723, COMPATIBLE CONTACT: M39029/5-116
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M83723/97
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	STEEL
Housing size	22
Termination type	CRIMP
Total number of contacts	19

Preview

Download Datasheet

View All

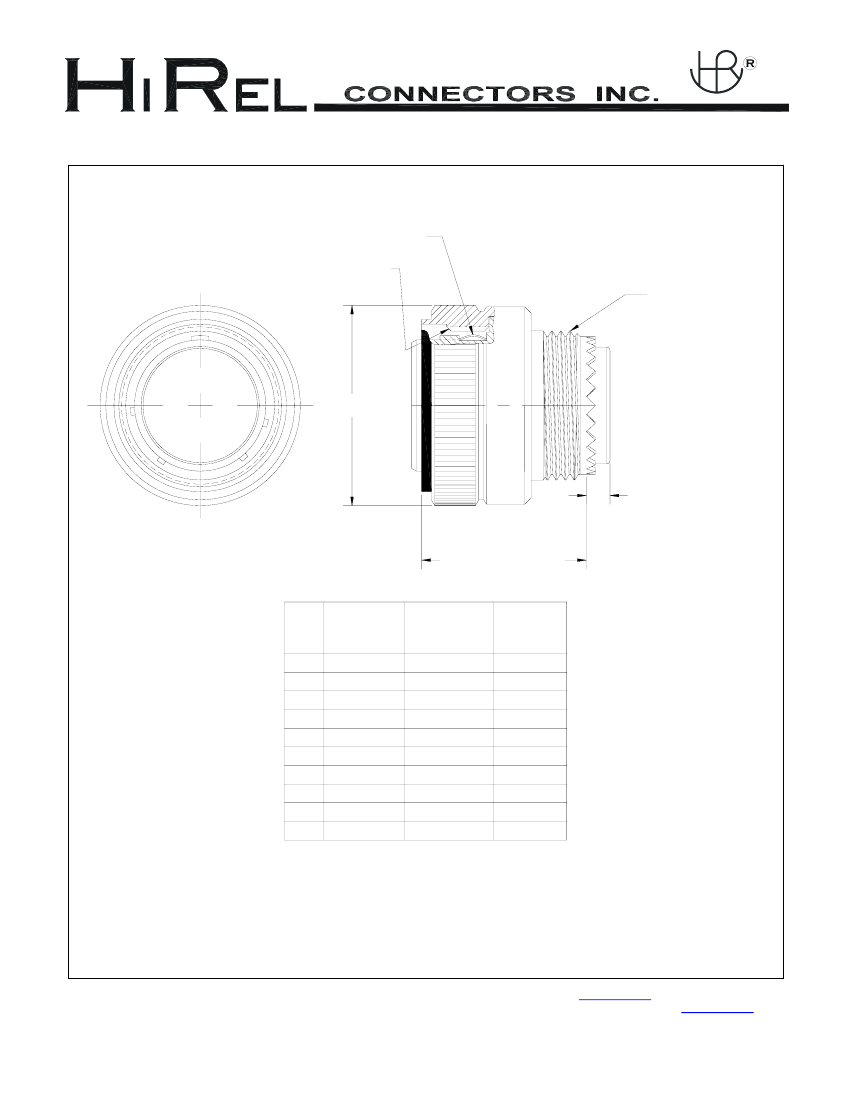

M83723/97

Environment Resisting Plug with RFI Spring Fingers (Socket)

MIL-DTL-83723

Series III – Threaded Coupling

GROUND SPRING

A Thd

<1>

Acc Thd

ØM

.160/.010 [4.06/0.25]

1.280 [32.51] MAX

SHELL

SIZE

<2>

A Thd Acc Thd

CLASS 2B

.562-24 UNEF

.688-24 UNEF

.875-20 UNEF

.938-20 UNEF

1.062-18 UNEF

1.188-18 UNEF

1.312-18 UNEF

1.438-18 UNEF

1.562-18 UNEF

1.812-16 UN

CLASS 2A

.500-20 UNF

.625-24 UNEF

.750-20 UNEF

.875-20 UNEF

1.000-20 UNEF

1.062-18 UNEF

1.188-18 UNEF

1.312-18 UNEF

1.438-18 UNEF

1.750-18 UNS

MAX

.967 [24.56]

1.093 [27.76]

1.170 [29.71]

1.310 [33.27]

1.500 [38.10]

1.562 [39.67]

1.710 [43.43]

1.812 [46.02]

1.948 [49.48]

2.175 [55.24]

<1> HIRELCO HAS INCORPORATED A PATENTED SELF-LOCKING MECHANISM INTO OUR

PLUGS THAT HAVE PROVEN TO STAY LOCKED UNDER EXTREME VIBRATION

<2> CONNECTOR SIZE NOT PER M83723

DIMENSIONS ARE IN INCHES [MILLIMETERS], TOLERANCE UNLESS OTHERWISE NOTED IS ±.005 [0.13]
