LPC-B10MY2G: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

LPC-B10MY2G Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

LPC-B10MY2G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1939856715
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	NONE
body width	0.213 inch
subject depth	0.417 inch
body length	0.799 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (8)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.4958 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

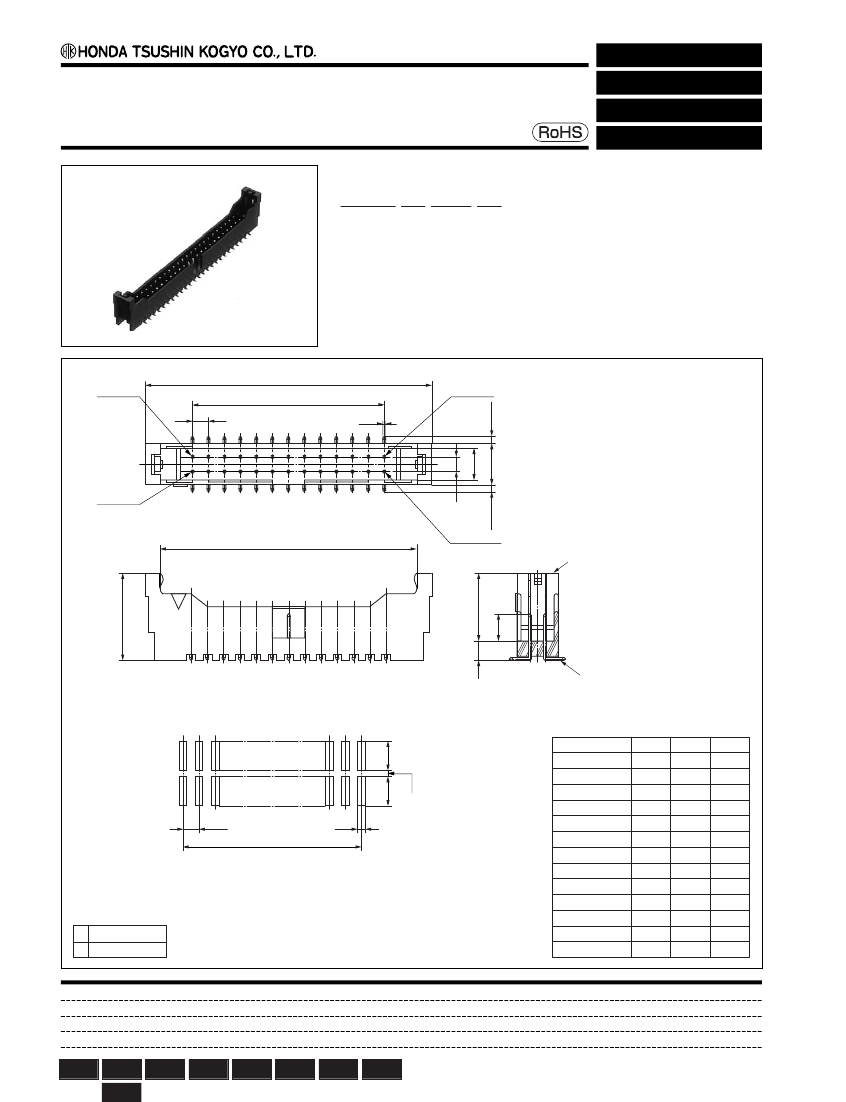

2 mm pitch connector

Straight SMT type male connector for PCB

LPC-B( )MY2( )

●

Configuration of product Part No.

For PCB

Straight SMT

LPC-B ( ) MY2 ( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 10, 12, 14, 16, 20, 22, 24, 26, 30, 36, 40, 44 or 50

➂

Straight SMT type, male connector

➃

Contact plating

G : Contact area 0.2μm Gold plate

G2: Contact area 0.05μm Gold plate

POS.#2

1 REF.

4.2

POS.#1

POS.#n-1

1 REF.

5.4

œ0.5

POS.#n

10.6 REF.

8.6

3.5

™

●

Dimensions

Part No.

LPC-B10MY2( )

LPC-B12MY2( )

LPC-B14MY2( )

LPC-B16MY2( )

LPC-B20MY2( )

LPC-B22MY2( )

LPC-B24MY2( )

LPC-B26MY2( )

LPC-B30MY2( )

LPC-B36MY2( )

LPC-B40MY2( )

LPC-B44MY2( )

LPC-B50MY2( )

16.15

18.15

20.15

22.15

26.15

28.15

30.15

32.15

36.15

42.15

46.15

50.15

56.15

20.3

22.3

24.3

26.3

30.3

32.3

34.3

36.3

40.3

46.3

50.3

54.3

60.3

3.7

±0.05

±0.1

Recommended PCB layout

●

Components

➀

Insulator

➁

Contacts

Because some combinations of “Configurations of

Product Part No.”, are under consideration for

development, please contact us for availability details.

Mating connectors:

LPC-B series female connectors for flat cable

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

3.7
