Gas Discharge Tubes
SL1010A Series
SL1010A Series
Description
RoHS

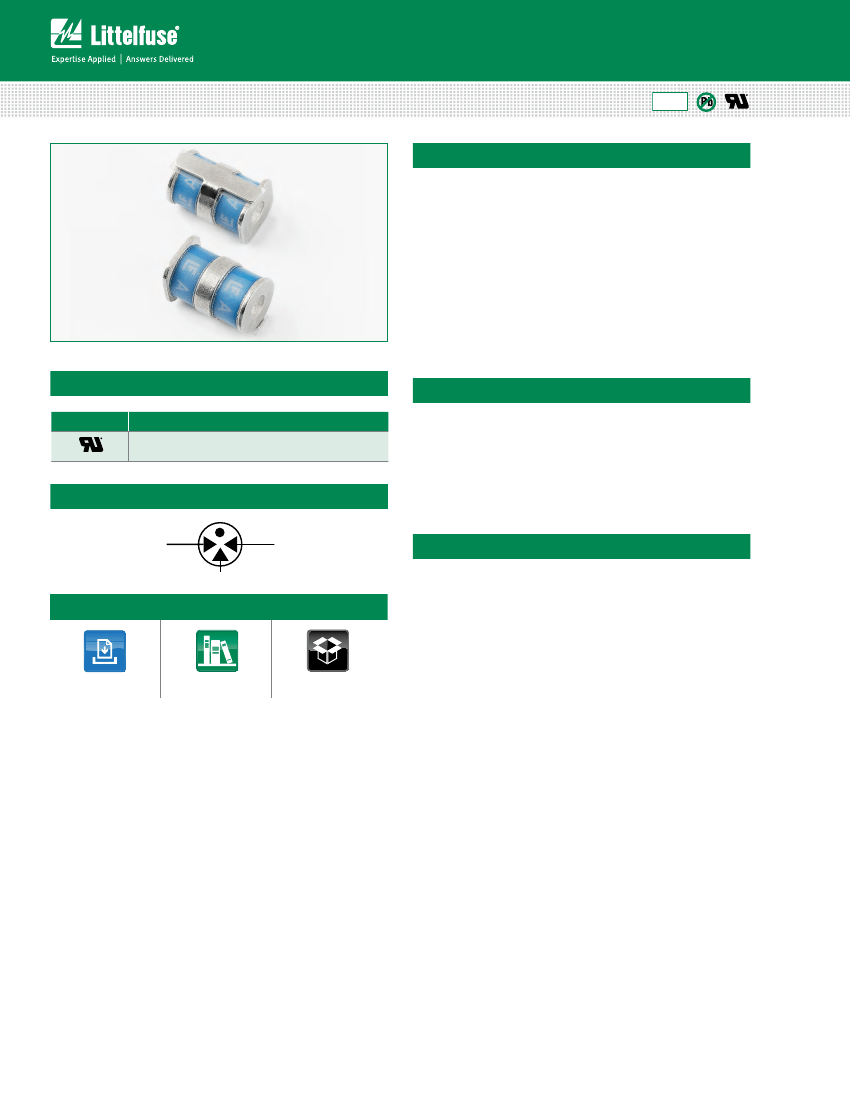

The SL1010A Series Gas Discharge Tube (GDT) offers
a compact, three-terminal, surface mount component
that’s just 5mm in diameter. It is rated for 10 hits
(±5 repetitions) of a 5kA 8/20µs surge event with a
low off-state capacitance of 1.5pF Its low arc voltage
.
parameter of 10V reduces thermal accumulation
during long-term power fault events.
Agency Approvals
AGENCY
AGENCY FILE NUMBER
Features
E128662
3 Electrode GDT Graphical Symbol
• 5mm diameter size
• Low insertion loss
• Fast response time
• Single component
balanced protector
(T-grd & R-grd)
Applications
• High current rating
• Stable performance
over lifetime
• Lead-free and RoHS
compliant
• UL Recognized
Additional Information
Datasheet
Resources
Samples
• Data lines
• Broadband interfaces
such as ADSL2/VDSL2
• xDSL equipment
• Satellite and CATV
equipment
• General telecom
equipment
• Industrial automation
• Home gateway
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/06/15
Gas Discharge Tubes
SL1010A Series
Electrical Characteristics
Device Specifications
(at 25°C)
DC Breakdown
in Volts
1,2,3
(@100V/s)
Part Number
Impulse
Breakdown in
Volts
2,3
(@100V/µs)
Impulse
Breakdown In
Volts
2,3
(@1kV/µs)
Insulation
Resistance
Capacitance
(@1MHz 0V Bias)
Arc
Voltage
(on state Voltage)
@1Amp Min
Nominal Impulse Nominal Impulse
Discharge
Discharge Current
Current
(x1@10/350µs)
(x10@8/20µs)
MIN
TYP
MAX
MAX
MIN
MAX
SL1010A075
SL1010A090
SL1010A170
SL1010A230
SL1010A350
SL1010A470
60
75
90
450
550
580
850
800
600
700
750
1000
950
>1GΩ
(at 50VDC)
72
136
184
280
376
90
170
230
350
470
108
204
276
420
564
<1.5 pF
~10 V
5kA
1kA
Notes:
1. At delivery AQL 0.65 level II, DIN ISO 2859
2. In ionized mode, tested according to ITU-T Rec. K.12
3. Comparable to the silicon measurement Switching Voltage (Vs)
4. Total current through center electrode at 10kA, through side electrode respectively at 5kA
Product Characteristics
Materials
Product Marking
Construction:
Ceramic Insulator
Device Finish:
Dull Tin-plated
17 +/- 12.5 microns
.5
Littelfuse 'LF' Mark, voltage and date code
Glow to Arc Transition Current
Glow Voltage
Storage and Operational Temperature
~1 Amp
~60 Volts
-40 to +90°C

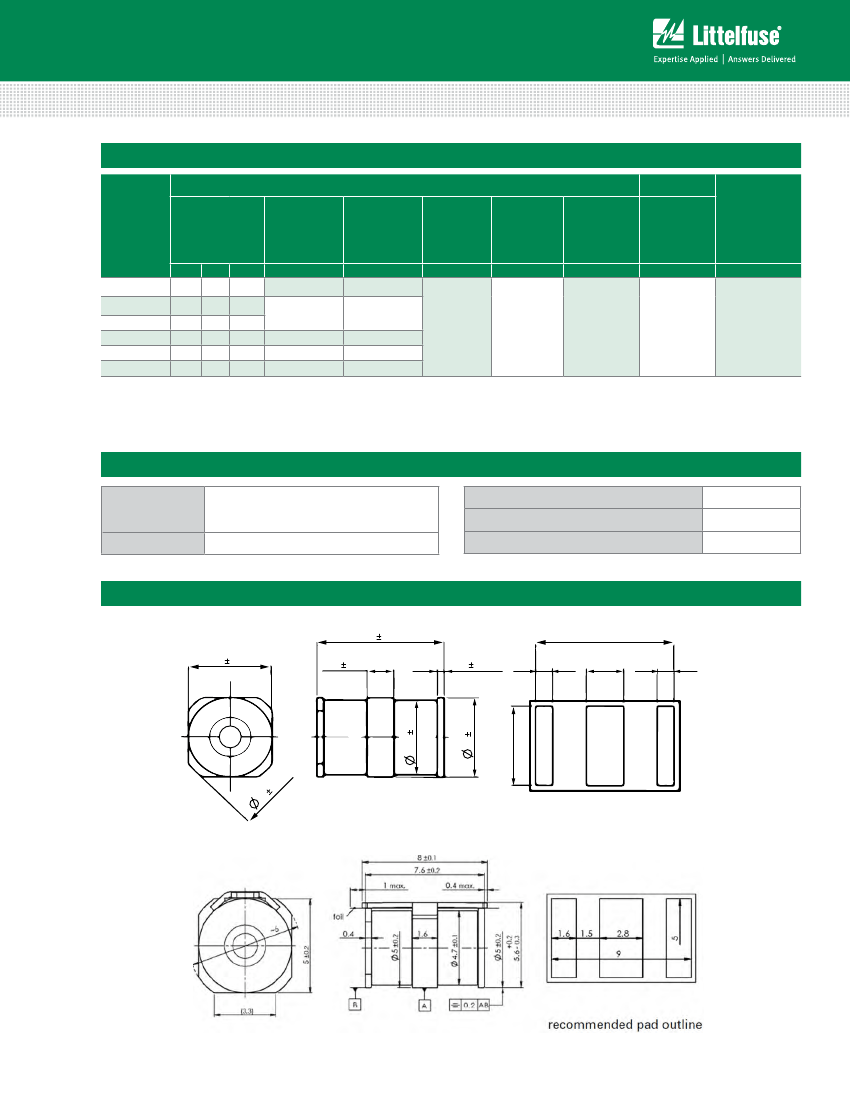

Device Dimensions
For SL1010A series:
7,6 0,2
5
0,2
1,6 0,1
0,4 0,05
1
8,2
2,2
1
Dimensions are in millimeters [and inches]
0,1
4,7
5
0,2
5
6
0,
2
tin-plated
For SL1010A series failsafe version:
recommended pad outline
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/06/15
Gas Discharge Tubes
SL1010A Series

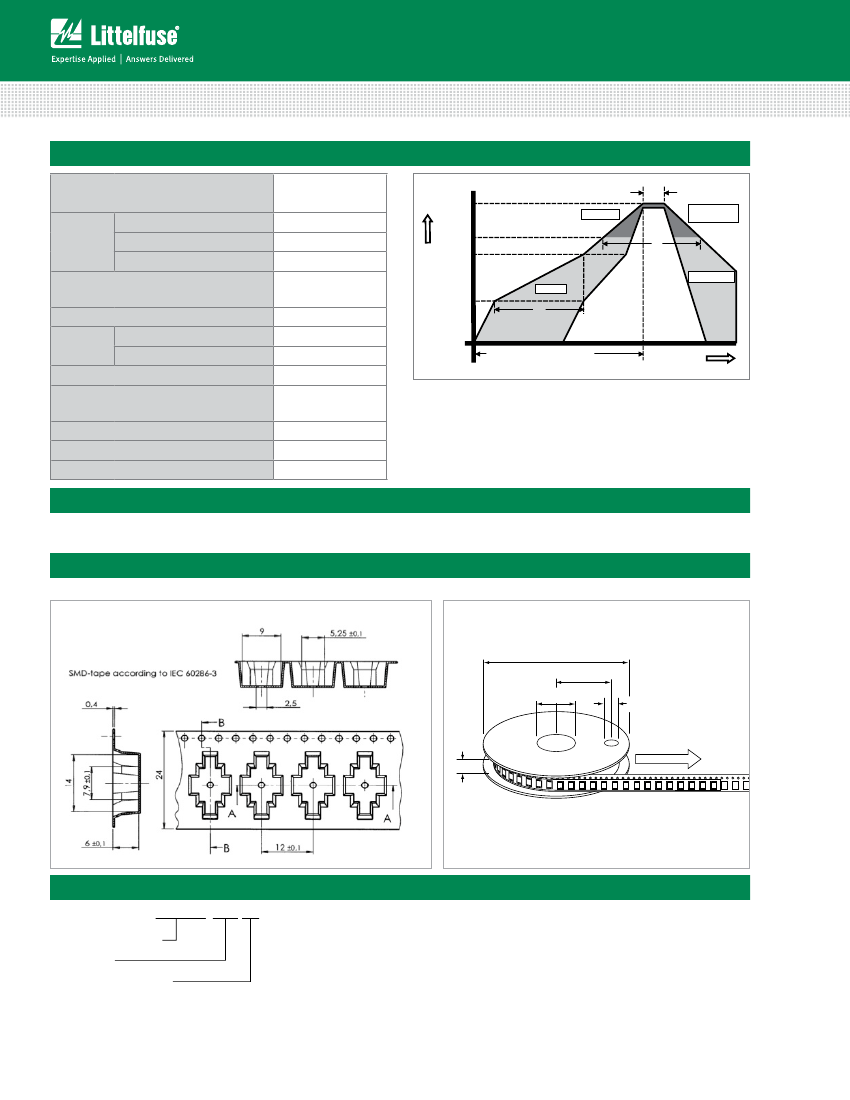

Soldering Parameters - Reflow Soldering (Surface Mount Devices)
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (Min to Max) (t
s
)
Average Ramp-up Rate (Liquidus Temp
(T
L
) to peak)
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
Pb-free assembly
150°C
60 – 180 seconds
3°C/second max.
5°C/second max.
217°C
60 – 150 seconds
260
+0/-5
T
P
T
L
Temperature
t
P
Ramp-up
Critical Zone
T
L
to T
P
200°C
T
S(max)
T
S(min)
Preheat
t
L
Ramp-down
t
S
time to peak temperature
(t 25ºC to peak)
25
Time
Peak Temperature (T
P
)
Time within 5°C of Actual Peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to Peak Temperature (T
P
)
Do not exceed
°C
10 – 30 seconds
6°C/second max.
8 minutes max.
260°C
Soldering Parameters - Hand Soldering
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Packaging
'SM' Type Surface Mount Items:
Packaged tape and reel carrier, 900 pcs/reel (specifications below)
Dimensions are in millimeters [and inches]
275.0
[10.83]
100.0
[3.94]
76.0
[2.99]
25.0
[0.98]
Dimensions are in millimeters [and inches]
17.7
[0.697]
Direction of Feed
Part Numbering System and Ordering Information
SL1010A XXX XX
SL1010A Series
Voltage
Pin Configuration
F
= with Failsafe
(Packed in carrier and tape, 900pcs/reel)
SM
= Surface Mount
(Packed in carrier and tape, 900pcs/reel)
SMF
= Surface Mount with Failsafe
(Packed in carrier and tape, 900pcs/reel)
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/06/15
