EPD02-13-A-A-A/B/C-A-O

Description
Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector

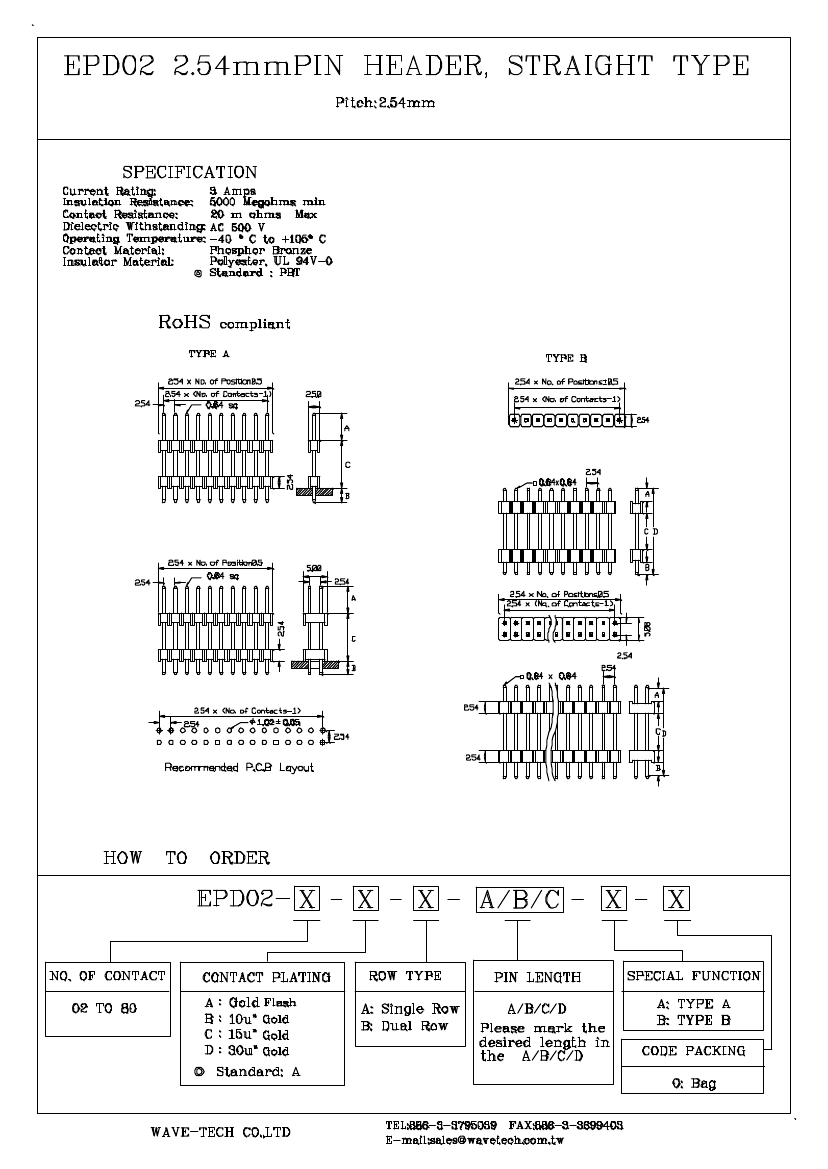

File Size63KB,1 Pages
ManufacturerWave Tech Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

EPD02-13-A-A-A/B/C-A-O Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

EPD02-13-A-A-A/B/C-A-O Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid303847337
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresTYPE A, BAG PACKING
body width0.1 inch
body length1.3 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance5000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberEPD02
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thicknessFLASH inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts13
