PB046SB3415QG datasheet, PDF - EEWORLD Datasheet

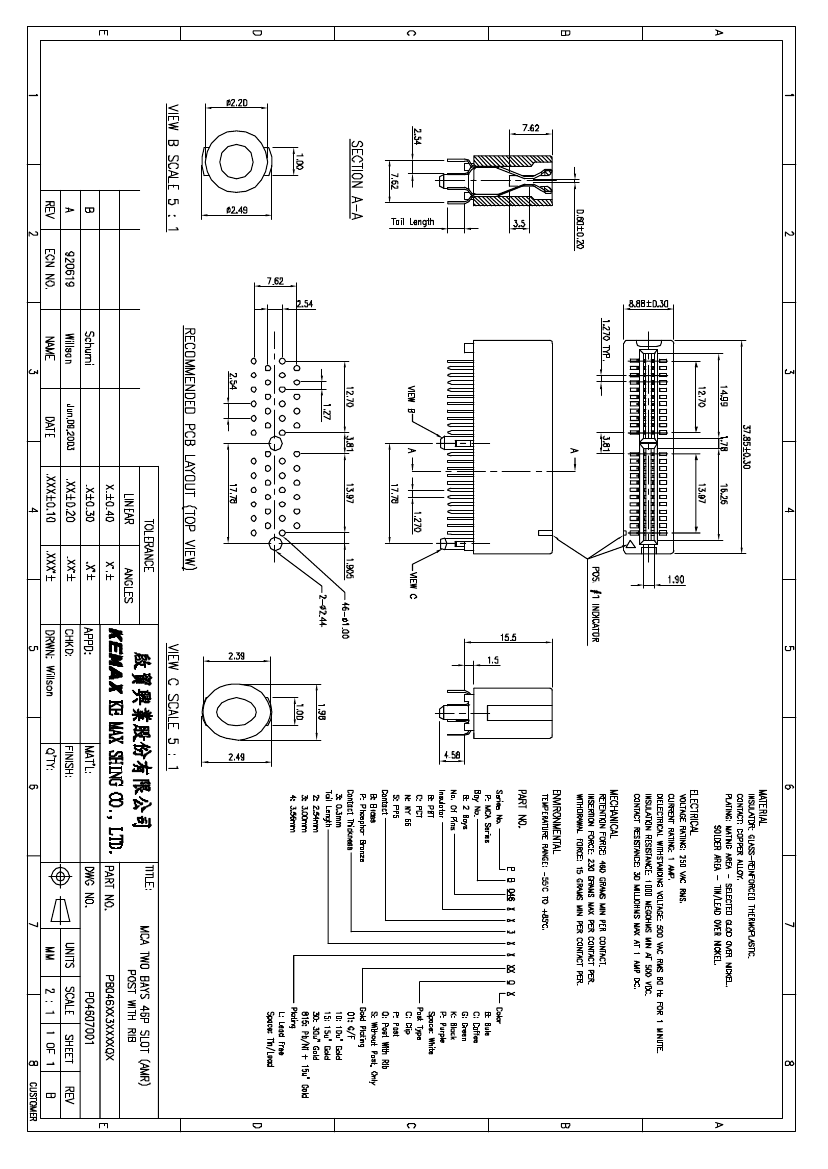

PB046SB3415QG: DescriptionCard Edge Connector, 46 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Green Insulator, Receptacle; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerKemax Shing Co., Ltd.

Download Datasheet Parametric View All

PB046SB3415QG Overview

Card Edge Connector, 46 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Green Insulator, Receptacle

Parameter Name	Attribute value
Objectid	1166251069
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POST WITH RIB
Board mount options	PEG
body width	0.35 inch
subject depth	0.61 inch
body length	1.49 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
maximum insertion force	1.39 N
Insulation resistance	1000000000 Ω
Insulator color	GREEN
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	MCA
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	46
Evacuation force-minimum value	.0556 N
