A2546H00-6P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A2546H00-6P

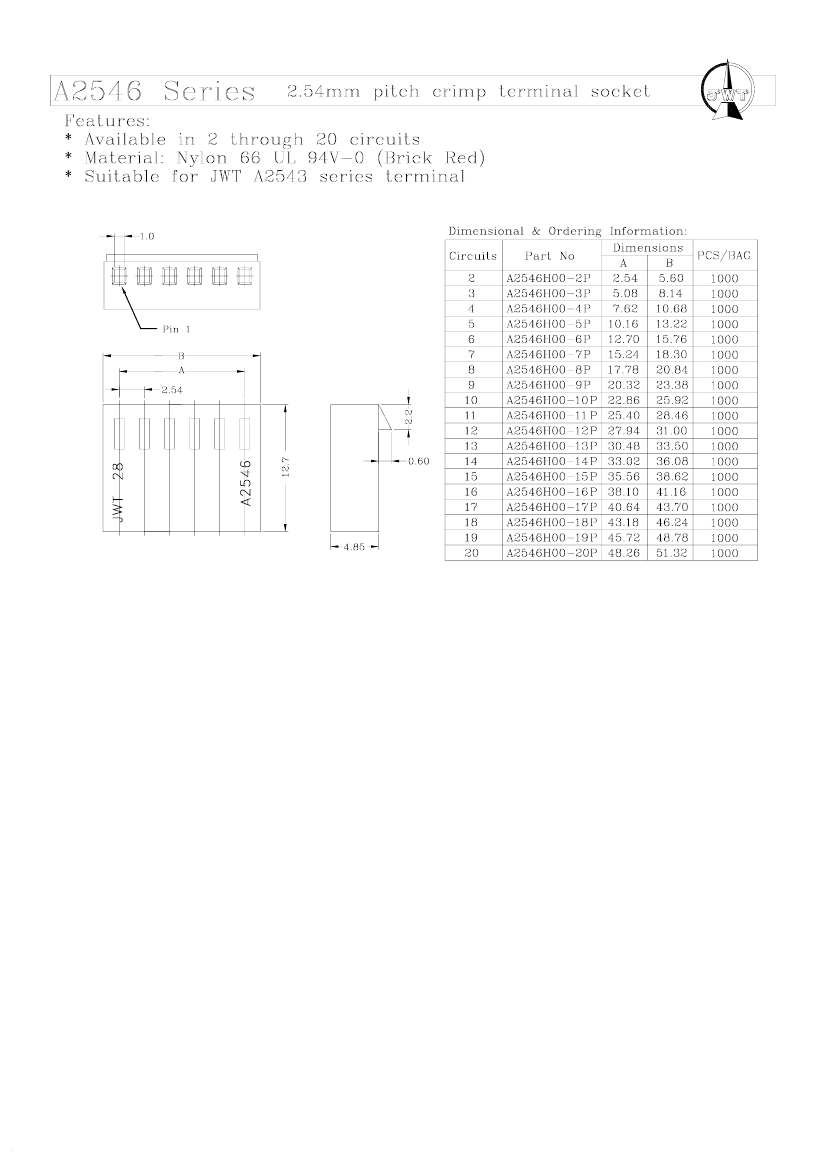

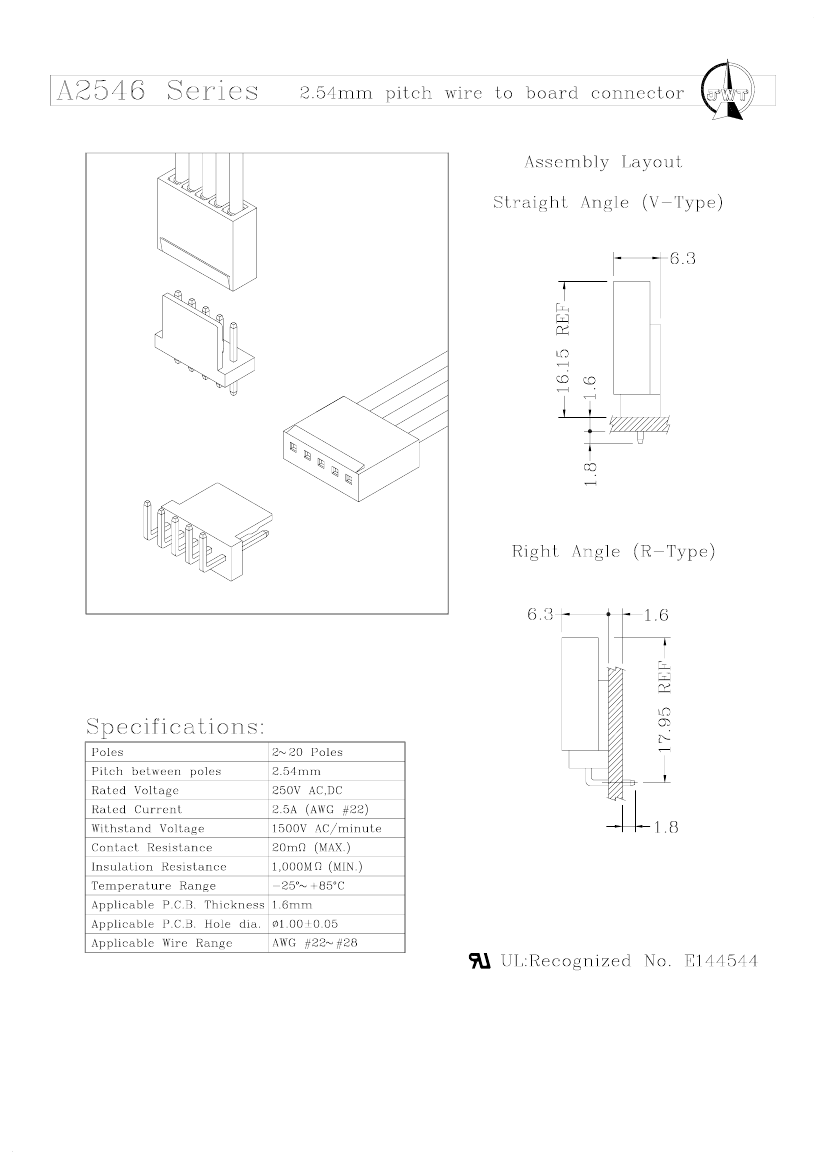

A2546H00-6P: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug; CategoryThe connector The connector; File Size124KB，2 Pages; ManufacturerJowle Technology Co., Ltd.

Download Datasheet Parametric Compare View All

A2546H00-6P Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug

A2546H00-6P Parametric

Parameter Name	Attribute value
Objectid	304108479
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	1000 PCS/BAG PACKAGING
body width	0.215 inch
subject depth	0.5 inch
body length	0.62 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	NYLON
Manufacturer's serial number	A2546
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

A2546H00-6P Related Products

	A2546H00-6P	A2546H00-2P	A2546H00-20P	A2546H00-12P	A2546H00-11P	A2546H00-4P
Description	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug	Board Connector, 20 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug	Board Connector, 12 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug	Board Connector, 11 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Red Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	1000 PCS/BAG PACKAGING	1000 PCS/BAG PACKAGING	1000 PCS/BAG PACKAGING	1000 PCS/BAG PACKAGING	1000 PCS/BAG PACKAGING	1000 PCS/BAG PACKAGING
body width	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch	0.215 inch
subject depth	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch
body length	0.62 inch	0.22 inch	2.02 inch	1.22 inch	1.12 inch	0.42 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	RED	RED	RED	RED	RED	RED
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	A2546	A2546	A2546	A2546	A2546	A2546
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	6	2	20	12	11	4
Maximum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
