Advance Datasheet
1.0A High-side Power Distribution Switch with Enable and Flag
AP2810
General Description
The AP2810 is an integrated high-side power switch
that consists of N-Channel MOSFET, charge pump,
over current & temperature and other related protection
circuits. The switch’s low RDS (ON), 60mΩ, design
easily to meet USB voltage drop requirements. It
includes soft-start to limit inrush current, over-current
protection, load short protection with fold-back, and
thermal shutdown to avoid switch failure during hot
plug-in. Under voltage lockout (UVLO) function is
used to ensure the device remain off unless there is a
valid input voltage present. A Flag output is available
to indicate fault conditions to the local USB
controller.
The AP2810 is available in standard packages of
SOIC-8 and MSOP-8.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Low MOSFET on Resistance: 60mΩ
@V
IN
=5.0V
Compliant to USB Specifications
Operating Voltage Range: 2.7V to 5.5V
Low Supply Current: 65µA (Typ)
Low Shutdown Current: 1.0µA (Max)
Guarantee 1.0A Continuous Load
Current Limit: 1.1A (Min), 2.1A (Max)
Under-voltage Lockout
Logic Level Enable Pin: Available in
Active-high or Active-low Version
Over-current Protection
Over Temperature Protection
Load Short Protection with Fold-back
No Reverse Current When Power off
With Output Shutdown Pull-low Resistor for
A/C Versions
Applications
•
•
•
•
•
USB Power Management
USB Bus/Self Powered Hubs
Hot-plug Power Supplies
Battery-charger Circuits
Notebooks, Motherboard PCs
SOIC-8
MSOP-8

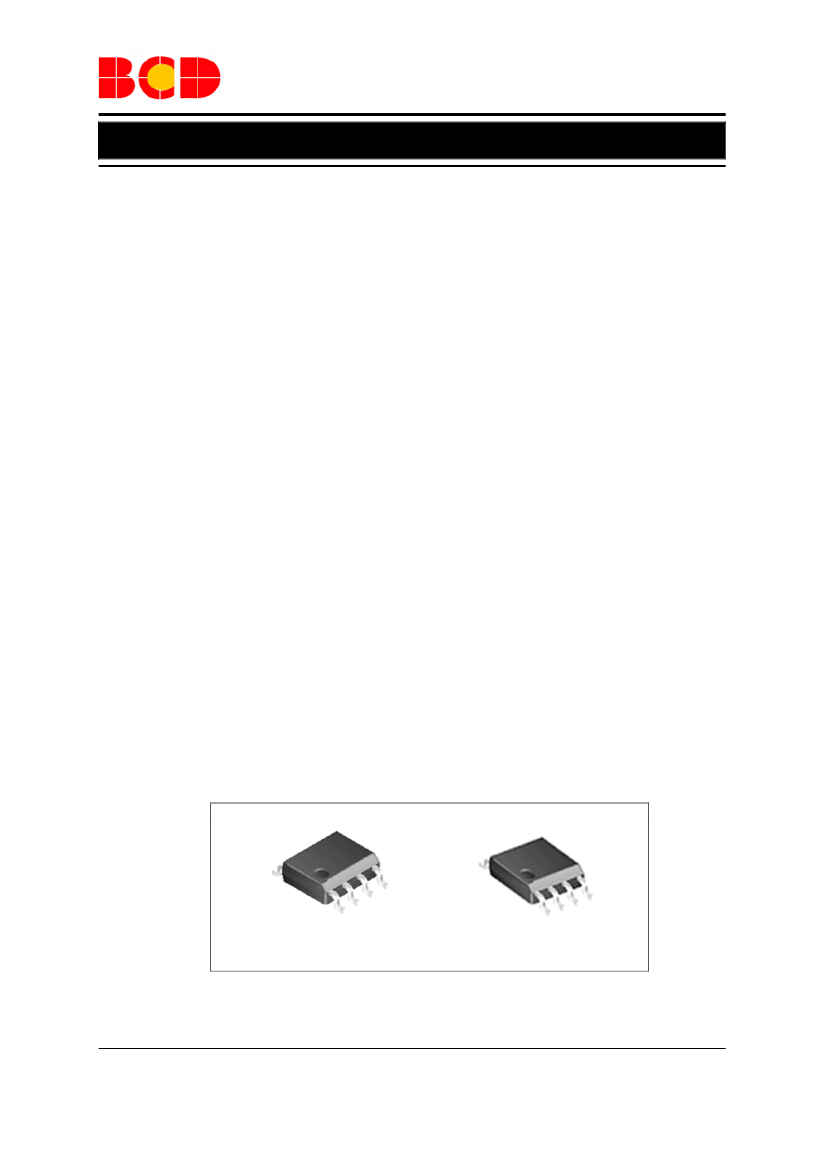

Figure 1. Package Types of AP2810
Jul. 2012
Rev 1. 2
1
BCD Semiconductor Manufacturing Limited
Advance Datasheet
1.0A High-side Power Distribution Switch with Enable and Flag
AP2810
Pin Configuration
M/MM Package
（SOIC-8/MSOP-8）
Figure 2. Pin Configuration of AP2810 (Top View)
Pin Descriptions
Pin Number
1
2, 3
4
5
6, 7, 8
VOUT
Pin Name
GND
VIN
Ground
Supply input pin
Function
Chip enable control input, active low or high
Fault flag pin, output with open drain, need a pull-up resistor in
application, active low to indicate OCP or OTP
Switch output voltage
Jul. 2012
Rev 1. 2
2
BCD Semiconductor Manufacturing Limited

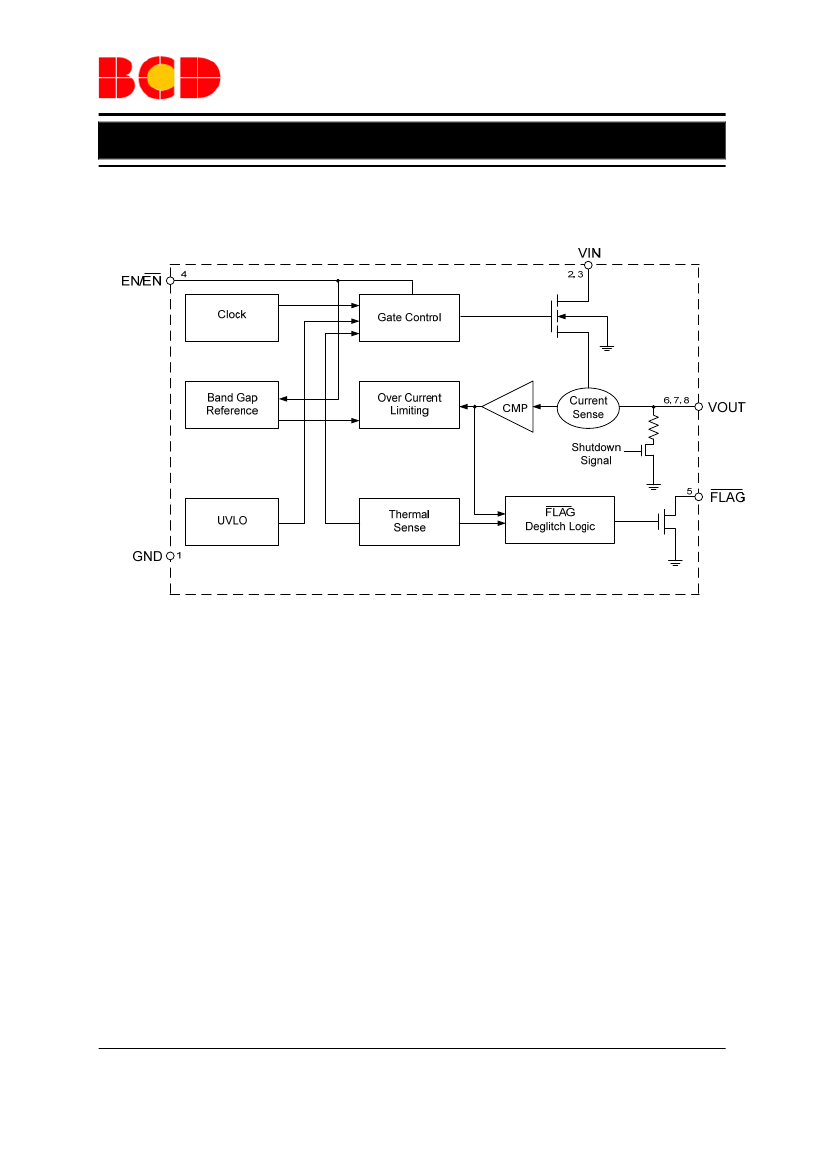

Advance Datasheet
1.0A High-side Power Distribution Switch with Enable and Flag
AP2810
Ordering Information
AP2810
-
G1: Green
TR: Tape & Reel
Blank: Tube
Condition
A: Active High with Auto Discharge
B: Active High without Auto Discharge
C: Active Low with Auto Discharge
D: Active Low without Auto Discharge
Package
M: SOIC-8
MM: MSOP-8
Circuit Type
Product Package
SOIC-8
AP2810A
MSOP-8
Condition
Temperature Part Number
Range
Green
AP2810AM-G1
AP2810AMTR-G1
AP2810AMM-G1
AP2810AMMTR-G1
AP2810BM-G1
Marking ID
Green
2810AM-G1
2810AM-G1
2810AMM-G1
2810AMM-G1
2810BM-G1
2810BM-G1
2810BMM-G1
2810BMM-G1
2810CM-G1
2810CM-G1
2810CMM-G1
2810CMM-G1
2810DM-G1
2810DM-G1
2810DMM-G1
2810DMM-G1
Packing
Type
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Active High
with Auto Discharge
-40 to 85°C
SOIC-8
AP2810B
MSOP-8
Active High
without Auto Discharge
-40 to 85°C
AP2810BMTR-G1
AP2810BMM-G1
AP2810BMMTR-G1
AP2810CM-G1
SOIC-8
AP2810C
MSOP-8
Active Low
with Auto Discharge
-40 to 85°C
AP2810CMTR-G1
AP2810CMM-G1
AP2810CMMTR-G1
AP2810DM-G1
SOIC-8
AP2810D
MSOP-8
Active Low
without Auto Discharge
-40 to 85°C
AP2810DMTR-G1
AP2810DMM-G1
AP2810DMMTR-G1
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant
and Green.
Jul. 2012
Rev 1. 2
4
BCD Semiconductor Manufacturing Limited
Advance Datasheet
1.0A High-side Power Distribution Switch with Enable and Flag
AP2810
Absolute Maximum Ratings (Note 1)
Parameter
Power Supply Voltage
Operating Junction Temperature
Range
Storage Temperature Range
Lead Temperature (Soldering,10
Seconds)
Thermal Resistance Junction to
Ambient
Symbol
V
IN
T
J
T
STG
T
LEAD
θ
JA
SOIC-8
MSOP-8
Value
6.0
150
-65 to 150
260
135
150
200
2000
Unit
V
ºC
ºC
ºC
o
C/W
V
V
ESD (Machine Model)
ESD (Human Body Model)
Note 1: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to
the device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute
Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions
Parameter
Supply Voltage
Operating Ambient
Range
Temperature
Symbol
V
IN
T
A
Min
2.7
-40
Max
5.5
85
Unit
V
°C
Jul. 2012
Rev 1. 2
5
BCD Semiconductor Manufacturing Limited
