CSN032D Series
SMD WIRE WOUND POWER INDUCTORS (UNSHIELDED)
Rev. A
A. Electrical Specifications:
P/N
CSN032D-1R0M
CSN032D-1R4M
CSN032D-1R8M
CSN032D-2R2M
CSN032D-2R7M
CSN032D-3R3M
CSN032D-3R9M
CSN032D-4R7M
CSN032D-5R6M
CSN032D-6R8M
CSN032D-8R2M
CSN032D-100M
CSN032D-120M
CSN032D-150M
CSN032D-180M
CSN032D-220M
CSN032D-270M
CSN032D-330M
CSN032D-390M
CSN032D-470M
CSN032D-560M
CSN032D-680M
CSN032D-820M
CSN032D-221M
CSN032D-471M
Marking
BA
BE
BI
CC
CH
DD
DJ
EH
FG
GI
IC
KA
QA
MA
RA
LA
SA
NA
PA
OA
UA
VA
XA
LB
OB
Inductance
(μH)
1.0
1.4
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
220
470
Test Freq.
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR Max.
(Ω)
0.07
0.09
0.11
0.13
0.14
0.20
0.21
0.33
0.35
0.38
0.43
0.50
0.65
0.82
0.90
1.14
1.39
1.55
2.15
2.44
2.68
3.05
3.48
6.30
14.00
Rated Current
(A)
2.080
1.860
1.800
1.390
1.320
1.250
1.200
1.030
0.910
0.850
0.820
0.740
0.640
0.600
0.540
0.500
0.430
0.400
0.370
0.360
0.310
0.300
0.280
0.200
0.090

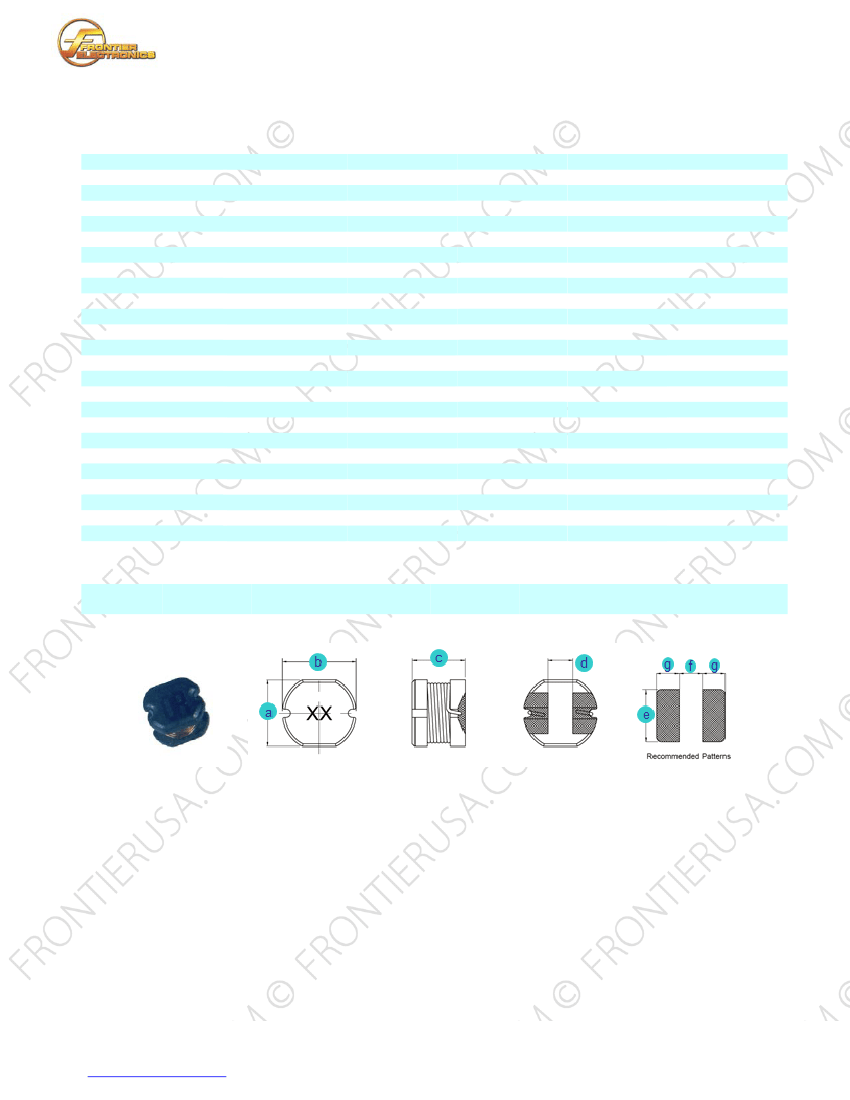

B. Dimensions: mm (Inch)
Series
CSN032D
Tol.
a
3.0
(0.118)
±0.3
(0.012)
b
3.3
(0.130)
±0.3
(0.012)
c
2.1
(0.083)
±0.3
(0.012)
d
1.0
(0.039)
Typ.
e
3.2
(0.126)
Typ.
f
1.2
(0.047)
Typ.
g
1.2
(0.047)
Typ.
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
1.
2.
3.
4.
5.
6.
CSN032D-xxx_, “CSN032D” = P/N, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_”: M: ± 20%, L= ± 15%, K = ±10%.
Operating temperature range: -30ºC to +100ºC (Including self-heating).
Storage temperature: -40ºC to +85ºC.
Inductance measured using the HP4284A and Chroma1320 & 3302.
DCR measured using Chroma 16502 milliohm meter.
Inductance drop no more than 10% of initial value at rated current, temperature rise ∆t < 40ºC.
Inductance and Current range: From 1.0 µH (2.080A) to 470.0 µH (0.090A).
MSL: Level 1.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
PDA, LCD, DVD, BRP, HD
D. Applications:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
CSN032D Series
SMD WIRE WOUND POWER INDUCTORS (UNSHIELDED)
Rev. A

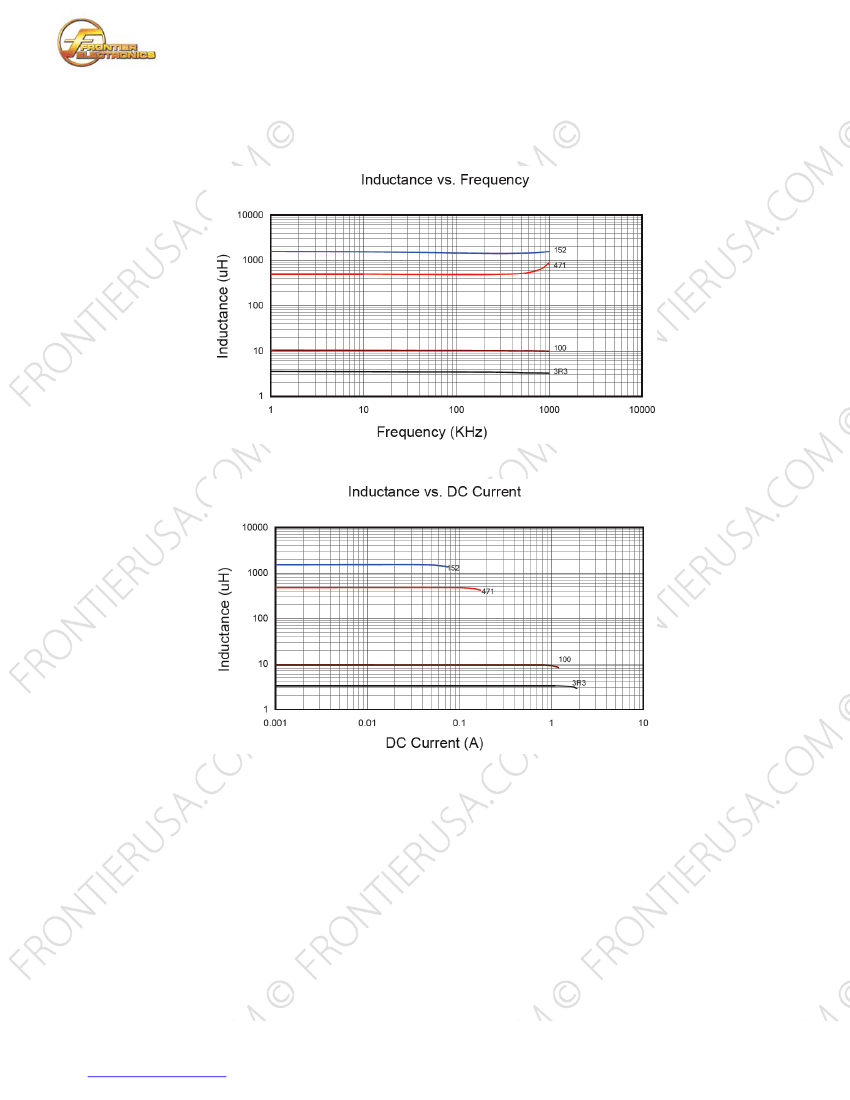

E. Characteristics Curve:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
