CSN104D Series
SMD WIRE WOUND POWER INDUCTORS (UNSHIELDED)
Rev. A
A. Electrical Specifications:
P/N
CSN104D-100M
CSN104D-120M
CSN104D-150M
CSN104D-180M
CSN104D-220M
CSN104D-270M
CSN104D-330M
CSN104D-390M
CSN104D-470M
CSN104D-560K
CSN104D-680K
CSN104D-820K
CSN104D-101K
CSN104D-121K
CSN104D-151K
CSN104D-181K
CSN104D-221K
CSN104D-271K
CSN104D-331K
CSN104D-391K
CSN104D-471K
CSN104D-561K
CSN104D-102K
Marking
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
102
Inductance
(μH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
1000
Test Freq.
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
10
10
10
10
10
10
10
10
10
10
1
DCR Max.
(Ω)
0.053
0.061
0.070
0.081
0.088
0.100
0.120
0.151
0.170
0.199
0.223
0.252
0.344
0.396
0.544
0.621
0.721
0.949
1.100
1.245
1.526
1.904
3.800
Rated Current
(A)
2.38
2.13
1.87
1.73
1.60
1.44
1.26
1.20
1.10
1.01
0.91
0.85
0.74
0.69
0.61
0.56
0.53
0.45
0.42
0.38
0.35
0.32
0.16

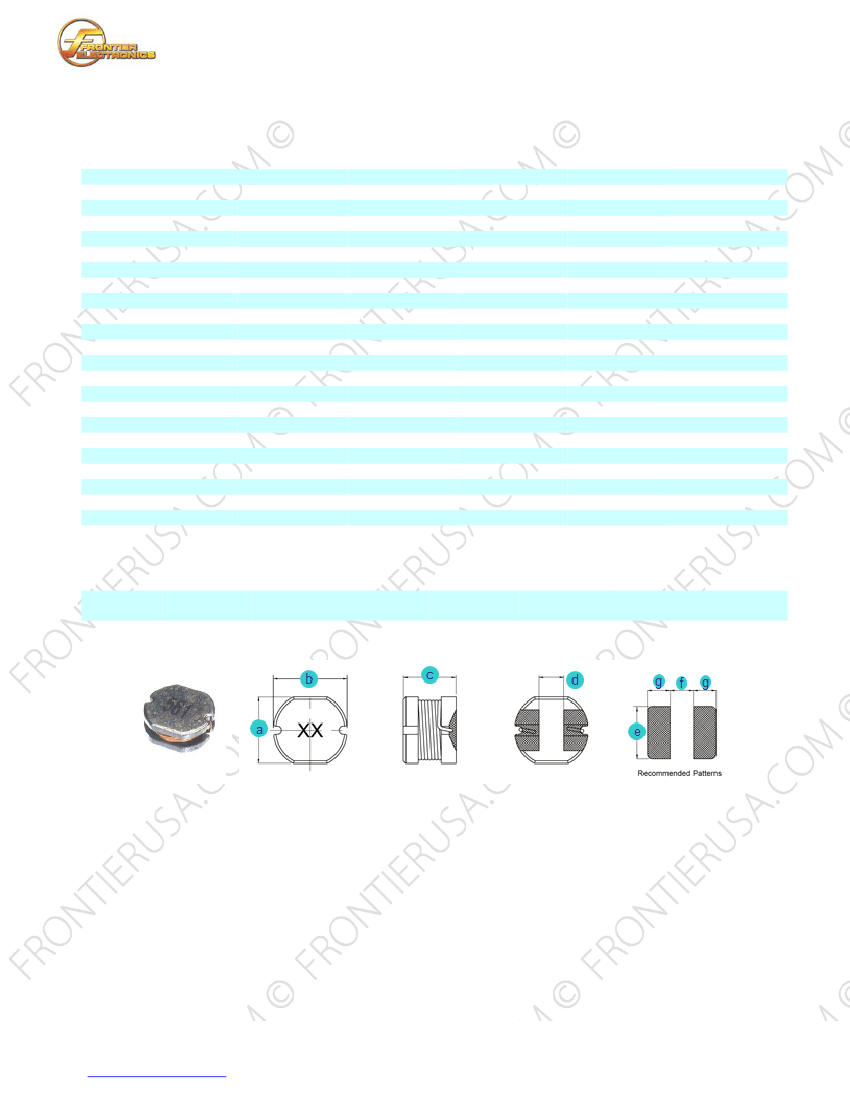

B. Dimensions: mm (Inch)
Series
CSN104D
Tol.
a
9.0
(0.354)
±0.3
(0.012)
b
10.0
(0.394)
±0.3
(0.012)
c
4.0
(0.157)
±0.5
(0.020)
d
2.2
(0.087)
Typ.
e
9.5
(0.374)
Typ.
f
2.5
(0.098)
Typ.
g
3.75
(0.148)
Typ.
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
CSN104D-xxx_, “CSN104D” = P/N, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_”: M: ± 20%, L= ± 15%, K = ±10%.
Operating temperature range: -30ºC to +100ºC (Including self-heating).
Storage temperature: -40ºC to +85ºC.
Inductance measured using the HP4284A and Chroma1320 & 3302.
DCR measured using Chroma 16502 milliohm meter.
Inductance drop no more than 10% of initial value at rated current, temperature rise ∆t < 40ºC.
Inductance and Current range: From 10.0 µH (2.38A) to 1000.0 µH (0.16A).
MSL: Level 1.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
CSN104D Series
SMD WIRE WOUND POWER INDUCTORS (UNSHIELDED)
Rev. A
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
PDA, LCD, DVD, BRP, HD

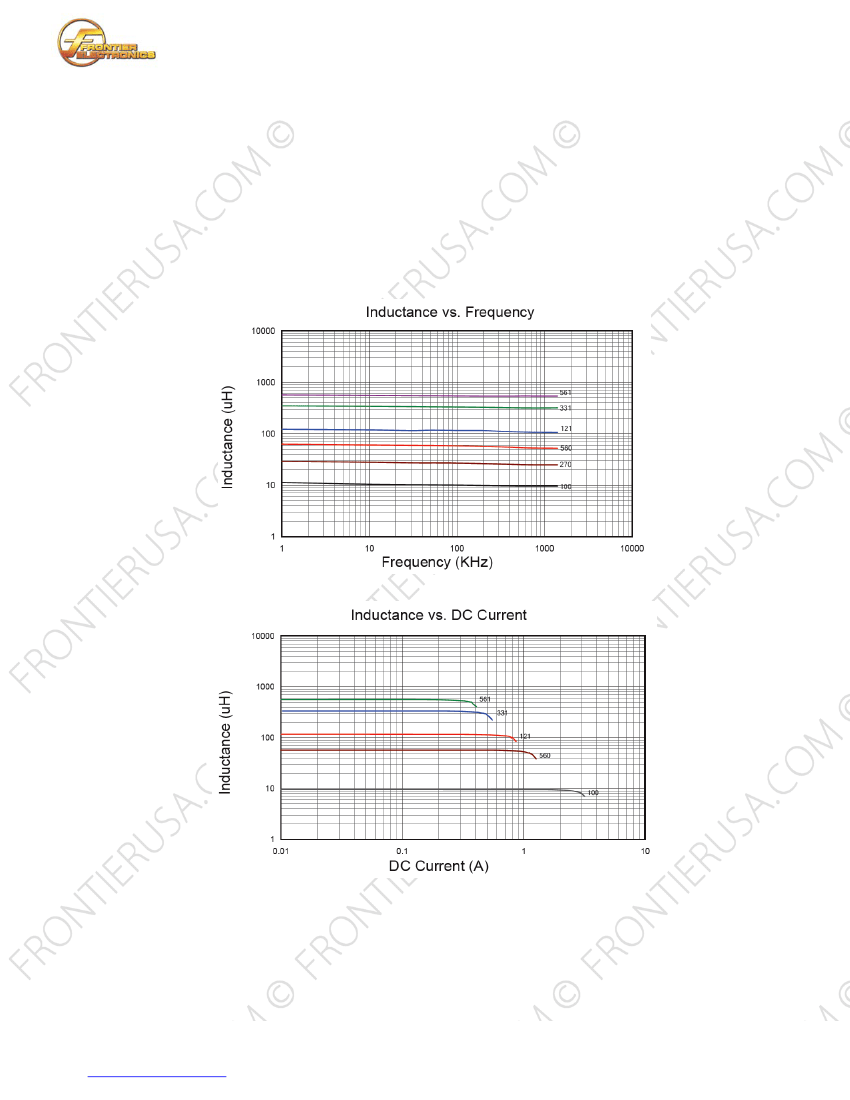

E. Characteristics Curve:
