122A10719X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 122A10719X

122A10719X: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

122A10719X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	122A10719X	-	-	View	Buy Now

122A10719X Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

122A10719X Parametric

Parameter Name	Attribute value
Objectid	300261589
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.417 inch
subject depth	0.449 inch
body length	2.165 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	50 Cycles
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	122
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48

Preview

Download Datasheet

View All

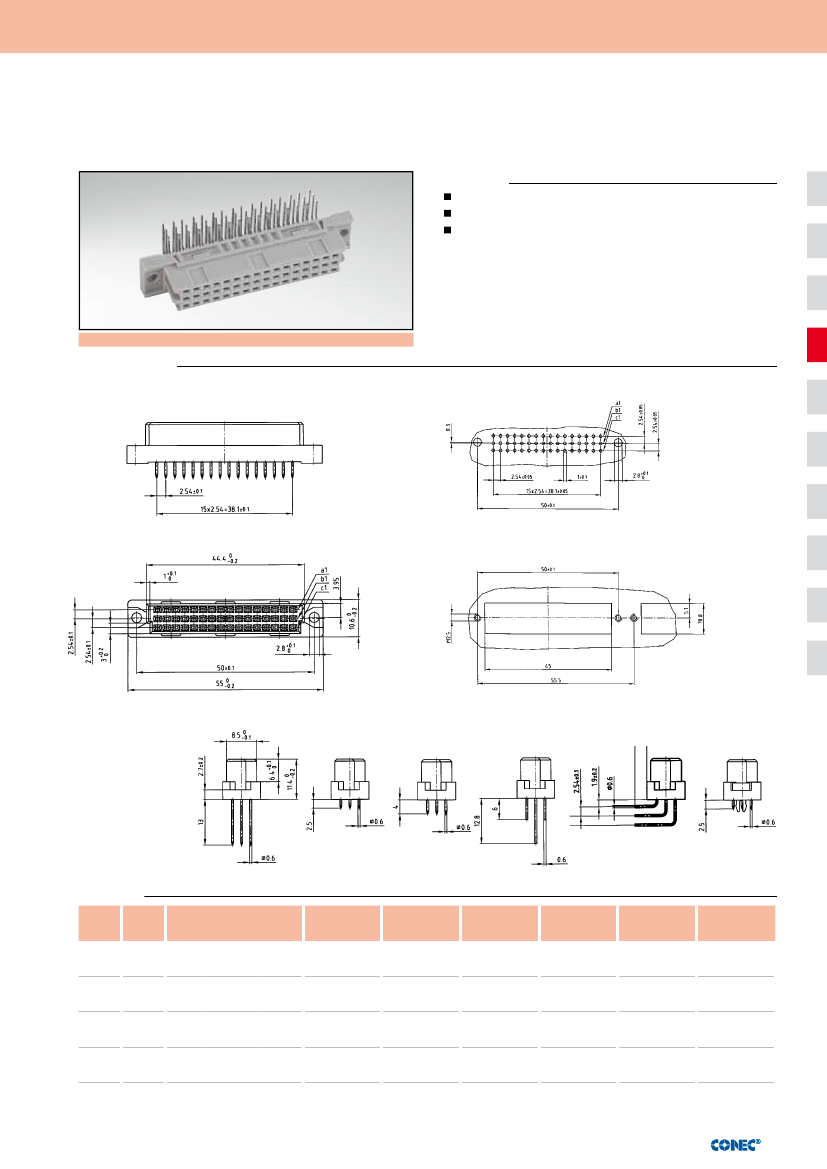

Con nect ors DIN EN

6 06 03 -2 ( DIN 41612 )

Type C/2

Female connector – straight and angled – 16, 32 and 48 positions

Description

Solder pin, solder lug and wire wrap

Quality class 3 (also available in quality class 2 or 1)

Special assembly on request

RoHS compliant

Product drawing

PCB-hole pattern

Panel cutout

Wire Wrap

Solder pin

straight 2.5 mm

Solder pin

straight 4 mm

Solder lug

Solder pin

angled

Solder pin straight

2.5 mm with clip

Order data

No. of

Pos.

Row

• = contact, + = no contact

Pos. 1

(Dim. = mm)

Wire Wrap

122 A 10579 X

122 A 10589 X

122 A 10609 X

122 A 10619 X

•

…

Solder pin

straight 2.5 mm

122 A 10629 X

122 A 10639 X

122 A 10659 X

122 A 10669 X

Solder pin

straight 4 mm

122 A 10679 X

122 A 10689 X

122 A 10709 X

122 A 10719 X

Solder lug

122 A 10729 X

122 A 10739 X

122 A 10759 X

122 A 10769 X

Solder pin

angled

122 A 10779 X

122 A 10789 X

122 A 10809 X

122 A 10819 X

Solder pin straight

2,5 mm with clip

122 A 13299 X

122 A 13309 X

122 A 13329 X

122 A 13339 X

Clip for hole diameter 2.8 + 0.1 mm, PCB thickness = 1.6 mm

4| 13

122A10719X Related Products

	122A10719X	122A10589X	122A13299X	122A13309X	122A13329X
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Receptacle	Board Euro Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.417 inch	0.417 inch	0.417 inch	0.417 inch	0.417 inch
subject depth	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch
body length	2.165 inch	2.165 inch	2.165 inch	2.165 inch	2.165 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES	YES	YES
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	122	122	122	122	122
Plug contact pitch	0.1 inch	0.2 inch	0.1 inch	0.2 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,B,C	A,C	A	A,C	A,C
PCB row number	3	2	1	2	2
Number of rows loaded	3	2	1	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.157 inch	0.512 inch	0.098 inch	0.098 inch	0.098 inch
Terminal pitch	2.54 mm	5.08 mm	2.54 mm	5.08 mm	2.54 mm
Termination type	SOLDER	WIRE WRAP	SOLDER	SOLDER	SOLDER
Total number of contacts	48	16	16	16	32
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Match contact row spacing	0.1 inch	0.2 inch	-	0.2 inch	0.2 inch
PCB contact row spacing	2.54 mm	5.08 mm	-	5.08 mm	5.08 mm
