DBC32.510T: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,NATURAL; CategoryThe connector The connector; File Size435KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric Compare View All

DBC32.510T Overview

HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,NATURAL

DBC32.510T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304356747
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.22 inch
subject depth	0.126 inch
body length	1.083 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	DBC3
Plug contact pitch	0.098 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

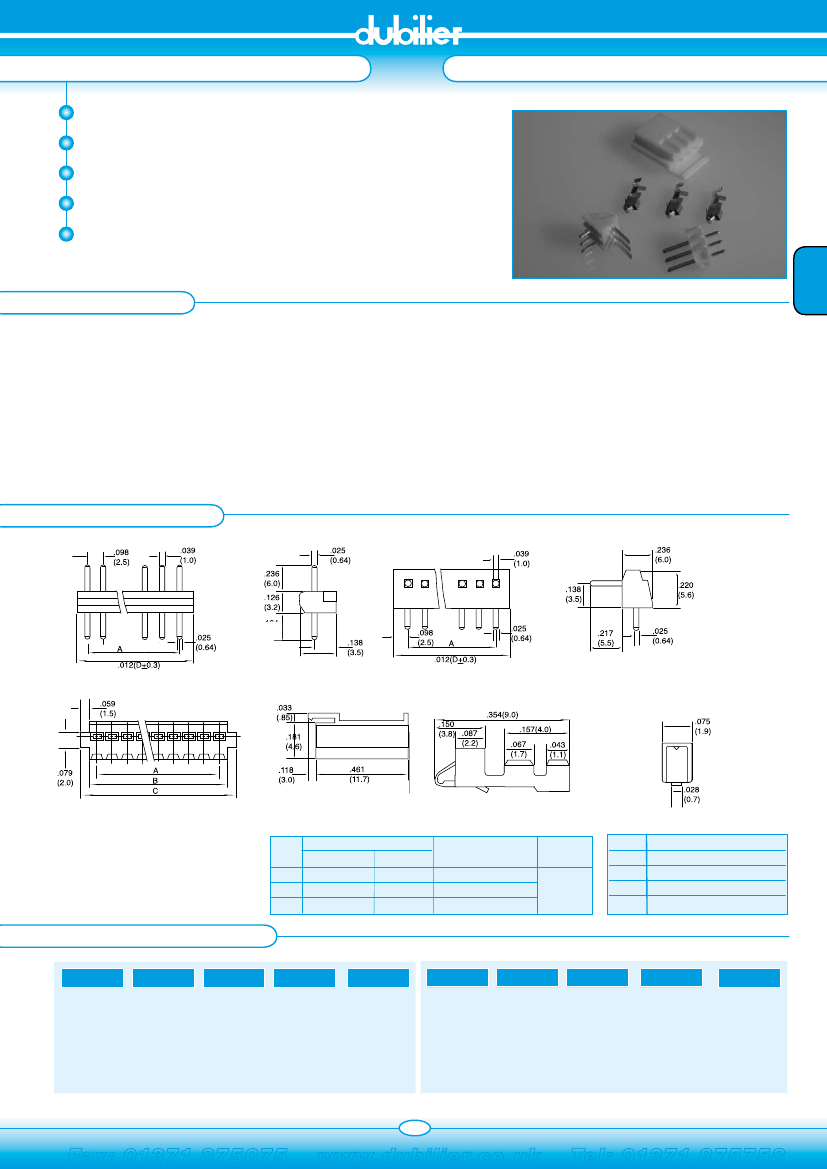

BOARD TO WIRE CONNECTORS

2 - 20 ways

Accepts wire of 30 - 22 AWG

Housing, Wafer and Terminal Available

Current rating 3A AC, DC

Voltage rating 250VAC, DC

2.5mm PITCH

SECTION 8

SPECIFICATION

General

Withstand Voltage:

Insulation Resistance:

Temperature Range:

1000v AC/min

1000mΩ min

-25˚C to +85˚C

Housing

Material:

Nylon 66, UL94V-0 or 94V-2

Wafer

Material:

Post:

Base:

Brass, Tin/Plated

Nylon 66, UL94V-0 Natural

Terminal

Wire Acceptance:

Material:

Finish:

Thickness:

22-30 AWG

Phos. Bronze/Brass

Tin/plated 40µ” min

0.2mm

OUTLINE DRAWING

DBC 32.5xT

DBC 32.5xS

3.4

5.6

DBC 32.5xH

DBC 32.5PIN

Style Suitable wire range D.D.of wire

AWG insulation Plating

Tin

PINA 0.08 - 0.33 28 - 22 1.2 - 1.7

PINA 0.05 - 0.08 30 - 28 0.9 - 1.2

Dim

(No ways x 2.5) -2.5

(No ways x 2.5) +0.7

(No ways x 2.5) +3.7

(No ways x 2.5) +2.5

ORDERING INFORMATION

DBC

Dubilier

Connectors

Series

2.5

Pitch

2.5 = 2.5mm

pitch

Nº of Ways

2 = 2ways

10=10ways

etc

Style

T =Top Entry

S = Side Entry 90˚

H = Housing

DBC

Dubilier

Connectors

Series

2.5

Pitch

2.5 = 2.5mm

pitch

PINA

Style

PINA = 28 - 22AWG

PINB = 30 - 28AWG

Material

B = Brass

P = Phos.

Bronze

223

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758

DBC32.510T Related Products

	DBC32.510T	DBC32.52H	DBC32.510H
Description	HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.098 PITCH,PC TAIL TERMINAL,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,2 CONTACTS,SKT,0.098 PITCH,CRIMP TERMINAL,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,10 CONTACTS,SKT,0.098 PITCH,CRIMP TERMINAL,NATURAL
Is it Rohs certified?	conform to	conform to	conform to
Objectid	304356747	304356653	304356654
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
body width	0.22 inch	0.181 inch	0.181 inch
subject depth	0.126 inch	0.461 inch	0.461 inch
body length	1.083 inch	0.343 inch	1.13 inch
Body/casing type	RECEPTACLE	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	MALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	NYLON	NYLON	NYLON
Manufacturer's serial number	DBC3	DBC3	DBC3
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch
Installation type	BOARD	CABLE	CABLE
Number of rows loaded	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SOLDER	CRIMP	CRIMP
Total number of contacts	10	2	10
Plating thickness	-	40u inch	40u inch
polarization key	-	POLARIZED HOUSING	POLARIZED HOUSING
Maximum wire diameter	-	22 AWG	22 AWG
Minimum wire diameter	-	30 AWG	30 AWG
