DY SERIES
0.5mm PITCH FLOATING CONNECTOR
FEATURES
▶
Location
error offsets ±0.5mm in the XY direction.
▶
High reliable design with effective contact displacement of 1.25mm(0.049’’).
▶
Suction area for automated mounting provided.
▶
Positioning posts are optional for manual mounting.
▶
Wide variations in the number of contacts (30, 40, 50, 60,
80, 90, 100, 120 and 140 pins) are offered.
*Available pin count varies with the product type.
▶
Vertical
and Stacked mating combinations.
▶
Stacked mating heights of 5, 6, 7, 8, 9, 10, 11, 12, 13 and 14mm.
(0.197, 0236, 0.276, 0.315, 0.354, 0.394, 0.433, 0.472, 0.512, 0.551’’)
*Available mating height varies with the product type.
▶
Shape of retention clip forming the large fillet.
*Optional type with a dust cap provided on a plug side is also available.
ORDER CODE
DY0 -
①
②
③ ④
S- -
⑤
①
【
Type
】
Receptacle
DY00
：
Without positioning posts
DY01
：
With positioning posts
②
【
Number of contacts
】
030
：
30
pin
040
：
40
pin
050
：
50
pin
060
：
60
pin
080
：
80
pin
090
：
90
pin
100
：
100
pin
120
：
120
pin
140
：
140
pin
③
【
Contact tail style
】
S
：
Straight
④
【
Number of packaging
】
Omit
：
1000pcs,
per reel
A
：
500pcs,
per reel
⑤
【
Anti-dust tape
】
Omit
：
without anti-dust tape
BT
：
with anti-dust tape (excl. DY00, DY01-50 pins, and DY01-A)
ORDER CODE
*Please order in multiples of the quantity per package.
DY1 -
①
②
③
- -
④ ⑤
①
【
Type
】
Plug
DY10
：
Without positioning posts
DY11
：
With positioning posts
②
【
Number of contacts
】
(S type)
030
：
30pin
040
：
40pin
050
：
50pin
060
：
60pin
080
：
80pin
100
：
100pin
120
：
120
pin
140
：
140
pin
*Please order in multiples of the quantity per package.
*The product of
30pin, 40pin
and
50pin
corresponds to the type of
5mm, 6mm
and
7mm
in the stack height.
(FS type)
060
：
60
pin
080
：
80
pin
100
：
100
pin
120
：
120
pin
140
：
140
pin
(L type)
030
：
30
pin
040
：
40
pin
050
：
50
pin
060
：
60
pin
080
：
80
pin
090
：
90
pin
100
：
100
pin
120
：
120
pin
140
：
140
pin
③
【
Contact tail style
】
S
：
Straight (Stacked height:
5
to
10mm)
FS
：
Flexible straight (Stacked height:
11
to
14mm)
L
：
Raght angle
④
【
Stacked height
】
(S type)
1
：
5mm(0.197'')
2
：
6mm(0236'')
3
：
7mm(0.276'')
4
：
8mm(0.315'')
5
：
9mm(0.354'')
6
：
10mm(0.394'')
(FS type)
1
：
11mm(0.433'')
2
：
12mm(0.472'')
3
：
13mm(0.512'')
4
：
14mm(0.551'')
A
：
500pcs,
per reel (stacked height
5mm)
⑤
【
Number of packaging
】
(S type)
Omit
：
500pcs,
per reel (stacked height
6
to
10mm) 1,000pcs,
per reel (stacked height
5mm)
SPECIFICATIONS
Material and plating
Insulator material
Contact material
Contact plating
Retention clip material
Retention clip plating
Glass-filled LCP (UL94V-0), Black
Copper alloy
Gold over Nickel
Copper alloy
Gold over Nickel
Current rating
Contact resistance
Electrical Characteristics
0.4A per contact
0.3A per contact (DY1□-□□□L)
80mΩ max.
100mΩ max. (DY1□-□□□L)
Dielectric withstanding voltage 200V AC for 1 minute
Insulation resistance
100MΩ min. at 250V DC
Operating temperature
-40℃ to +85℃

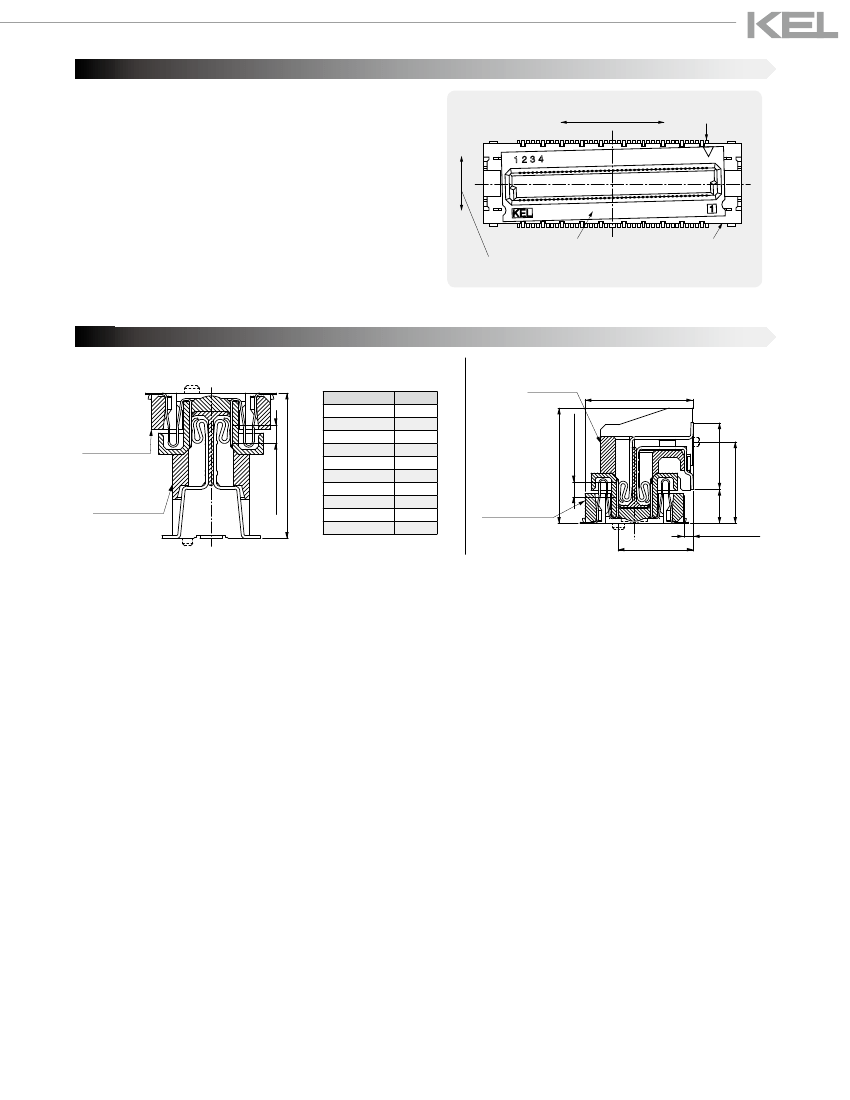

Floating Connector
When the connector is mounted on the printed circuit board, a location
error in the two directions of horizontal and vertical(XY direction) may
occur at both connectors. In addition, if each printed circuit board is
fixed to a case by screws after mating connectors, the connectors
may have to compensate for the location error because a gap occurs
during screwing to the printed circuit board. A connector having a
tolerance to compensate for such an error or gap caused by vibration
is called a floating connector. The DY series is a 0.5mm(0.020'') fine
pitch connector with ±0.5mm(0.020'') floating mechanism and ensures
sufficient compensation for location errors.
Permissible mating tolerance in the
pitch-direction
±
0.5mm(0.020'')
Contact
Insulator A
Insulator B
DY1
□
-
□□□
S-
□
-
□
DY1
□
-
mating tolerance in the direction
Permissible
□□□
FS-
□
perpendicular to the pitch-direction
±
0.5mm(0.020'')

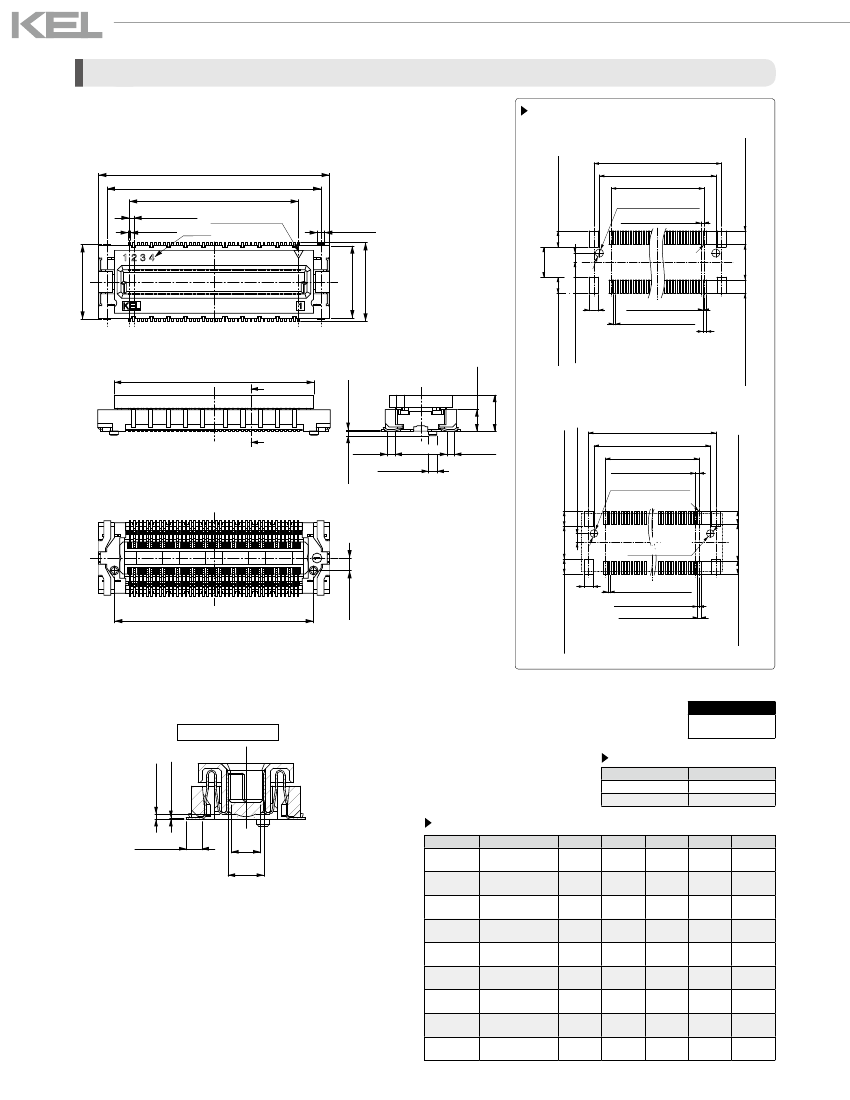

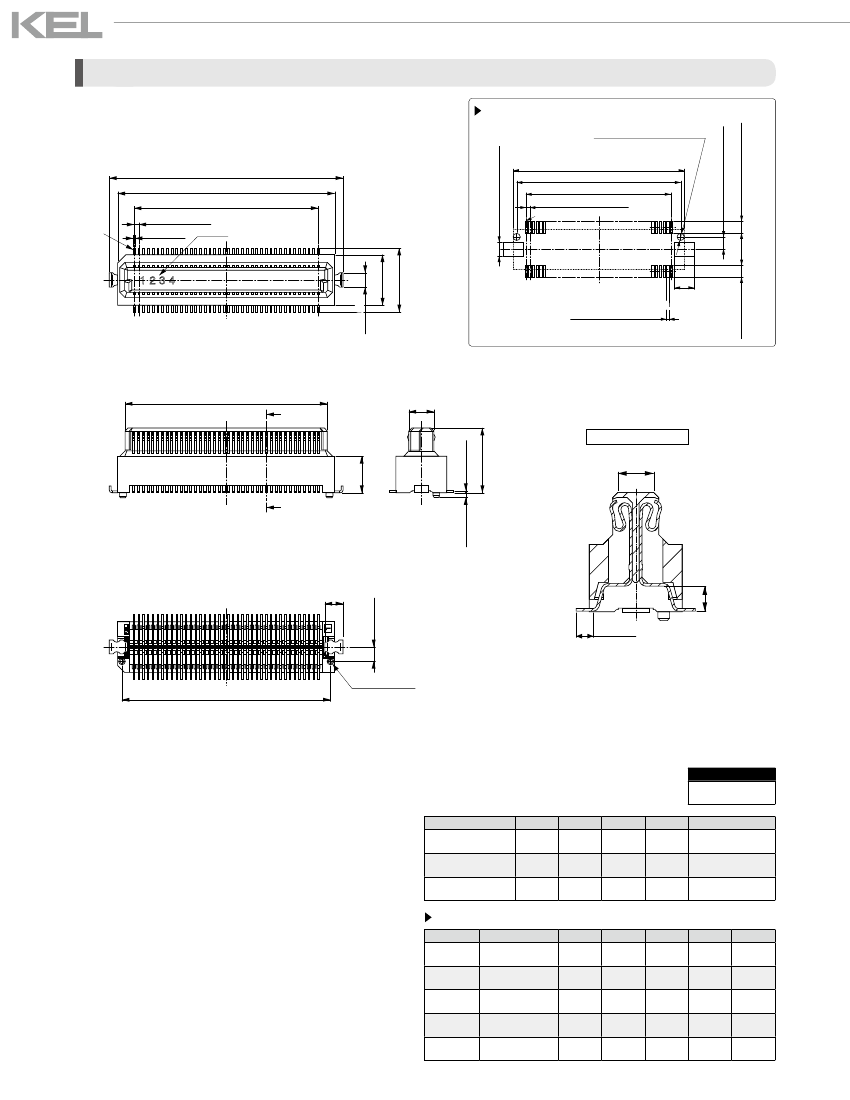

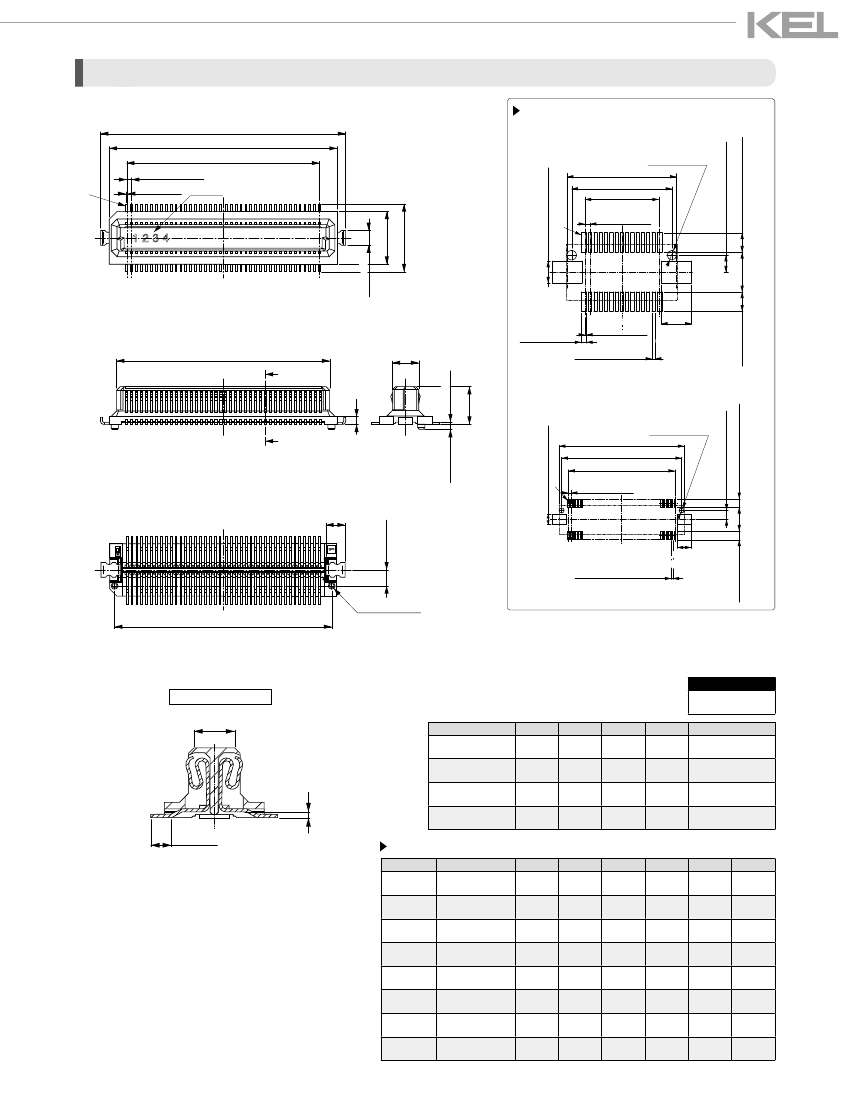

Mating Drawing
◆Stacked
Mating
Part Number
DY1
□
-
□□□
S-1-
□
DY1
□
-
□□□
S-2
DY1
□
-
□□□
S-3
DY1
□
-
□□□
S-4
DY1
□
-
□□□
S-5
DY1
□
-
□□□
S-6
DY1
□
-
□□□
FS-1
DY1
□
-
□□□
FS-2
DY1
□
-
□□□
FS-3
DY1
□
-
□□□
FS-4
A
◆Vertical
Mating
DY1
□
-
□□□
L
Ref 1.25(0.049)
9(0.354)
Ref. 1.25(0.049)
A
Ref. 5.5
(0.217)
DY0
□
-
□□□
S-
□
-
□□
6.3(0.248)
DY1
□
-
□□□
L
Ref 1.25(0.049)
9(0.354)
Ref. 9.6(0.378)
Ref. 5.5
(0.217)
DY0
□
-
□□□
S-
□
-
□□
6.3(0.248)
Ref. 2.9
(0.114)
Ref. 0.8(0.031)
Ref. 6.8(0.268)
Ref. 2.9
(0.114)
DY1
□
-
□□□
S-
□
-
□
DY1
□
-
□□□
FS-
□
Ref. 0.8(0.031)
Ref. 6.8(0.268)
DY0
□
-
□□□
S-
□
-
□□
5(0.197)
6(0.236)
7(0.276)
8(0.315)
9(0.354)
10(0.394)
11(0.433)
12(0.472)
13(0.512)
14(0.551)
Ref. 9.6(0.378)
Ref. 1.25(0.049)
A
DY0
□
-
□□□
S-
□
-
□□
Unit：
mm(inch)
