SINGLE STAGE PRIMARY SIDE REGULATION PFC CONTROLLER
FOR DIMMABLE LED DRIVER
Description
The AP1690 is a high performance AC/DC universal input Primary
Side Regulation Power Factor Controller for dimmable LED driver
applications.
The AP1690 provides accurate constant current (CC) regulation while
removing the opto-coupler and secondary control circuitry. It also
eliminates the need of loop compensation circuitry while maintaining
stability. The AP1690 achieves excellent regulation and high
efficiency, yet meets the requirement of IEC61000-3-2 harmonic
standard.
The AP1690 features low start-up current, low operation current and
high efficiency. It also has rich protection features including over
voltage, short circuit, over current, over temperature protection etc. In
order to regulate the output current of LED current with the phase of
dimmer, pin 2 and pin 3 are used to set the peak current of
transformer according to the voltage applied to these two pins.
The AP1690 is available in SO-8 package.

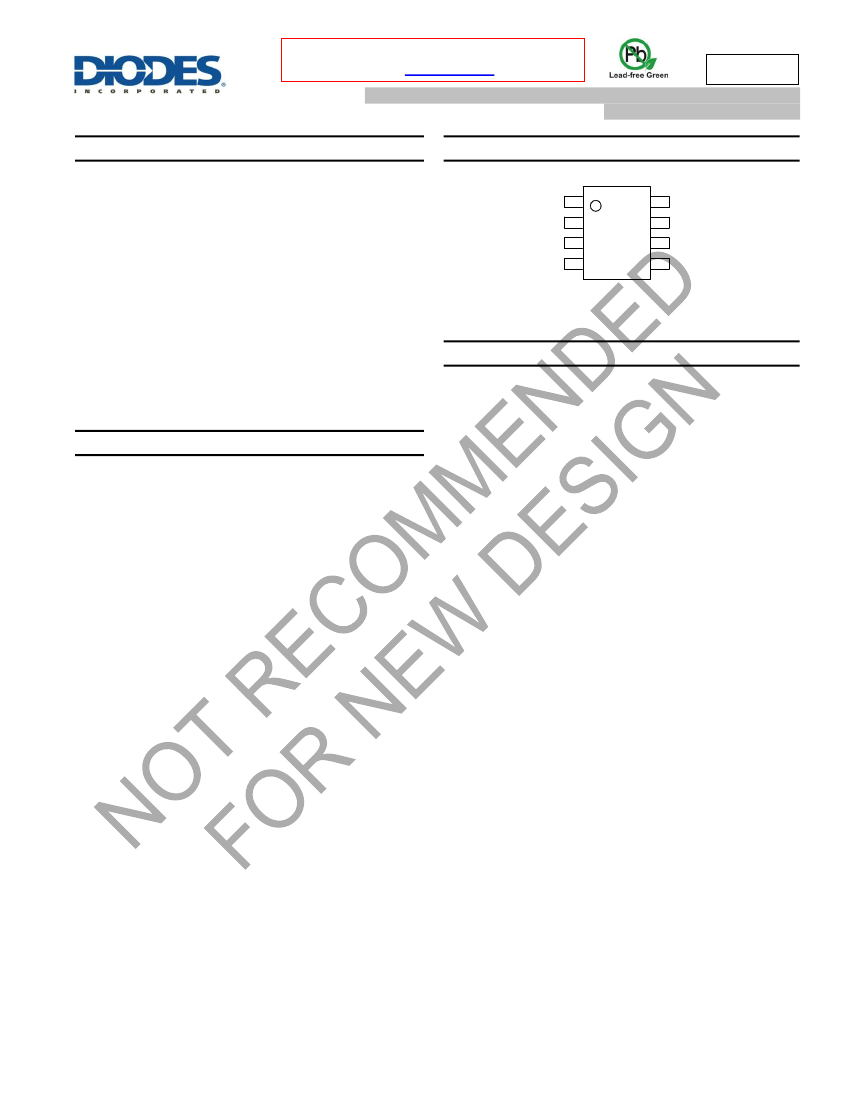

Pin Assignments
(Top View)
NC
PD
DIM
CS
1
2
3
4
8
7
6
5
VCC
OUT
GND
FB
(SO-8)
Applications
Single Stage Power Factor Correction Power Supply for
Dimmable LED Lighting
Features
Primary Side Control for Output Current Regulation Without
Opto-coupler and Secondary CV/CC Control Circuitry
Low Start-up Current
Good Dimmer Compatibility
Tight CC Regulation Performance for Universal Input Mains
Voltage Range
Eliminates Control Loop Compensation Circuitry
Built-in Acceleration Start
LED Open Protection
LED Short Circuit Protection
Over Temperature Protection
Over Current Protection
Cost Effective for Dimmable LED Driver Solution
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
AP1690
Document number: DS36469 Rev. 3 - 3
1 of 10
www.diodes.com
April 2018
© Diodes Incorporated

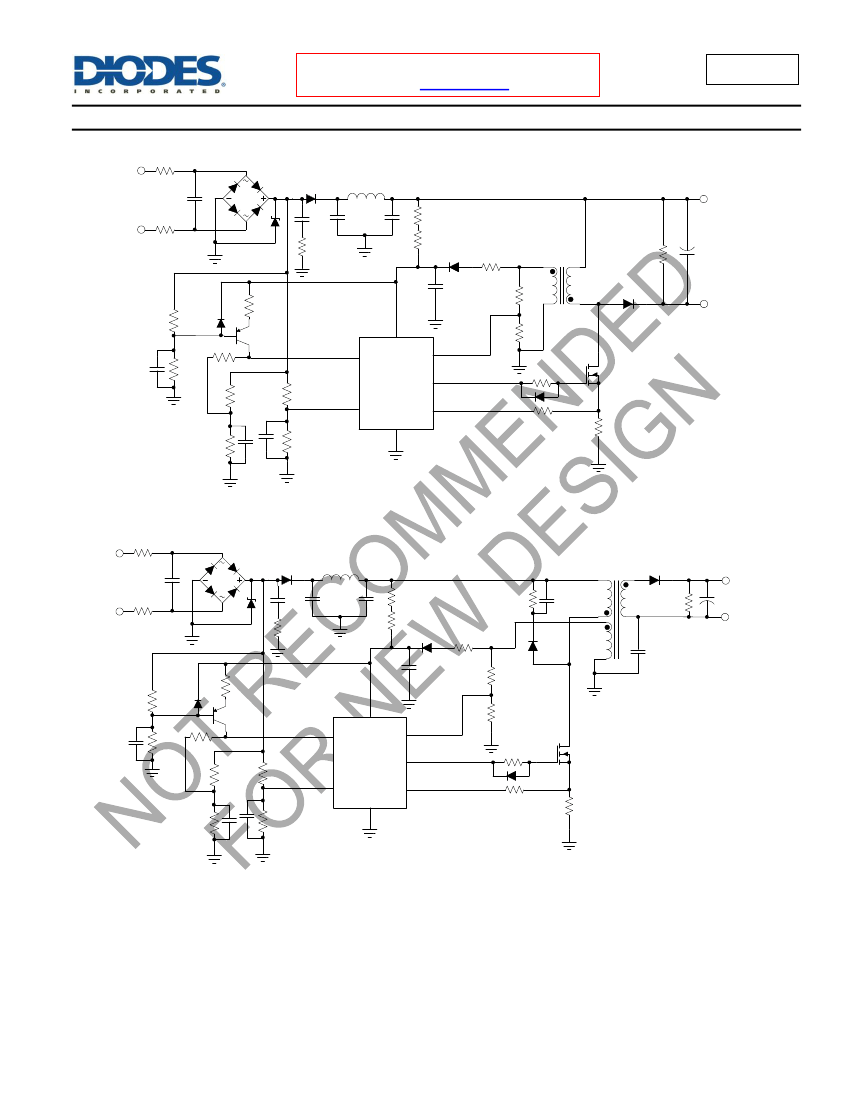

NOT RECOMMENDED FOR NEW DESIGN
USE
AP1694AS-13
AP1690
Pin Descriptions
Pin Number
1
2
3
4
5
6
7
8
Pin Name
NC
PD
DIM
CS
FB
GND
OUT
VCC
No connection
The rectified input voltage sensing pin. The pin is detecting the phase of dimmer
The rectified input voltage sensing pin. The pin is detecting the average AC input voltage
Primary current sensing
This pin captures the feedback voltage from the auxiliary winding. FB voltage is used to control no
load output voltage and determine acceleration stop point at start-up phase
Ground. Current return for gate driver and control circuits of the IC
Gate driver output
Supply voltage of gate driver and control circuits of the IC
Function

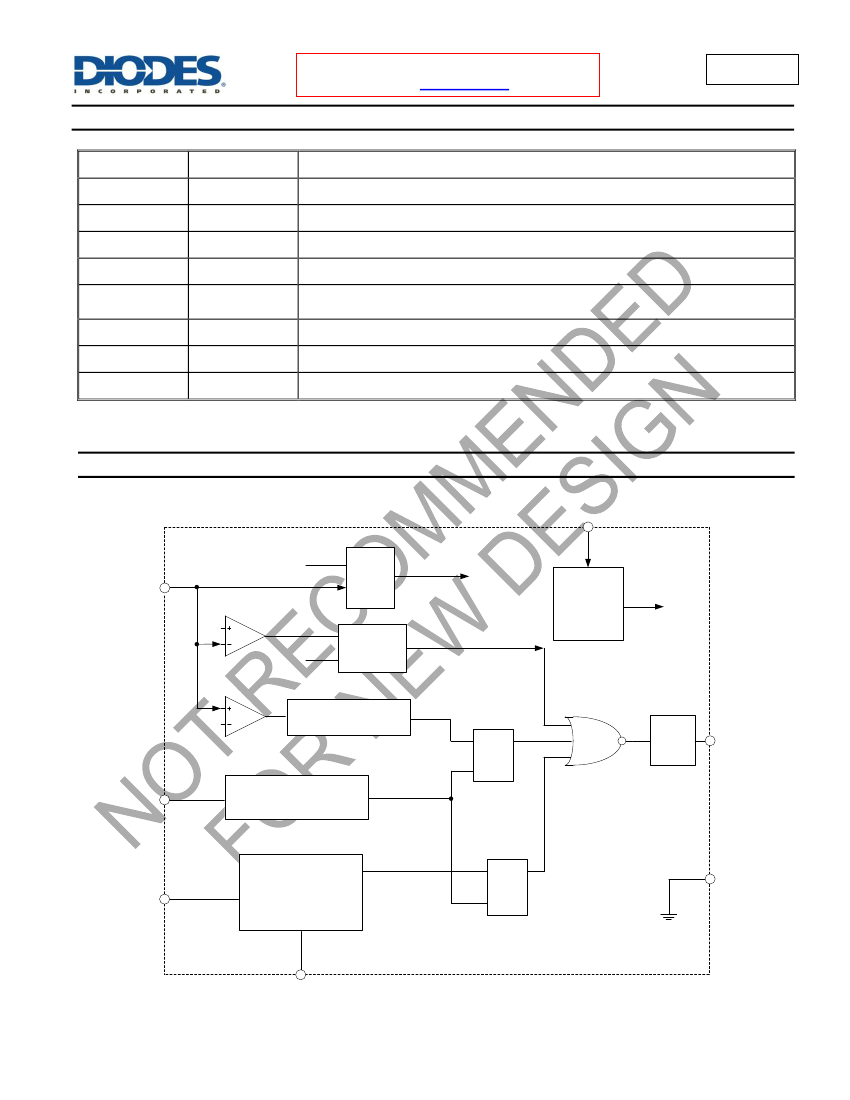

Functional Block Diagram
VCC
8
UVLO
pro
FB
5
OVP
0.1V
COMP
Regulator
&
Bias
Tons
UVLO
PFM
Tonsec
Detector
1.8V
EA
Acceleration Start
Control
R
S
Q
CV_CTRL
PFM
Driver
7
OUT
CS
4
Peak Current Control
& LEB
R
Q
CC_CTRL
6
PD
2
Dimming Control
S
GND
3
DIM
AP1690
Document number: DS36469 Rev. 3 - 3
3 of 10
www.diodes.com
April 2018
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE
AP1694AS-13
AP1690
Absolute Maximum Ratings
(Note 4)
Symbol
V
CC
I
OUT
V
PD
, V
DIM
, V
CS
V
FB
T
J
T
STG
T
LEAD
P
D
θ
JA
–
–
Power Supply Voltage
Driver Output Current
Voltage at PD, DIM, CS
FB Input Voltage
Operating Junction Temperature
Storage Temperature
Lead Temperature (Soldering, 10 sec)
Power Dissipation at T
A
= +50C
Thermal Resistance (Junction to Ambient)
ESD (Machine Model)
ESD (Human Body Model)
Parameter
Rating
-0.3 to 30
300
-0.3 to 7
-40 to 10
+150
-65 to +150
+300
0.65
190
200
3000
Unit
V
mA
V
V
º
C
º
C
º
C
W
C/W
V
V
Note 4: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied.
Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions
Symbol
V
CC
T
A
Power Supply Voltage
Ambient Temperature
Parameter
Min
9
-40
Max
21
+105
Unit
V
º
C
AP1690
Document number: DS36469 Rev. 3 - 3
4 of 10
www.diodes.com
April 2018
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE
AP1694AS-13
AP1690
Electrical Characteristics
(@V
CC
= 15V, T
A
= +25° unless otherwise specified.)
C,
Symbol
UVLO Section
V
TH
(ST)
V
OPR
(Min)
V
CC_OVP
Standby Current Section
I
ST
I
CC
(Max)
Drive Output Section
V
OH
V
OL
t
R
t
F
V
O-CLAMP
Current Sense Section
t
ON
(Min)
V
SOCP
Feedback Input Section
I
FB
V
FB
(ACC)
V
FB
(OVP)
Dimming Section
V
IN
PD Pin and DIM Pin Input
Voltage Range
–
–
3
6
V
FB Pin Input Leakage Current
Acceleration Start Threshold
Over Voltage Protection
V
FB
= 4V
–
–
–
1.4
4.5
2
1.8
6
8
2.2
7.5
µA
V
V
Minimum On Time
Short Circuit Protection
Voltage
–
–
500
3
750
4
1000
–
ns
V
Output High Level Voltage
Output Low Level Voltage
Output Voltage Rise Time
Output Voltage Fall Time
Output Clamp Voltage
I
GD-SOURCE
= 20mA
V
CC
= 12V
I
GD-SINK
= 20mA
V
CC
= 12V
C
L
= 1nF
C
L
= 1nF
I
GD-SOURCE
= 5mA
V
CC
= 20V
10
–
100
30
12
–
–
140
60
13.5
–
1
190
90
15
V
V
ns
ns
V
Start-up Current
Maximum Operating Current
V
CC
= V
TH
(ST)-0.5V,
Before start up
V
PD
= V
DIM
= 3V
–
–
–
1500
100
µA
2000
Start-up Threshold
Minimal Operating Voltage
VCC OVP Voltage
–
After turn on
–
18
7
28
19
8
32
20
9
36
V
Parameter
Conditions
Min
Typ
Max
Unit
AP1690
Document number: DS36469 Rev. 3 - 3
5 of 10
www.diodes.com
April 2018
© Diodes Incorporated
