LCD15-24S12-E Overview

Power Supply Module,

LCD15-24S12-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1154944484
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum input voltage	36 V
Minimum input voltage	18 V
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	1.3 A
Nominal output voltage	12 V
Package body material	METAL
Encapsulate equivalent code	MODULE,5LEAD,.8
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Temperature level	INDUSTRIAL

Preview

Download Datasheet

View All

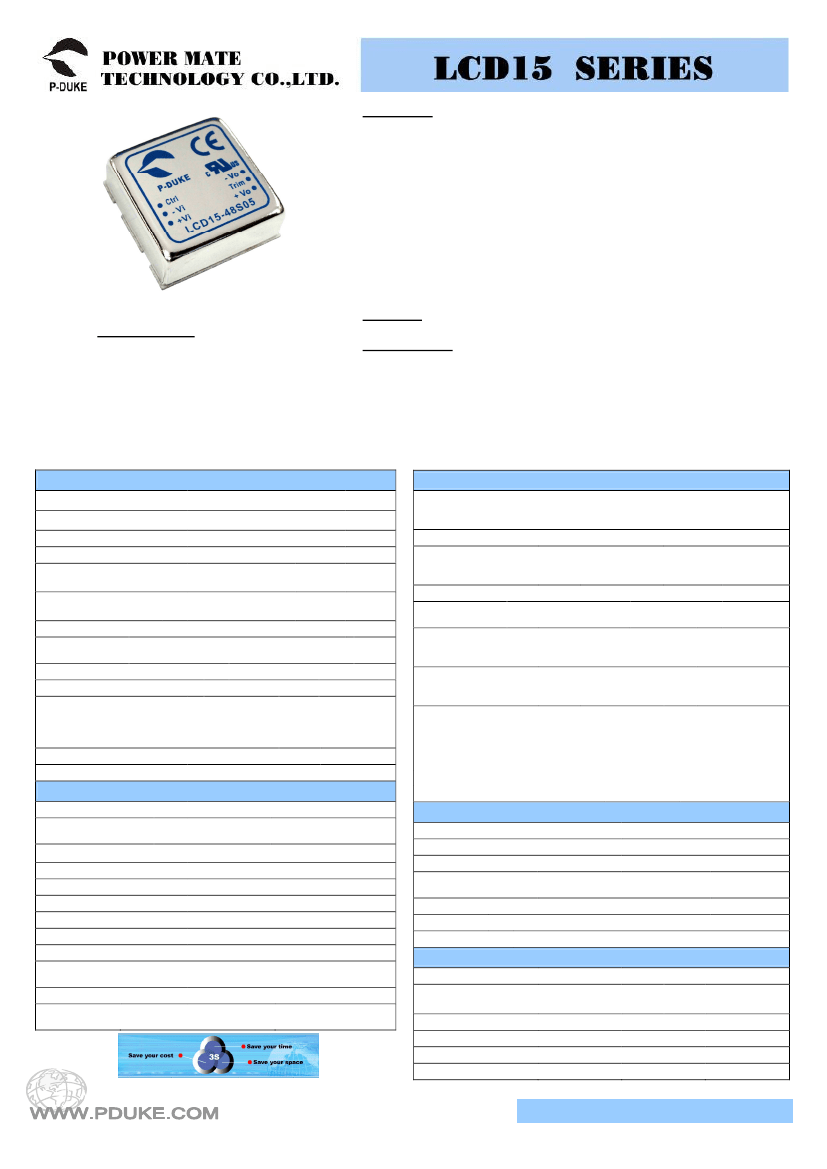

FEATURES

•

15 WATTS MAXIMUM OUTPUT POWER

•

SINGLE OUTPUT UP TO 4A

•

SMALL SIZE AND LOW PROFILE：1.0 x 1.0 x 0.39 Inch

：

•

HIGH EFFICIENCY UP TO 89%

•

2:1 WIDE INPUT VOLTAGE RANGE

•

SIX-SIDED CONTINUOUS SHIELD

•

FIXED SWITCHING FREQUENCY

•

INPUT TO OUTPUT ISOLATION:1600VDC

•

INDUSTRY STANDARD PIN-OUT FEC15 SERIES COMPATIBLE

•

CE MARK MEETS 2006/95/EC, 93/68/EEC AND 2004/108/EC

•

UL60950-1, EN60950-1 AND IEC60950-1 LICENSED

•

ISO9001 CERTIFIED MANUFACTURING FACILITIES

•

COMPLIANT TO RoHS EU DIRECTIVE 2011/65/EU

APPLICATIONS

Wireless Network

Telecom/Datacom

Industry Control System

Measurement Equipment

Semiconductor Equipment

OPTIONS

Positive logic Remote On/Off, Without trim, Without CTRL pin

DESCRIPTION

LCD15 DC/DC converters provide up to 15 watts of output power in an industry

standard package and footprint. These units are specifically designed to meet the

power needs of low profile. All models feature with 2:1 wide input voltage of 9~18

VDC, 18~36 VDC and 36~75VDC, comprehensively protected against over-current,

over-voltage and input under-voltage protection conditions, and trimmable output

voltage.

T E C H N I C A L S P E C I F I C AT I O N

OUTPUT SPECIFICATIONS

Output power

Voltage accuracy

Minimum load

Voltage adjustability (Note 6)

All specifications are typical at nominal input, full load and 25ºC otherwise noted

INPUT SPECIFICATIONS

15 Watts

±1%

Input voltage range

Input filter

Input surge voltage

12VDC nominal input

24VDC nominal input

48VDC nominal input

9 ~ 18VDC

18 ~ 36VDC

36 ~ 75VDC

Pi type

36VDC 100ms, max.

50VDC 100ms, max.

100VDC 100ms, max.

30mAp-p

Power up

30ms, max.

Remote ON/OFF

30ms, max.

9VDC, max.

18VDC, max.

36VDC, max.

8VDC

14.5VDC

30.5VDC

±10%

± 0.2%

Line regulation

LL to HL at Full Load Single

± 0.5%

Dual

± 0.2%

Load regulation

No Load to Full Load Single

± 1.0%

Dual

Cross regulation (Dual) Asymmetrical load 25% / 100% FL

± 5%

20MHz bandwidth

See

Ripple and noise

(Measured with a 1µF M/C and a 10µF T/C) table

±0.02%

/ ºC, max.

Temperature coefficient

Transient response recovery time 25% load step change

250µS

3.3VDC output

3.7VDC~5.4VDC

Over voltage protection

5VDC output

5.6VDC~7.0VDC

12VDC output

13.5VDC~19.6VDC

15VDC output

16.8VDC~20.5VDC

Over load protection

% of FL at nominal input

150%

Short circuit protection

Hiccup, automatics recovery

GENERAL SPECIFICATIONS

Efficiency

Isolation voltage

Isolation resistance

Input to Output

Input(Output) to Case

See table

1600VDC, min. 1minute

1000VDC, min. 1minute

12VDC input

24VDC input

48VDC input

Input reflected ripple current

Nominal input and

Start up time

constant resistive load

12VDC input

Start-up voltage

24VDC input

48VDC input

12VDC input

Shutdown voltage

24VDC input

48VDC input

Remote ON/OFF (Note 7)

Positive logic(Option)

DC-DC ON

Open or 3 V < Vr < 15V

DC-DC OFF

Short or 0V < Vr < 1.2V

DC-DC ON

Negative logic(Standard)

Short or 0V < Vr < 1.2V

DC-DC OFF

Open or 3V < Vr < 15V

Input current of Remote control pin

Nominal input

-0.5mA~1.0mA

Remote off state input current

Nominal input

2.5mA

ENVIRONMENTAL SPECIFICATIONS

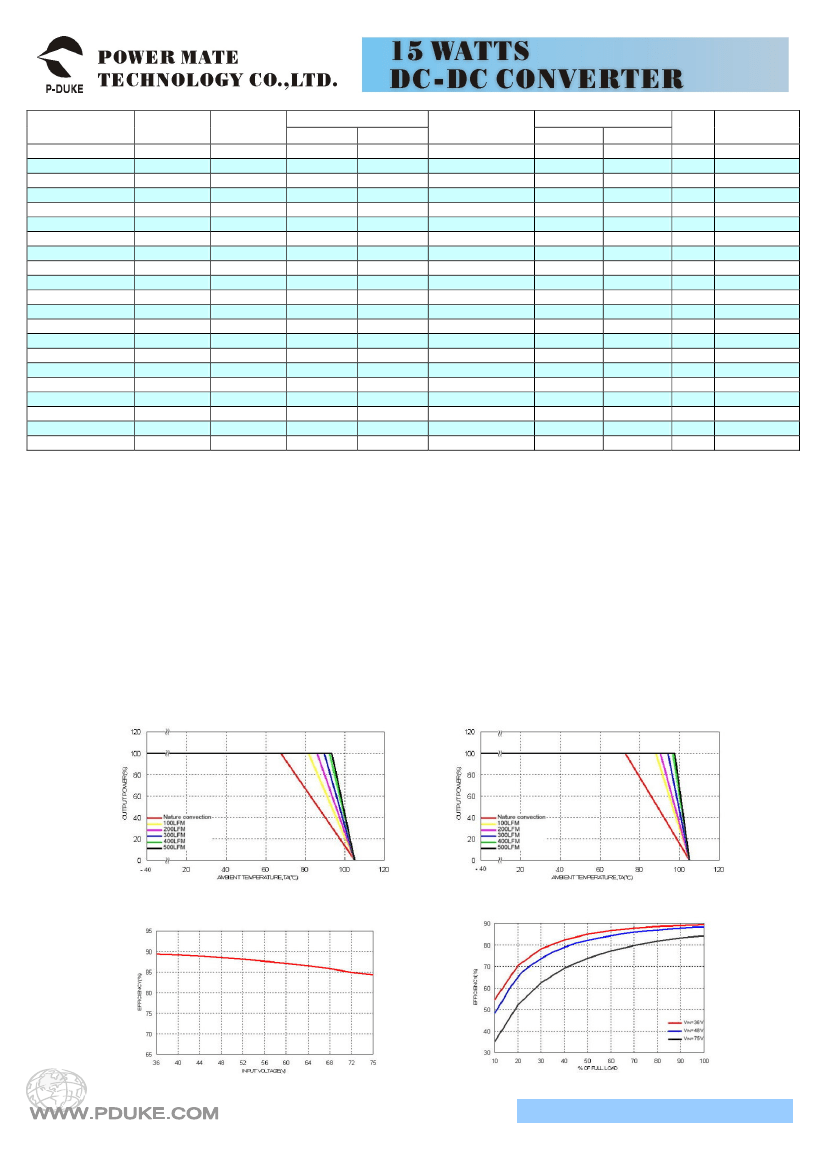

Operating ambient temperature

-40ºC ~ +85ºC (with derating)

Maximum case temperature

+105ºC

Storage temperature range

-55ºC ~ +125ºC

Thermal impedance

Natural convection

18.2ºC/Watt

(Note 8)

Natural convection with heat-sink

15.8ºC/Watt

Thermal shock

MIL-STD-810F

Vibration

MIL-STD-810F

Relative humidity

5% to 95% RH

10 ohms, min.

Isolation capacitance

1000pF, max.

Switching frequency

400KHz±10%

Approvals and standard

IEC60950-1, UL60950-1, EN60950-1

Case material

Nickel-coated copper

Base material

FR4 PCB

Potting material

Epoxy (UL94-V0)

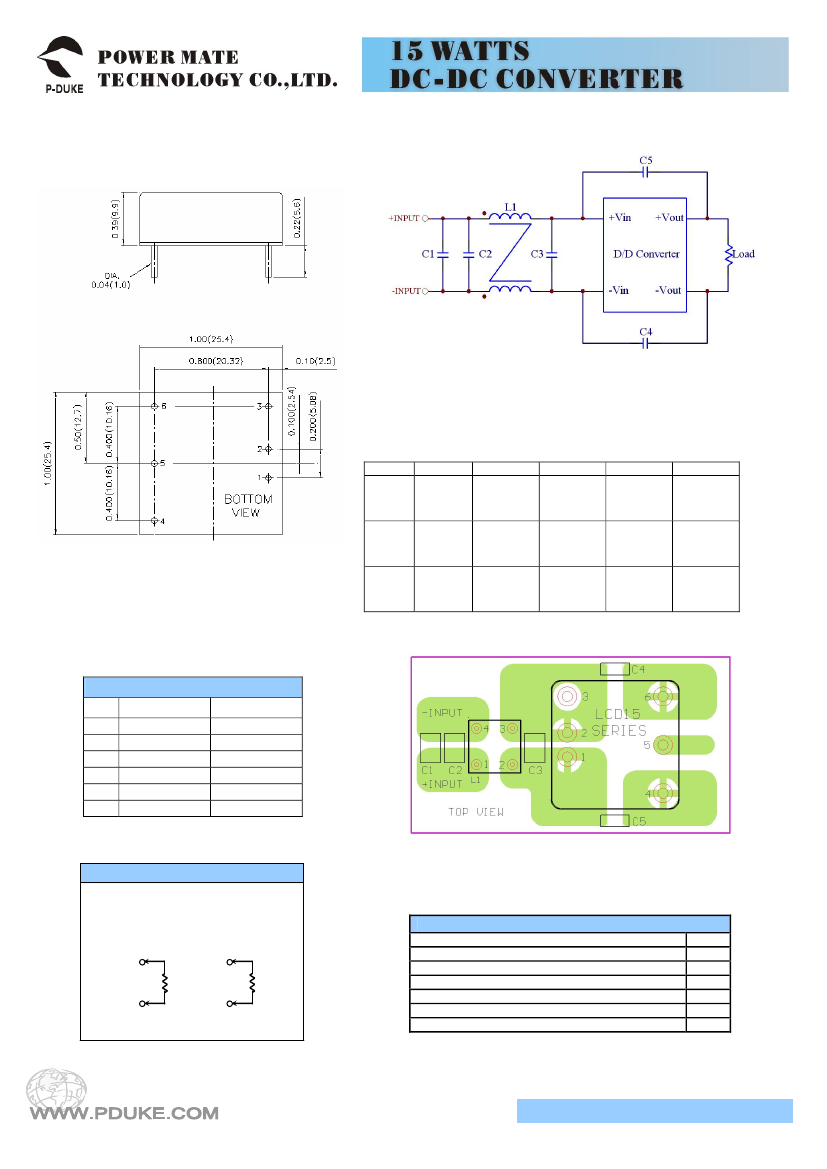

1.0 X 1.0 X 0.39 Inch

Dimensions

(25.4 X 25.4 X 9.9 mm)

Weight

15g(0.53oz)

BELLCORE TR-NWT-000332

1.330x10

hrs

MTBF (Note 1)

MIL-HDBK-217F

5.630x10

hrs

EMC CHARACTERISTICS

EMI (Note 9)

ESD

Radiated immunity

Fast transient (Note 10)

Surge (Note 10)

Conducted immunity

EN55022

EN61000-4-2

EN61000-4-3

EN61000-4-4

EN61000-4-5

EN61000-4-6

Air

8KV

Contact

6KV

10 V/m

2KV

1KV

Class A

Perf. Criteria A

3 Vr.m.s Perf. Criteria A

Page 1 of 3 Issued Date：2012/10/16
