Photoelectric sensors
W100-2, Photoelectric proximity sensor, Background blanking
Type
Part No.
> WT100-2N1419
> 6052375
At a glance
• Standard miniature housing with integrated M3 threaded mounting holes
• Bright emitted light spot and clearly visible indicator LEDs
• Light/dark switching and sensitivity adjustment possible
• Effective background blanking
Your benefits
• Straightforward alignment thanks to bright light spot and clearly visible indicator
LEDs
• Compatibility with a number of common mounting systems due to standard
housing with 1-inch hole spacing and integrated M3 threaded mounting hole
• Highly reliable and durable despite optical interference and mechanical loads
• Precise detection, irrespective of reflective objects and backgrounds

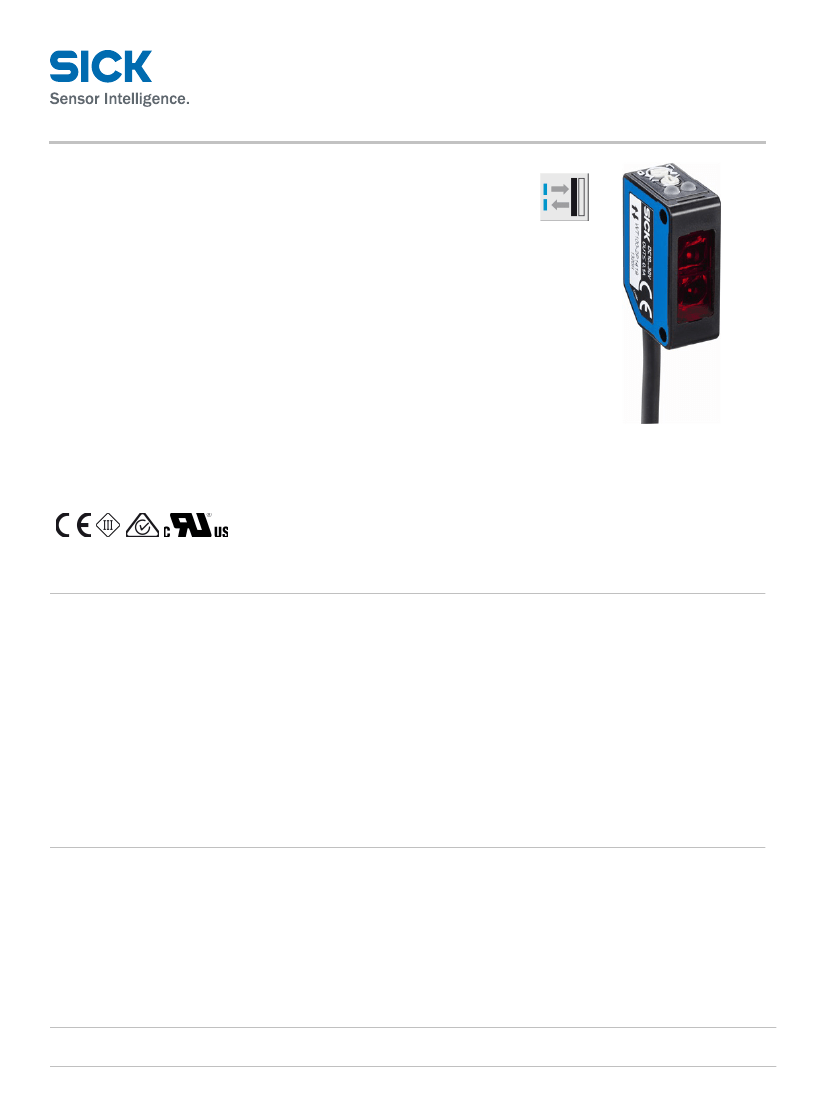

Illustration may differ
Features
Sensor/detection principle:
Dimensions (W x H x D):
Housing design (light emission):

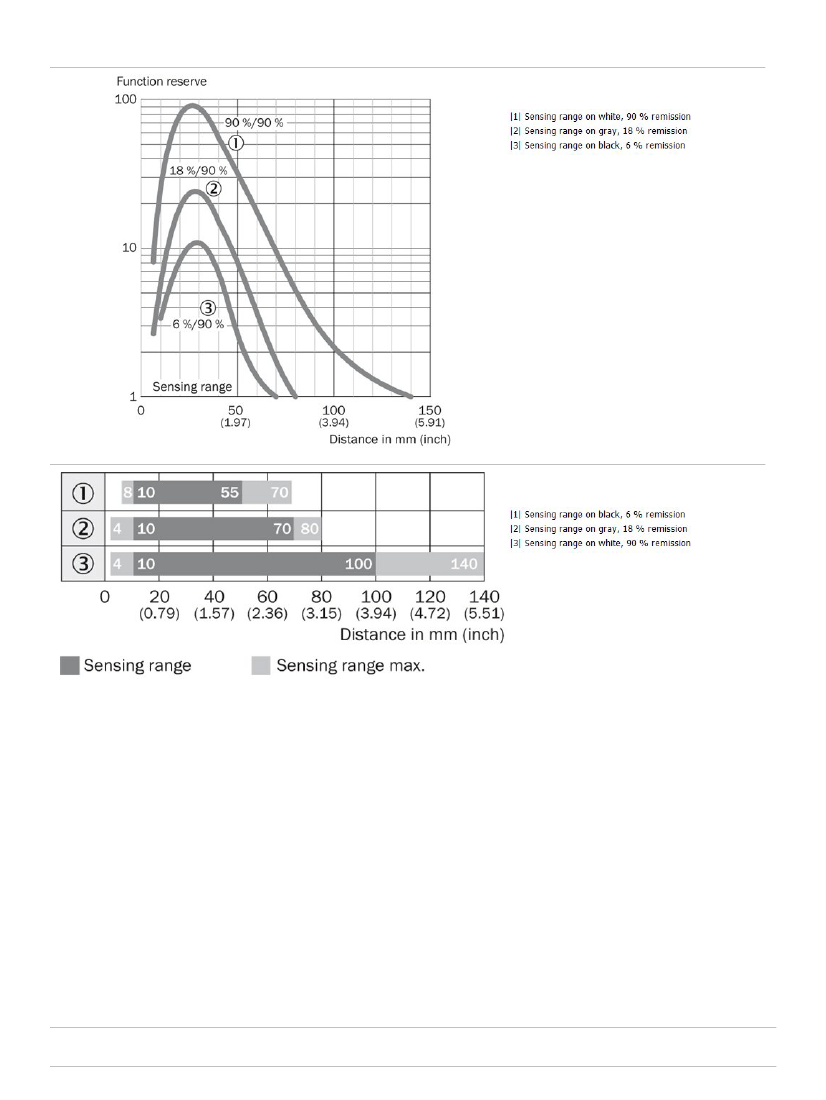

Sensing range max.:
Sensing range:
Type of light:
Light source:
Wave length:
Adjustment:
Light spot size (distance):
1) 2)
Photoelectric proximity sensor, Background blanking
11 mm x 31 mm x 20 mm
Rectangular
1)
4 mm ... 140 mm
2)
10 mm ... 100 mm
Visible red light
3)
LED
632 nm
Potentiometer
Ø 8 mm (90 mm)
3)
Average service life of 100,000 h at T = +25 °C
A
Object with 90 % reflectance (referred to standard white, DIN 5033)
Mechanics/electronics
Supply voltage:
Ripple:
Current consumption:
Output type:
Switching mode:
Switching mode selector:
Output current Imax.:
10 V DC ... 30 V DC
2)
± 10 %
3)
≤ 30 mA
NPN
Light/dark switching
Selectable via light/dark rotary switch
100 mA
1)
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA2/15/2016 2:36:49 AM
Response time:
Switching frequency:

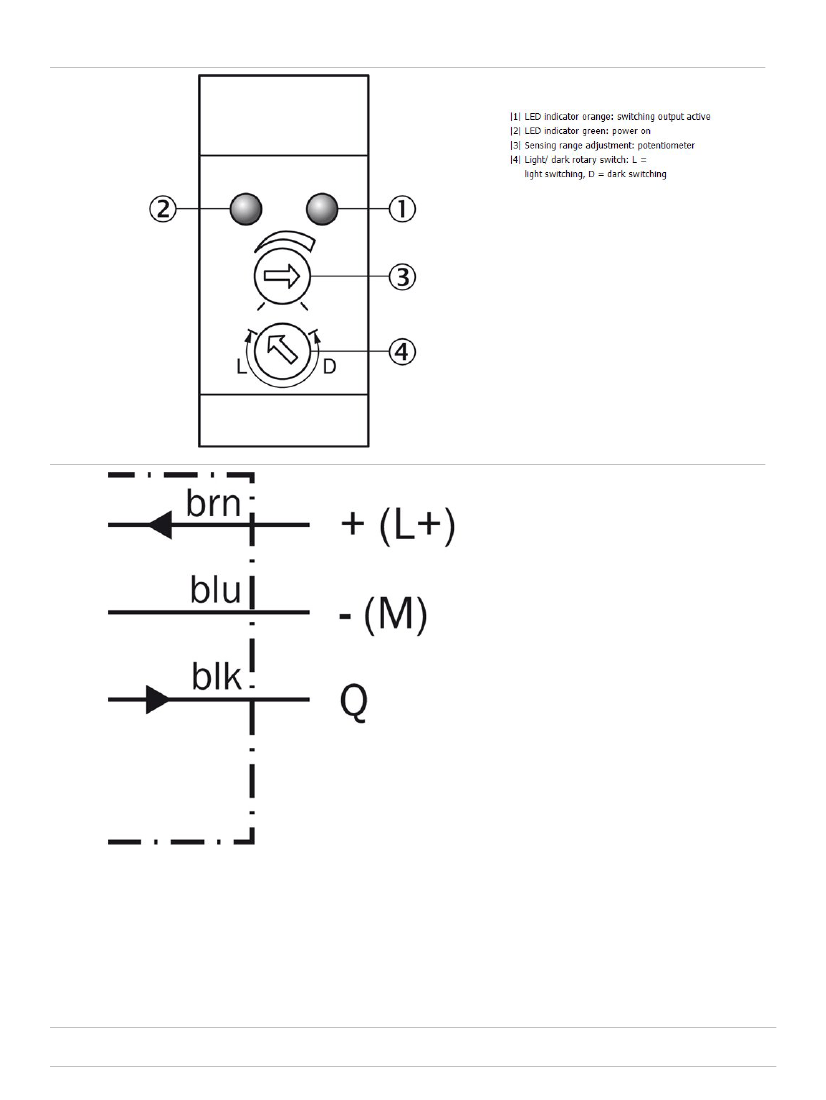

Connection type:
Cable material:
Conductor cross-section:
Circuit protection:::
Protection class:
Special device:
Optics material:
Enclosure rating:
Items supplied:
Ambient operating temperature:
Ambient storage temperature:
Signal voltage NPN HIGH/LOW:
Housing material:
1)
≤ 0.5 ms
5)
1,000 Hz
6)
Cable, 3-wire, 2 m
PVC
0.18 mm²
7) 8) 9)
A, B, D
III
-
PMMA
IP 67
Mounting bracket BEF-W100-A
-25 °C ... +55 °C
-40 °C ... +70 °C
Approx. VS ∕ < 1.8 V
ABS/PC/POM, Plastic
4)
2)
3)
4)
5)
6)
Limit values
May not exceed or fall short of V tolerances
Without load
Signal transit time with resistive load
With light/dark ratio 1:1
Do not bend
S
7)
8)
9)
below 0 °C
A = V connections reverse-polarity protected
B = output reverse-polarity protected
D = outputs overcurrent and short-circuit protected
S

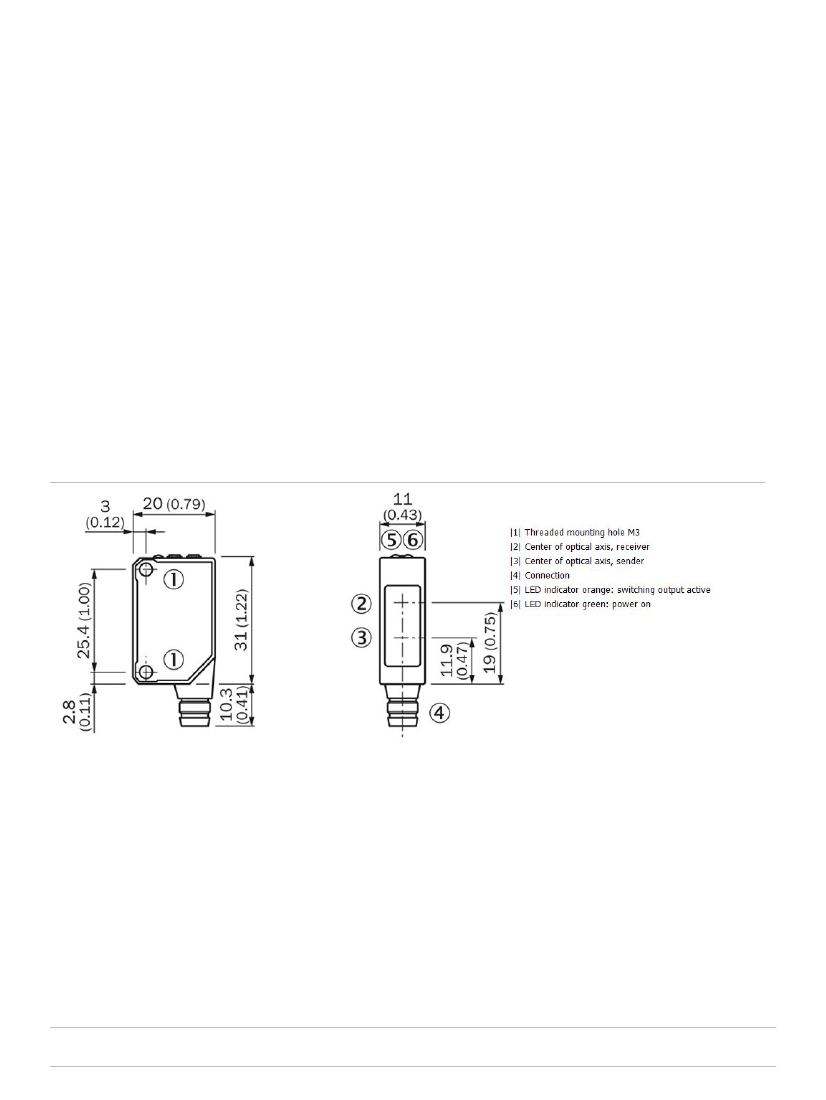

Dimensional drawing
