STL30-24-STU

Description
Board Connector, 24 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size127KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

STL30-24-STU Overview

Board Connector, 24 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

STL30-24-STU Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304291077
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.1 inch
subject depth0.189 inch
body length2.4 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial number430
Plug contact pitch0.1 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.126 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts24

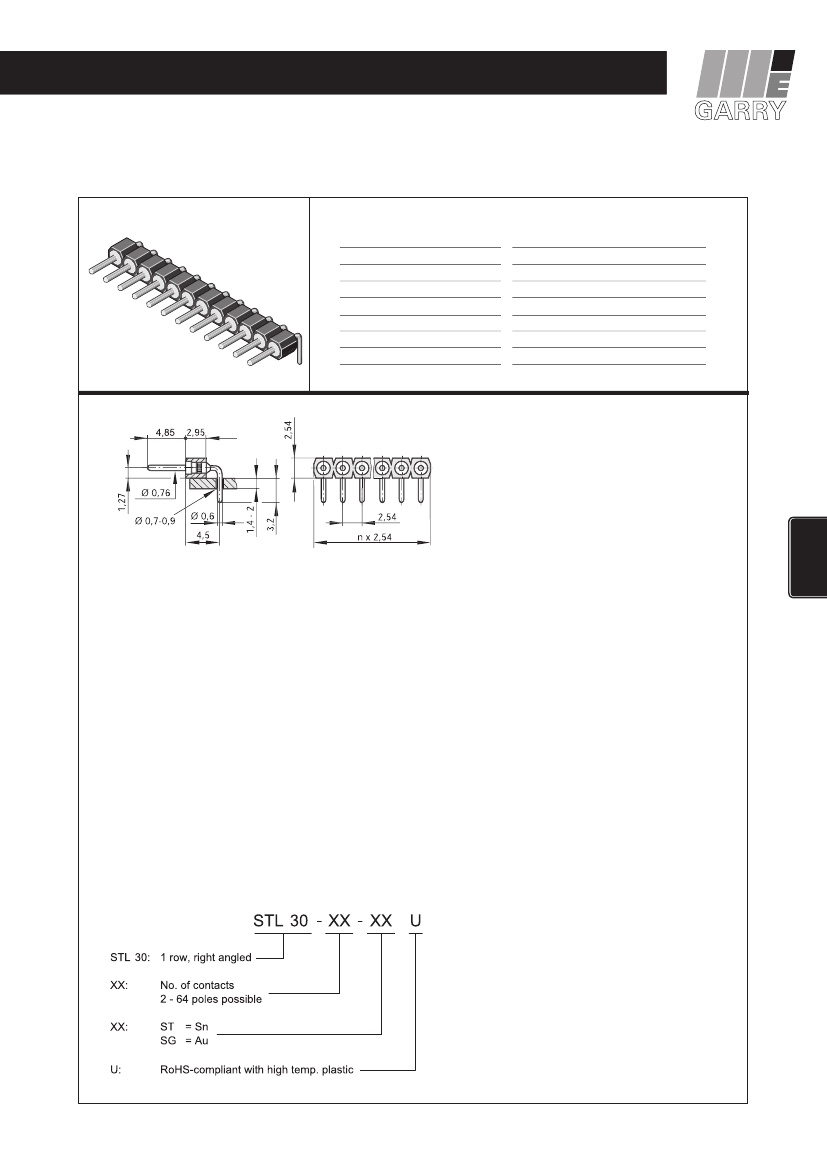

PRODUCT GROUP 7 -
MALE AND FEMALE HEADER 2,54/2,50/2,39 mm
PIN HEADER „PRECISION“
ID: 106
STL 30-XX
Series 430
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
2,54 mm
high temp. thermoplast UL94V-0
Brass
3 Amp.
100 V
RMS
/150 V
DC
min. 1000 V
RMS
-55°C to +125°C
260°C for 10 seconds
All dimensions in mm.
Other dimensions upon request.
