Part Number

Search

9R9855-01-28-30

Description
Board Connector, 56 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size150KB,2 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Download Datasheet Parametric View All

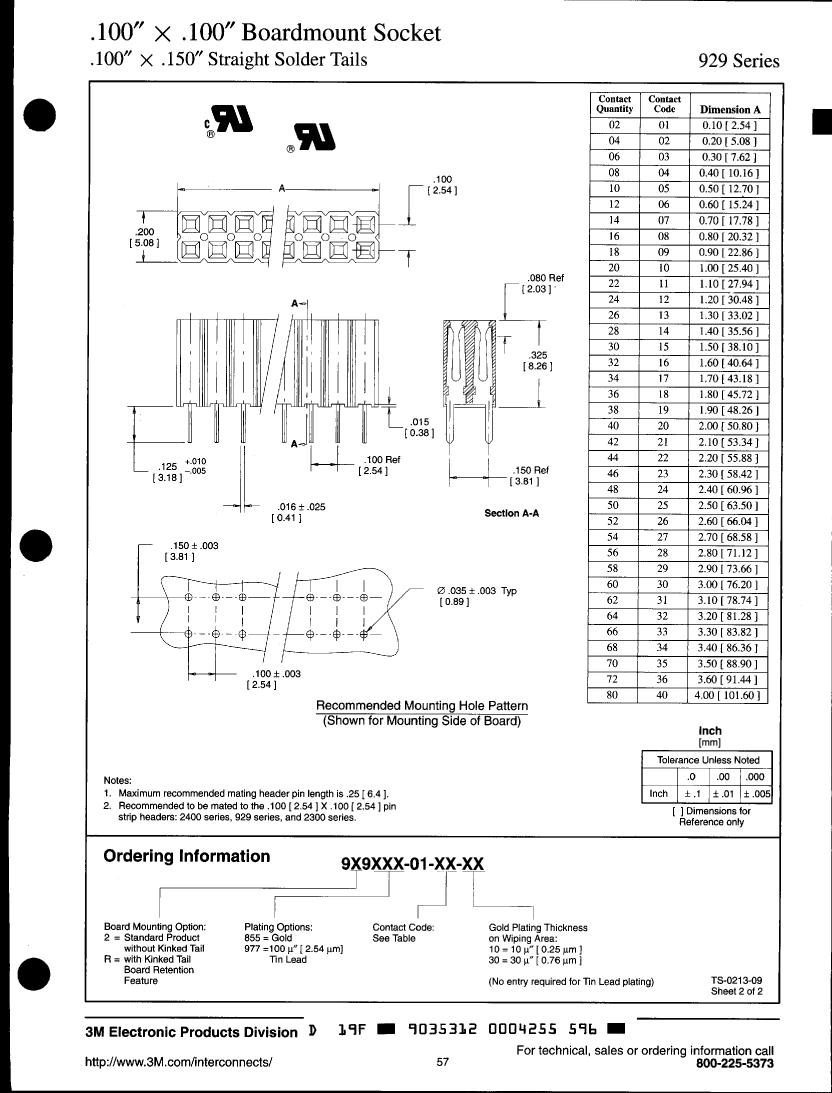

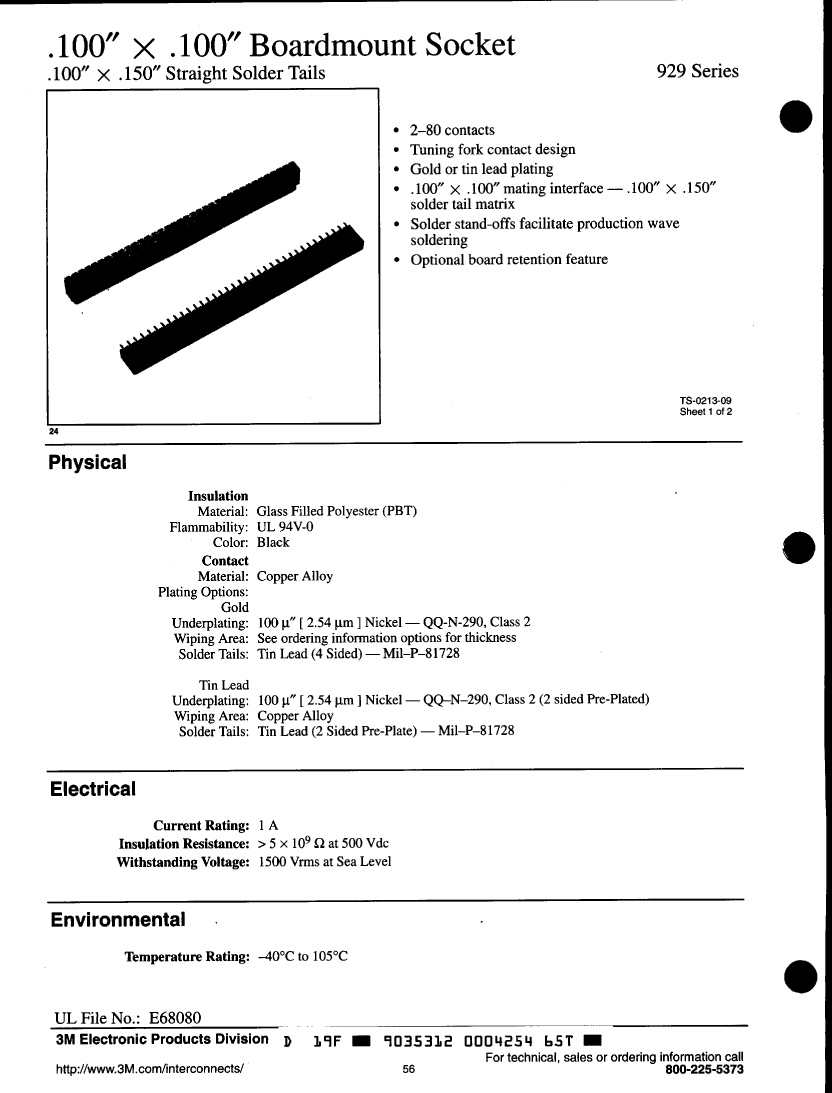

9R9855-01-28-30 Overview

Board Connector, 56 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug

9R9855-01-28-30 Parametric

Parameter NameAttribute value
Objectid301694892
Reach Compliance Codeunknown
ECCN codeEAR99
subject depth0.325 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number929
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing3.81 mm
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch2.54 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts56
