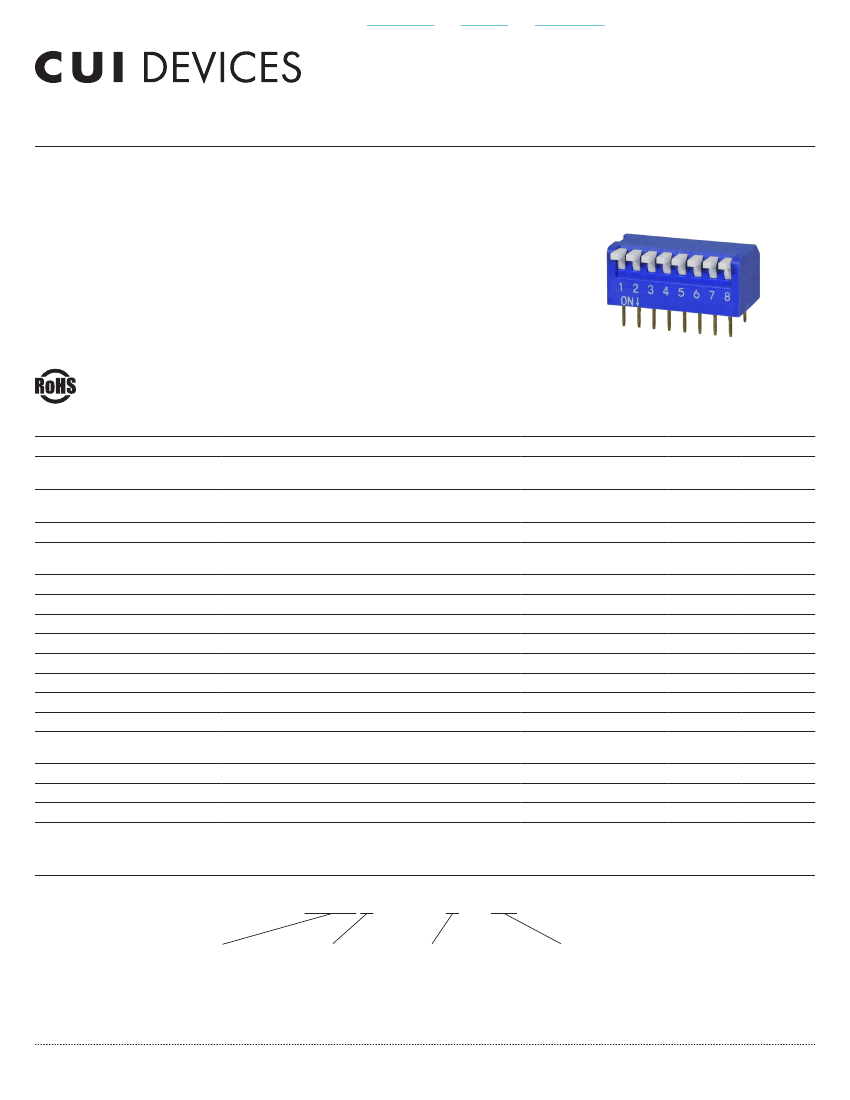

SERIES:
DS02-254
│
DESCRIPTION:
DIP SWITCH
FEATURES
• 2.54 mm pitch
• convex or flat bottom option
• 2~12 pole options
• raised or flat actuator option
• through hole
SPECIFICATIONS
parameter
rated voltage (per pole)
rated current (per pole)
withstanding voltage
contact resistance
insulation resistance
operating force
switch travel angle
operating temperature
storage temperature
life
flammability rating
RoHS
UL94V-0
yes
-40
-40
2000
conditions/description
switching
non-switching
switching
non-switching
for 1 minute
initial
after life test
at 500 Vdc
100
1000
20
85
85
300
50
100
min
typ
max
24
50
25
100
units
Vdc
Vdc
mA
mA
Vac
mΩ
mΩ
MΩ
g
°
°C
°C
cycles
SOLDERABILITY
parameter
hand soldering
1
wave soldering
1
Notes:
conditions/description
for maximum 3 seconds
for maximum 5 seconds
min
315
240
typ
320
250
max
325
260
units
°C
°C
1. Keep in “off” position during soldering.
PART NUMBER KEY
DS02
X
- 254 -
X
L -
XX
BE
Base Number
Base:
“blank” = Flat
C
2
= Convex
Actuator:
1 = Raised
2 = Flat
No. of Poles:
02
07
03
08
04
10
05
12
06
Notes:
2. Convex base only available in poles 3~12.
*. Discontinued DS02C-254-2L models
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
DS02-254
│
DESCRIPTION:
DIP SWITCH
date
11/23/2021│
page
2 of 3

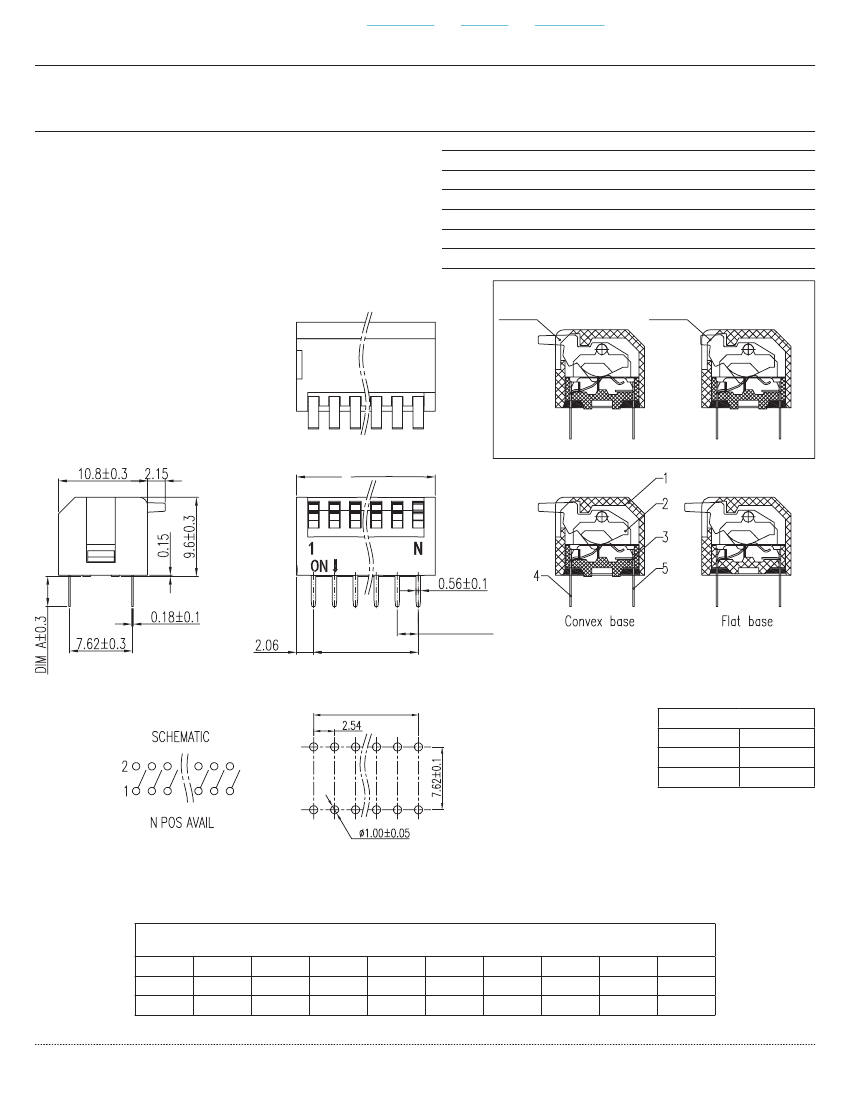

MECHANICAL DRAWING
