Technical Data
Spacing 5.08 mm

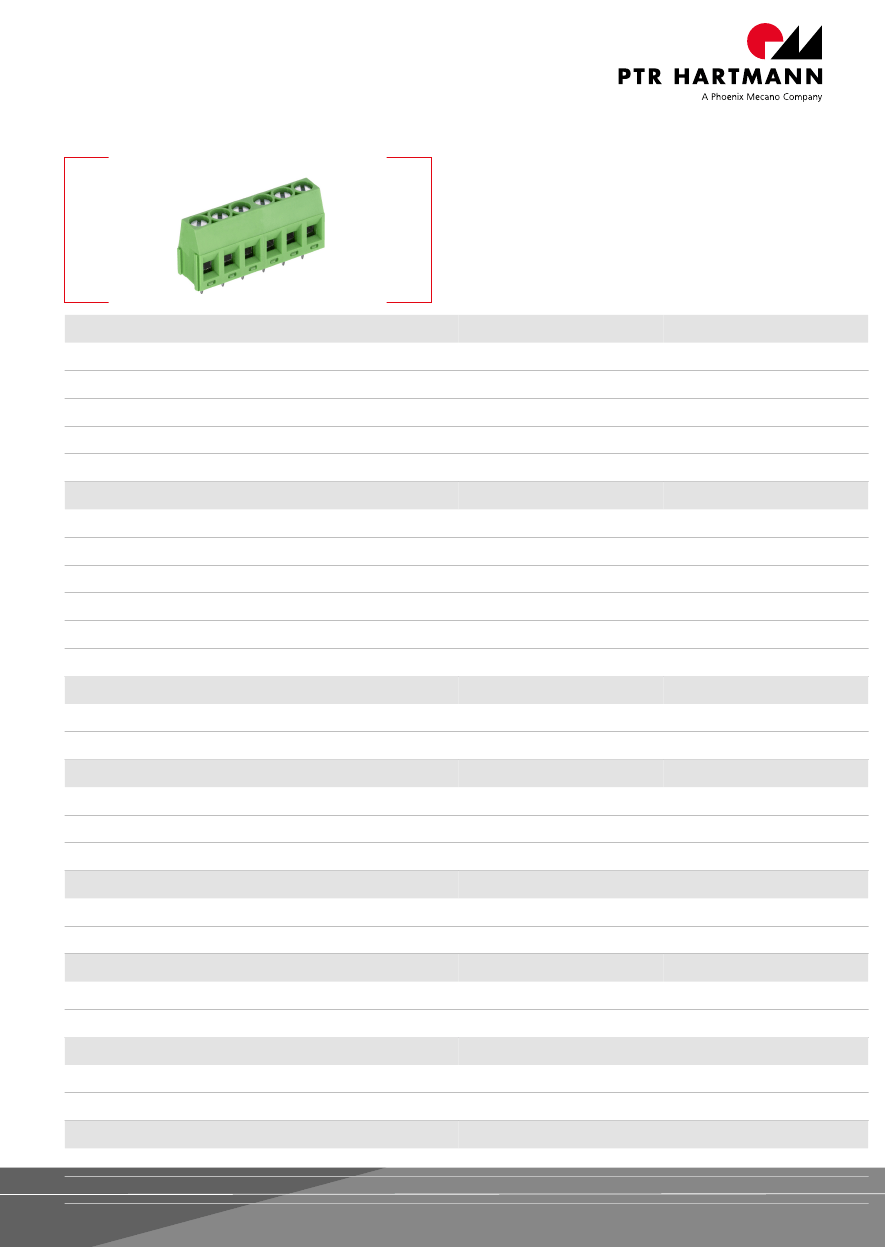

// AKZ350/..-5.08-V-GREEN
Highlights
2 to 12 poles
2 and 3 pole modules
Spacing 5.08 mm
Lift type
Wire entry parallel to PCB
Wire Sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with ferrule min
Stranded with ferrule max
Dimensions
Stripped length
PCB hole diameter
Materials
Clamp
Screw
Solder tab
Insulating Material
Material
Flammability class
Temperatures
Operating temperature (without mech. load)
Store temperature
Wave Soldering Process
Soldering temperature, recommended
Peak soldering time, recommended
Reflow Process
Soldering temperature, recommended
Peak soldering time, recommended
-
-
260 °C
3-4 s
-40 °C - 105 °C
-40 °C - 105 °C
PA 6.6
UL 94 V-0
Brass
Steel
Brass
6.0 mm
1.3 mm
0.14 mm²
2.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
1.5 mm²
PTR HARTMANN GmbH
· Gewerbehof 38 · 59368 Werne, Germany · Tel. +49 2389 7988-0 · Fax +49 2389 7988-88 · info@ptr-hartmann.com
www.ptr-hartmann.com
Technical Data
Spacing 5.08 mm
Colours
GREEN, RAL 6018
// AKZ350/..-5.08-V-GREEN
LIGHT GREY, RAL 7035
BLUE, RAL 5015
LIGHT GREEN, similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Ratings
UseGroup
Rated voltage
Rated current
Rated wire size
- solid
- stranded
Torque
Screw size
Test voltage
Accessoires
Figure
Designation
B
300 V
15 A
C
150 V
15 A
D
300 V
10 A
min
250 V
17.5 A
max
2.5 mm²
1.5 mm²
0.50 Nm
M3
2.0 kV
AWG 22-12
AWG 22-12
0.50 Nm
M3
1.60 kV
AWG 22-12
AWG 22-12
0.50 Nm
M3
1.30 kV
AWG 22-12
AWG 22-12
0.50 Nm
M3
1.60 kV
0.5 mm²
0.5 mm²
Article Number
Order Data: 50000000006
Bridge, 2-pole, insulated, BRI/2-5.0/5.08-LIGHT GREY
Bridge, 3-pole, insulated, BRI/3-5.0/5.08-LIGHT GREY
Order Data: 50000000007
Bridge, 2-pole, BR/2-5.0/5.08-L7.0
Order Data: 50000000008
PTR HARTMANN GmbH
· Gewerbehof 38 · 59368 Werne, Germany · Tel. +49 2389 7988-0 · Fax +49 2389 7988-88 · info@ptr-hartmann.com
www.ptr-hartmann.com
Technical Data
Spacing 5.08 mm
// AKZ350/..-5.08-V-GREEN
Order Data (Spacing 5.08 mm)
Number of Poles
2
3
4
5
6
7
8
9
10
11
12

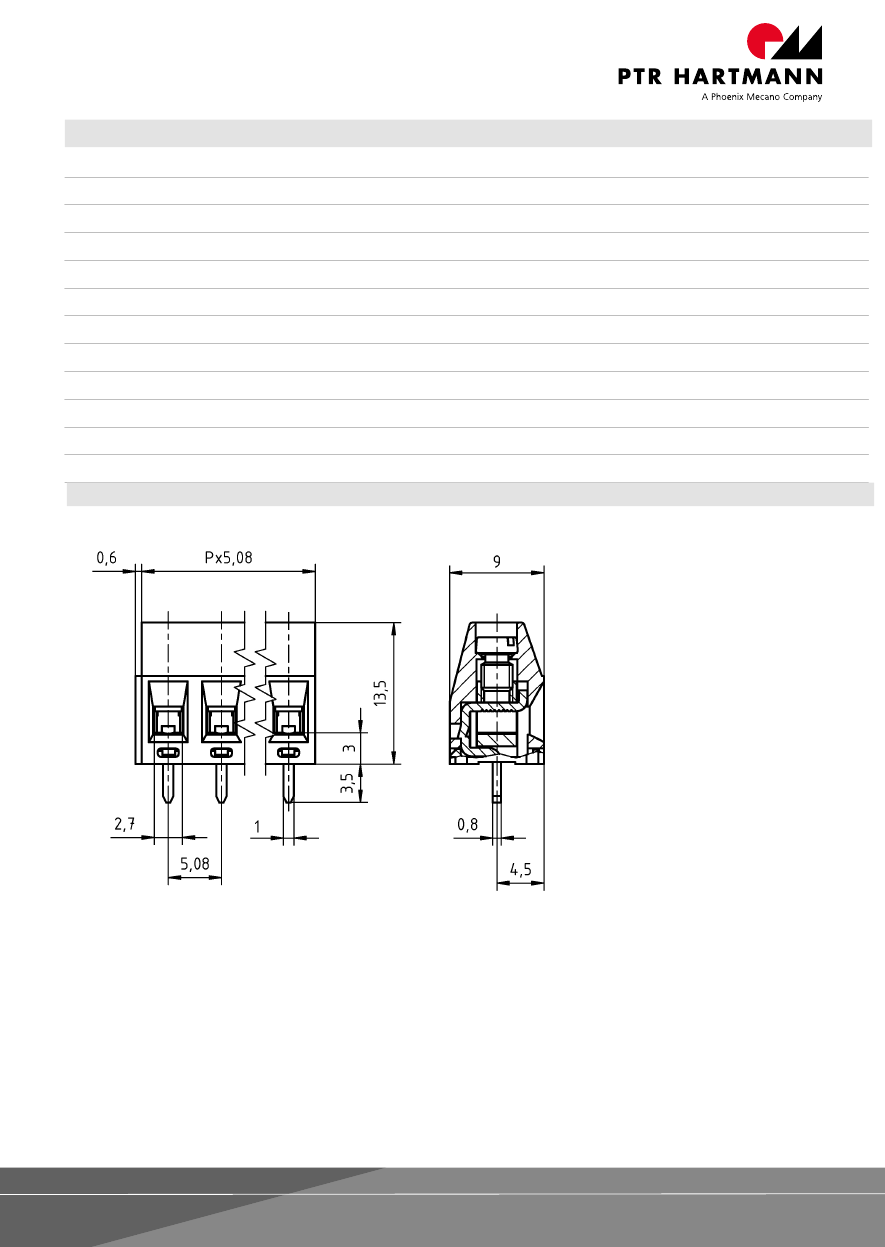

Technical drawing
Width (mm)
10.76
15.84
20.92
26.00
31.08
36.16
41.24
46.32
51.40
56.48
61.56
Article Designation
AKZ350/2-5.08-V-GREEN
AKZ350/3-5.08-V-GREEN
AKZ350/4-5.08-V-GREEN
AKZ350/5-5.08-V-GREEN
AKZ350/6-5.08-V-GREEN
AKZ350/7-5.08-V-GREEN
AKZ350/8-5.08-V-GREEN
AKZ350/9-5.08-V-GREEN
AKZ350/10-5.08-V-GREEN
AKZ350/11-5.08-V-GREEN
AKZ350/12-5.08-V-GREEN
Article Number
50350020001 F
50350030001 F
50350040001 F
50350050001 F
50350060001 E
50350070001 E
50350080001 E
50350090001 E
50350100001 D
50350110001 D
50350120001 D
PU
200
200
200
200
100
100
100
100
50
50
50
PTR HARTMANN GmbH
· Gewerbehof 38 · 59368 Werne, Germany · Tel. +49 2389 7988-0 · Fax +49 2389 7988-88 · info@ptr-hartmann.com
www.ptr-hartmann.com
