SF53 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SF53

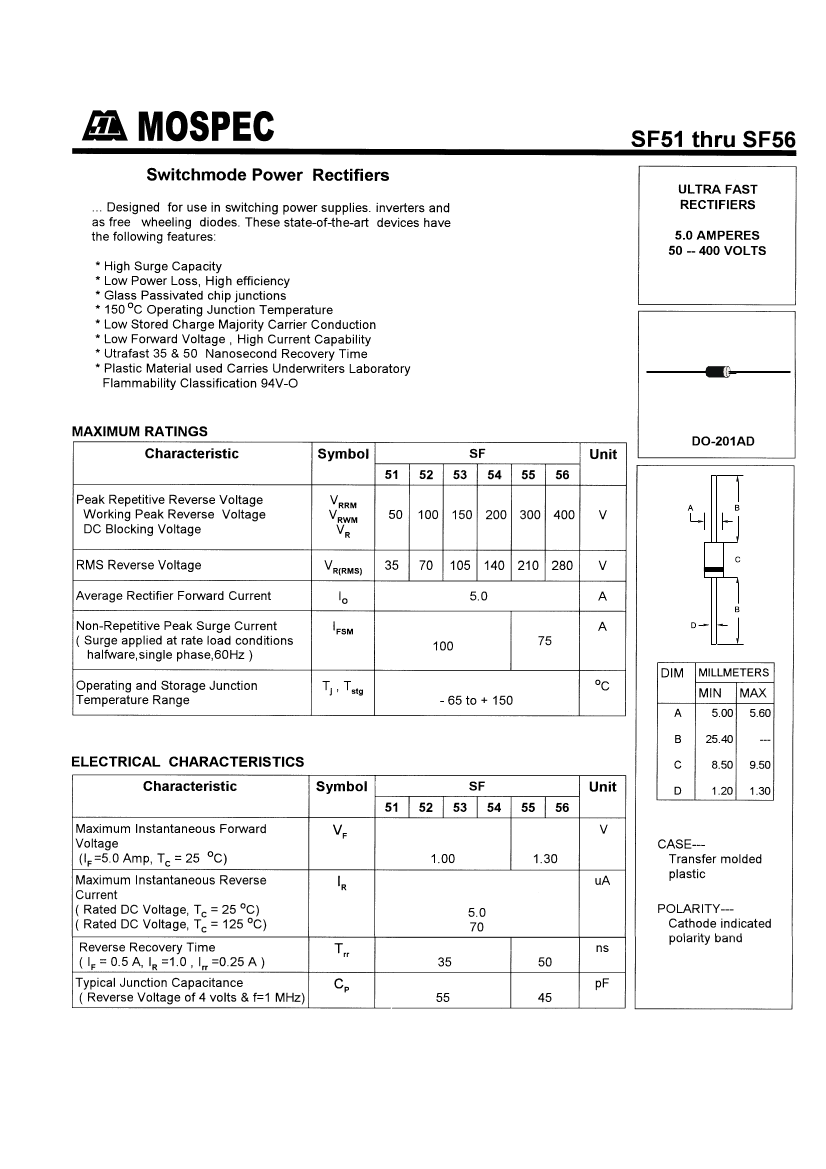

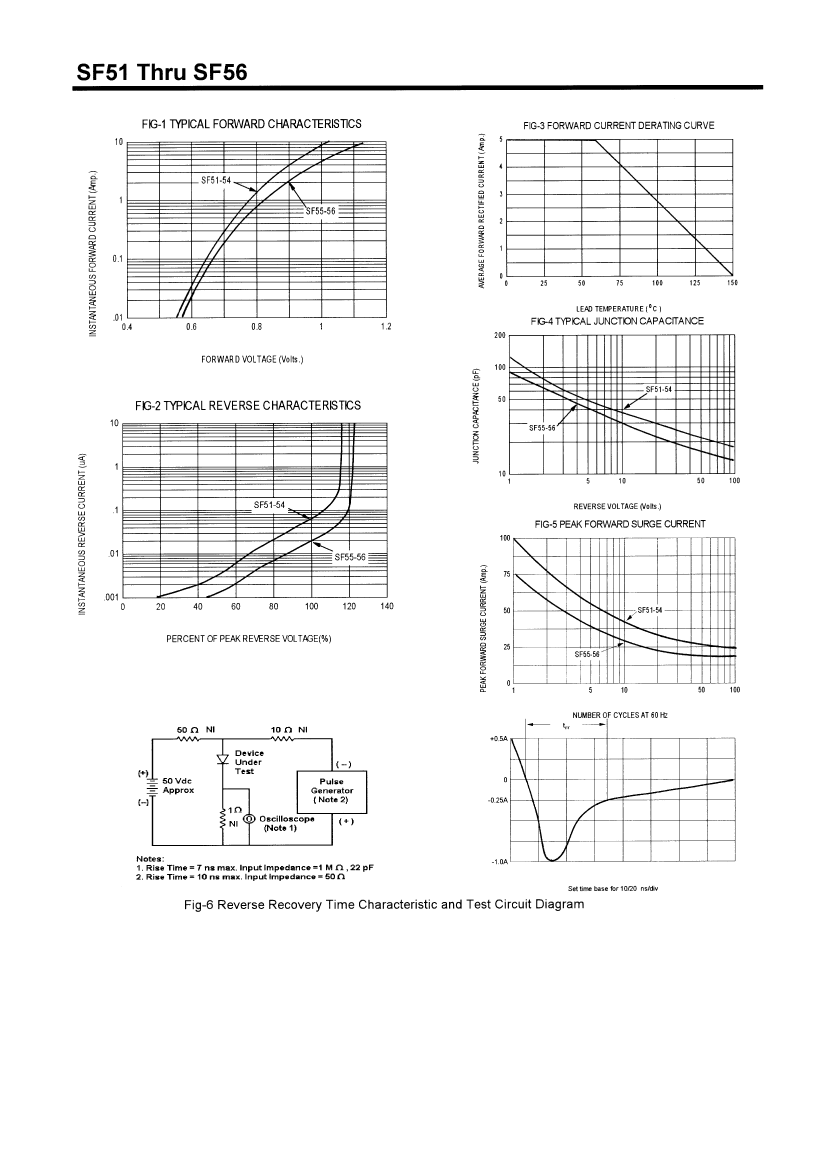

SF53: Description5 A, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size125KB，2 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

Download Datasheet Parametric Compare View All

SF53 Overview

5 A, SILICON, RECTIFIER DIODE, DO-201AD

SF53 Parametric

Parameter Name	Attribute value
Maker	MOSPEC
package instruction	O-PALF-W2
Reach Compliance Code	unknow
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

SF53 Related Products

	SF53	SF56	SF55	SF54	SF52	SF51
Description	5 A, SILICON, RECTIFIER DIODE, DO-201AD	RECTIFIER DIODE	5 A, SILICON, RECTIFIER DIODE, DO-201AD	5 A, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD
Maker	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknow	unknown	unknown	unknow	unknown	unknown
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1.3 V	1.3 V	1 V	1 V	1 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	100 A	75 A	75 A	100 A	100 A	100 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	5 A	5 A	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	150 V	400 V	300 V	200 V	100 V	50 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.035 µs	0.05 µs	0.05 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
