EC5725TTS-2.675M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EC5725TTS-2.675M

EC5725TTS-2.675M: DescriptionCMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.0mm x 2.5mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.0mm x 2.5mm Ceramic Surface Mount (SMD); CategoryPassive components oscillator; File Size779KB，10 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

EC5725TTS-2.675M Overview

CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.0mm x 2.5mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.0mm x 2.5mm Ceramic Surface Mount (SMD)

EC5725TTS-2.675M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7039716990
Parts packaging code	SMD 2.0mm x 2.5mm
Contacts	4
Manufacturer packaging code	SMD 2.0mm x 2.5mm
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK; TAPE
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	2.675 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF

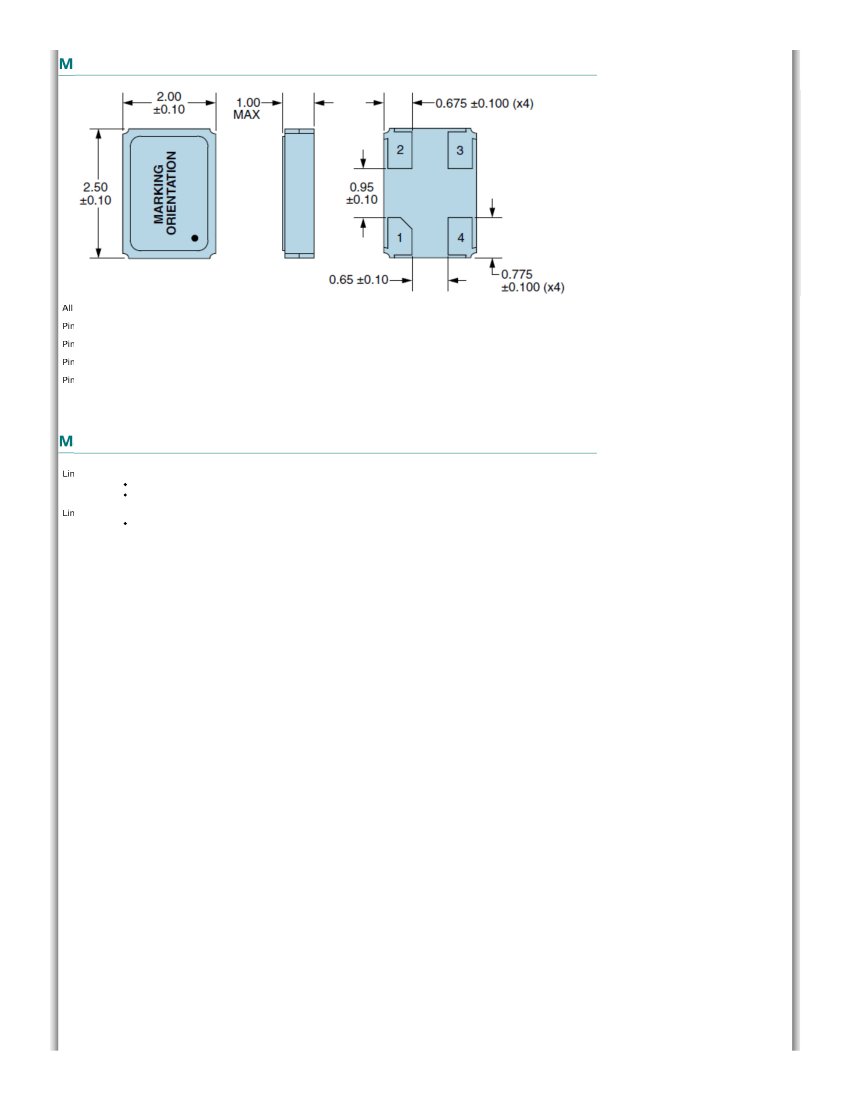

physical size	2.5mm x 2.0mm x 1.0mm
longest rise time	10 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

Ecliptek | EC57 Series Oscillator

http://www.ecliptek.com/oscillators/EC57/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EC57 Series Oscillator

Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.0mm x 2.5mm Ceramic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision G 04/02/2015

Electrical Specifications

Nominal Frequency

1.000MHz to 50.625MHz

Some frequencies within this range may not be available.

Frequency Tolerance/Stability

(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency

Stability over the Operating Temperature Range, Supply Voltage

Change, Output Load Change, First Year Aging at 25°C, Shock and

Vibration)

±100ppm Maximum

±50ppm Maximum

±25ppm Maximum

±20ppm Maximum

-10°C to +70°C

-40°C to +85°C

2.5V

±5%

Click to Open Input Current Table

= -4mA

90% of V

Minimum

= +4mA

10% of V

Maximum

Measured at 50% of waveform

50 ±10(%)

50 ±5(%)

Measured at 20% to 80% of Waveform

10nSec Maximum

15pF Maximum

CMOS

Tri-State (High Impedance)

90% of V

Minimum or No Connection to enable output

10% of V

Maximum to disable output(High Impedance)

Disabled Output: High Impedance

10 A Maximum

12kHz to 20MHz offset frequency

1pSec Maximum

10mSec Maximum

-55°C to +125°C

Operating Temperature Range

Supply Voltage

Input Current

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Duty Cycle

Rise Time/Fall Time

Load Drive Capability

Output Logic Type

Pin 1 Connection

Tri-State Input Voltage

Standby Current

RMS Phase Jitter

Start Up Time

Storage Temperature

1 of 10

28-Jan-2016 1:01 PM
