EQTB73E2F-40.000M-CC datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQTB73E2F-40.000M-CC

EQTB73E2F-40.000M-CC: DescriptionCMOS, Temperature Compensated Quartz Crystal Clock Oscillators TCXO LVCMOS (CMOS) 3.3Vdc 14-Pin DIP Metal Thru-Hole Temperature Compensated Quartz Crystal Clock Oscillators TCXO LVCMOS (CMOS) 3.3Vdc 14-Pin DIP Metal Thru-Hole; CategoryPassive components oscillator; File Size682KB，10 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

EQTB73E2F-40.000M-CC Overview

CMOS, Temperature Compensated Quartz Crystal Clock Oscillators TCXO LVCMOS (CMOS) 3.3Vdc 14-Pin DIP Metal Thru-Hole Temperature Compensated Quartz Crystal Clock Oscillators TCXO LVCMOS (CMOS) 3.3Vdc 14-Pin DIP Metal Thru-Hole

EQTB73E2F-40.000M-CC Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7042991331
Parts packaging code	14 Pin DIP
Contacts	4
Manufacturer packaging code	14 Pin DIP
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF

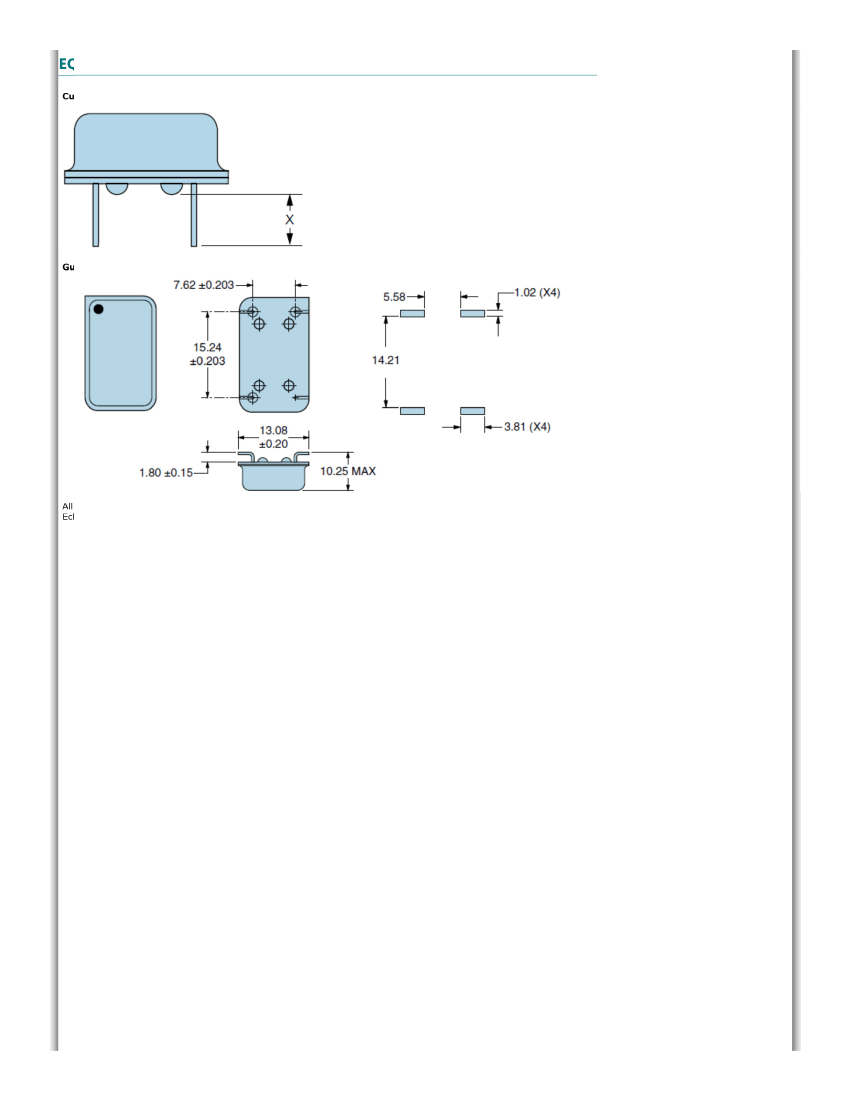

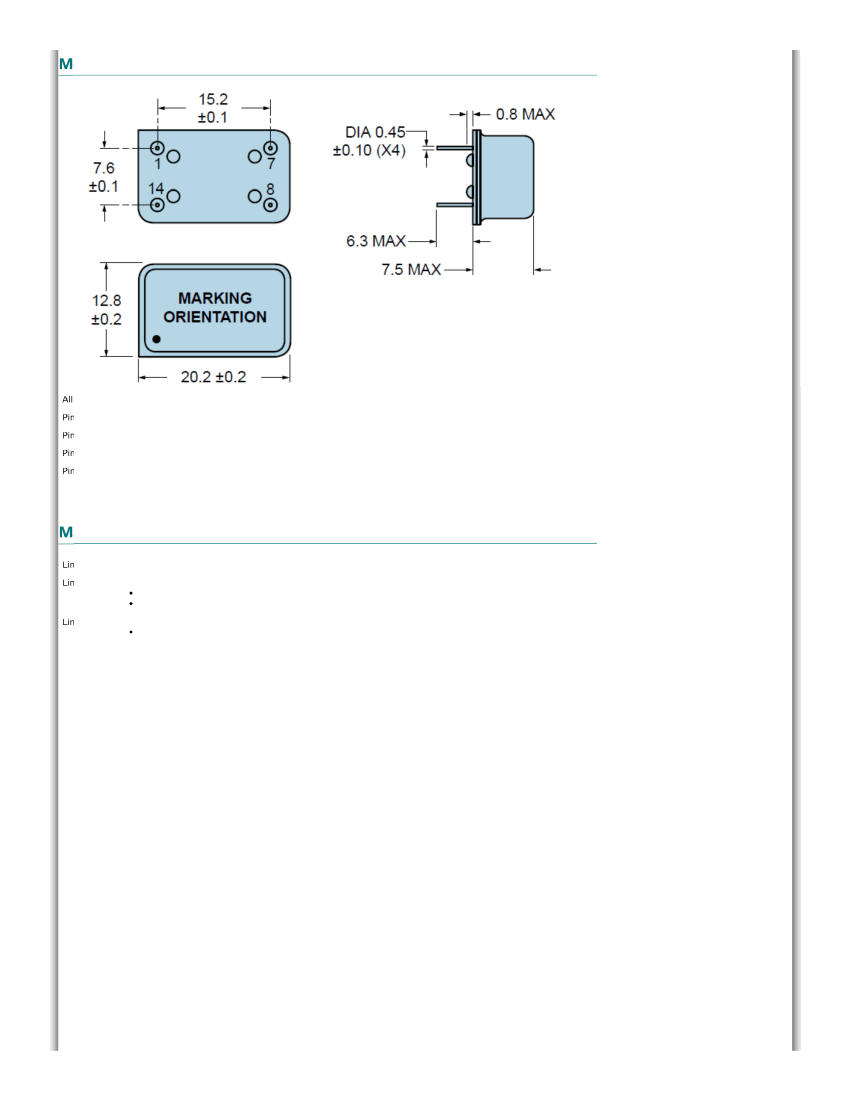

physical size	20.2mm x 12.8mm x 8.3mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Ecliptek | EQTB73 Series Oscillator

http://www.ecliptek.com/oscillators/EQTB73/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EQTB73 Series Oscillator

Temperature Compensated Quartz Crystal Clock Oscillators TCXO LVCMOS (CMOS) 3.3Vdc 14-Pin DIP Metal Thru-Hole

2011/65 +

2015/863

168 SVHC

Revision A 09/20/2013

Electrical Specifications

Nominal Frequency

1.544MHz to 155.520MHz

Some frequencies within this range may not be available.

Frequency Stability

Inclusive of Operating Temperature Range, at V

=3.3V

±3.0ppm Maximum

±2.5ppm Maximum

±2.0ppm Maximum

±1.5ppm Maximum

±1.0ppm Maximum

±0.5ppm Maximum

At 25°C ±2°C, at V

=3.3V

±2.0ppm Maximum

±0.3ppm Maximum (±5%)

±0.3ppm Maximum (±2pF)

±1.0ppm Maximum (at 25°C, 1 hour after reflow, 1 times)

±1ppm/Year Maximum

0°C to +50°C

-10°C to +60°C

-20°C to +70°C

-30°C to +75°C

-40°C to +85°C

3.3V

±5%

10mA Maximum

15mA Maximum

20mA Maximum

25mA Maximum

77.76MHz

35mA Maximum

155.52MHz

over

Nominal

Frequency

1.544MHz to 10MHz

10.000001MHz to 30MHz

30.000001MHz to 50MHz

50.000001MHz to

Frequency Stability vs. Frequency

Tolerance

Frequency Stability vs. Input Voltage

Frequency Stability vs. Load

Frequency Stability vs. Reflow

Aging at 25°C

Operating Temperature Range

Supply Voltage

Input Current

over Nominal Frequency of 77.760001MHz to

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Duty Cycle

90% of V

Minimum IOL=-4mA

10% of V

Maximum IOL=+4mA

Measured at 50% of waveform

50 ±10(%)

Measured at 20% to 80% of waveform

10nSec Maximum

15pF Maximum

CMOS

Rise Time/Fall Time

Load Drive Capability

Output Logic Type

1 of 10

28-Jan-2016 2:28 PM
