EQTD32E6E-12.800M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQTD32E6E-12.800M

EQTD32E6E-12.800M: DescriptionClipped, Temperature Compensated Quartz Crystal Clock Oscillators TCXO Clipped Sinewave 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) Temperature Compensated Quartz Crystal Clock Oscillators TCXO Clipped Sinewave 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD); CategoryPassive components oscillator; File Size850KB，10 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EQTD32E6E-12.800M Overview

Clipped, Temperature Compensated Quartz Crystal Clock Oscillators TCXO Clipped Sinewave 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) Temperature Compensated Quartz Crystal Clock Oscillators TCXO Clipped Sinewave 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD)

EQTD32E6E-12.800M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7043017513
Parts packaging code	SMD 2.5mm x 3.2mm
Contacts	4
Manufacturer packaging code	SMD 2.5mm x 3.2mm
Reach Compliance Code	compliant

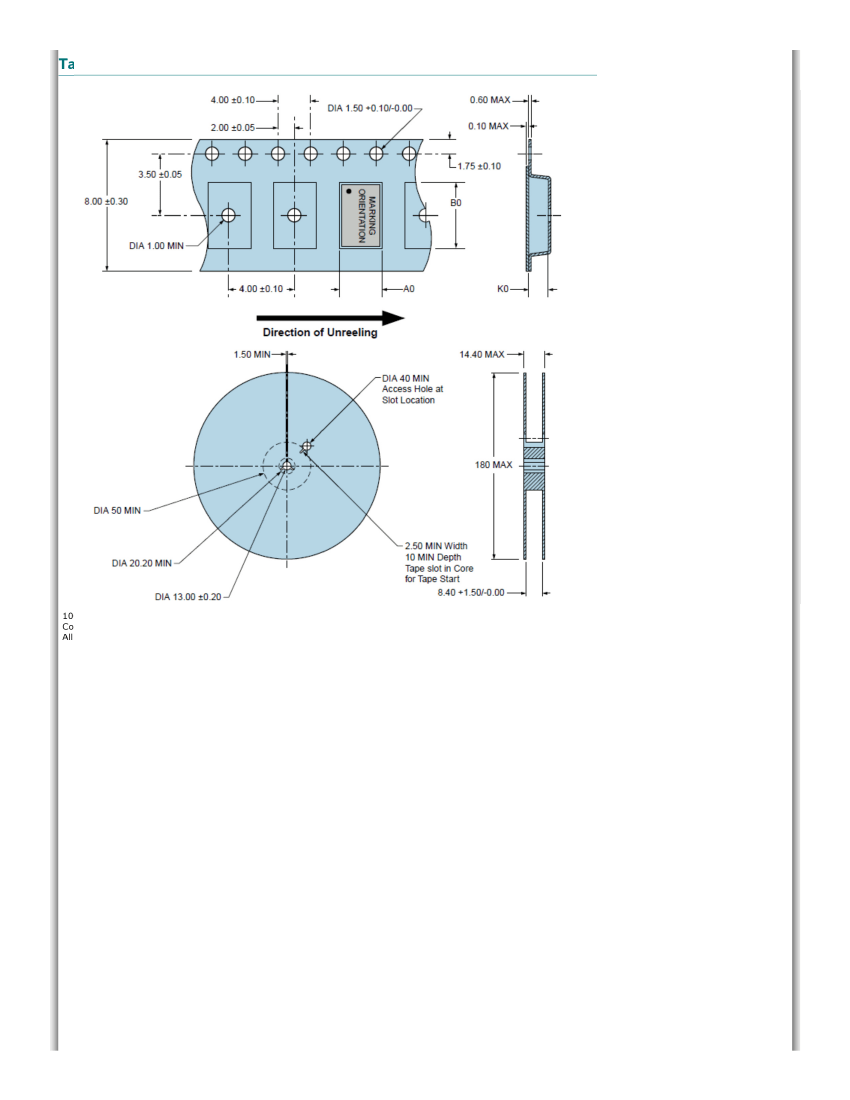

Other features	BULK; TAPE
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	3%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	12.8 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V

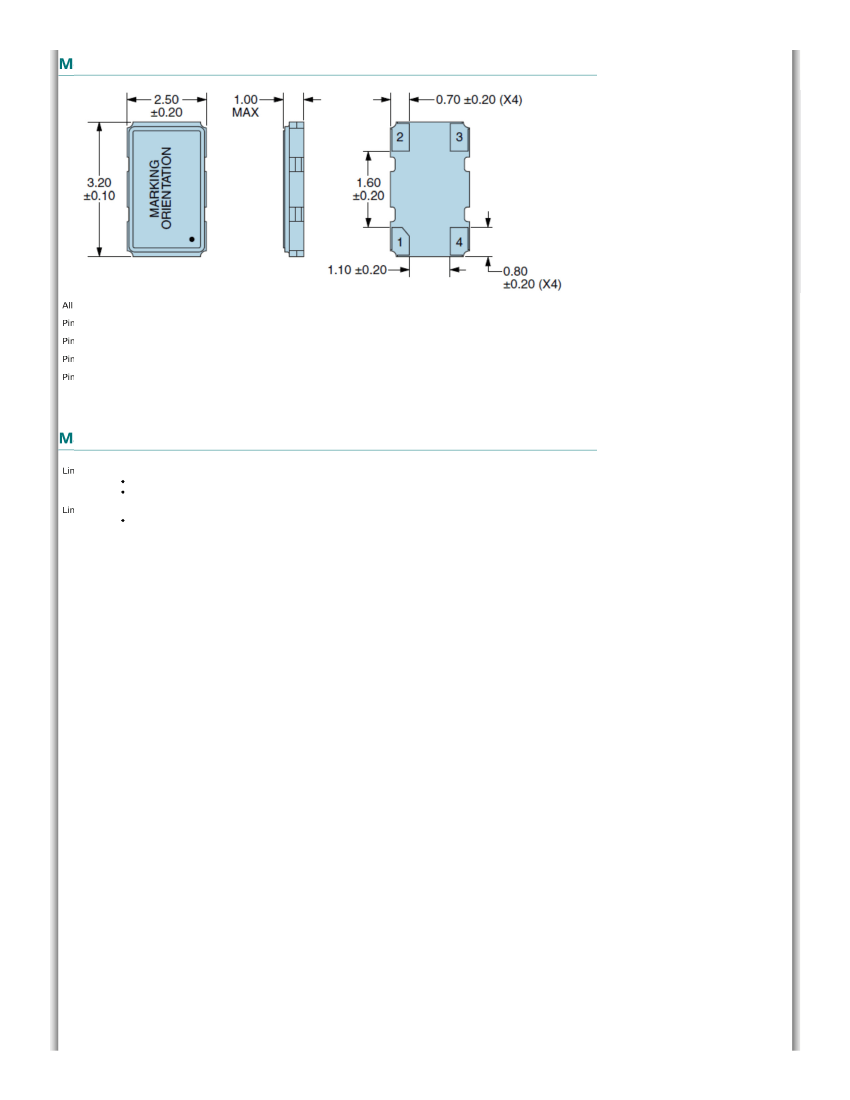

physical size	3.2mm x 2.5mm x 1.0mm
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

Ecliptek | EQTD32 Series Oscillator

http://www.ecliptek.com/oscillators/EQTD32/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EQTD32 Series Oscillator

Temperature Compensated Quartz Crystal Clock Oscillators TCXO Clipped Sinewave 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic

Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision B 06/12/2015

Electrical Specifications

Nominal Frequency

10.000MHz to 32.000MHz

Some frequencies within this range may not be available.

Frequency Stability

Inclusive of Operating Temperature Range, at Vdd=2.5Vdc

±3.0ppm Maximum

±2.5ppm Maximum

±2.0ppm Maximum

±1.5ppm Maximum

±1.0ppm Maximum

±0.5ppm Maximum

±1.0ppm Maximum (at 25°C ±2°C, at Vdd=2.5Vdc, Pre-Reflow)

Frequency Stability vs. Frequency

Tolerance

Frequency Stability vs. Input Voltage

Frequency Stability vs. Load

Frequency Stability vs. Reflow

Frequency Stability vs. Aging

Operating Temperature Range

±0.2ppm Maximum (±5%)

±0.2ppm Maximum (±1kOhm//±1pF)

±1ppm Maximum (at 25°C, 24 hours after reflow, 1 time)

±1ppm/Year Maximum (at 25°C)

0°C to +50°C

-10°C to +60°C

0°C to +70°C

-20°C to +70°C

-30°C to +60°C

-30°C to +75°C

-30°C to +85°C

-40°C to +85°C

2.5Vdc ±5%

2.0mA Maximum over Nominal Frequency of 10MHz to 26MHz

2.5mA Maximum over Nominal Frequency of 26.000001MHz to 32MHz

External DC-Cut capacitor required, 1000pF recommended

0.8Vp-p Clipped Sinewave Minimum

10kOhms//10pF

Clipped Sinewave

Click to Open Phase Noise Table

Fj=12kHz to 20MHz (Random)

0.7pSec Typical, 1pSec Maximum

2mSec Maximum

-40°C to +85°C

Supply Voltage

Input Current

Output Voltage

Load Drive Capability

Output Logic Type

Phase Noise

RMS Phase Jitter

Start Up Time

Storage Temperature Range

1 of 10

28-Jan-2016 2:32 PM
