ECS-.327-6-13FLX-C-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-.327-6-13FLX-C-TR

Preview

ECS-.327-6-13FLX-C-TR: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size583KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-.327-6-13FLX-C-TR Overview

Parallel - Fundamental Quartz Crystal,

ECS-.327-6-13FLX-C-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7191299923
Reach Compliance Code	compliant
Factory Lead Time	36 weeks
Samacsys Description	Crystals CRYSTAL 32.768KHZ 6PF SMD,ECS-2x6-FLX,-,+/-10ppm,50 kOhm,Fundamental,-40 C 85 C,Cylindrical Can, Radial,0.079\" Dia x 0.240\" L (2.00mm x 6.10mm)
Samacsys Manufacturer	ECS
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0144%
frequency tolerance	10 ppm
JESD-609 code	e2
load capacitance	6 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	2mm x 6.1mm
Series resistance	50000 Ω
surface mount	NO
Terminal surface	Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

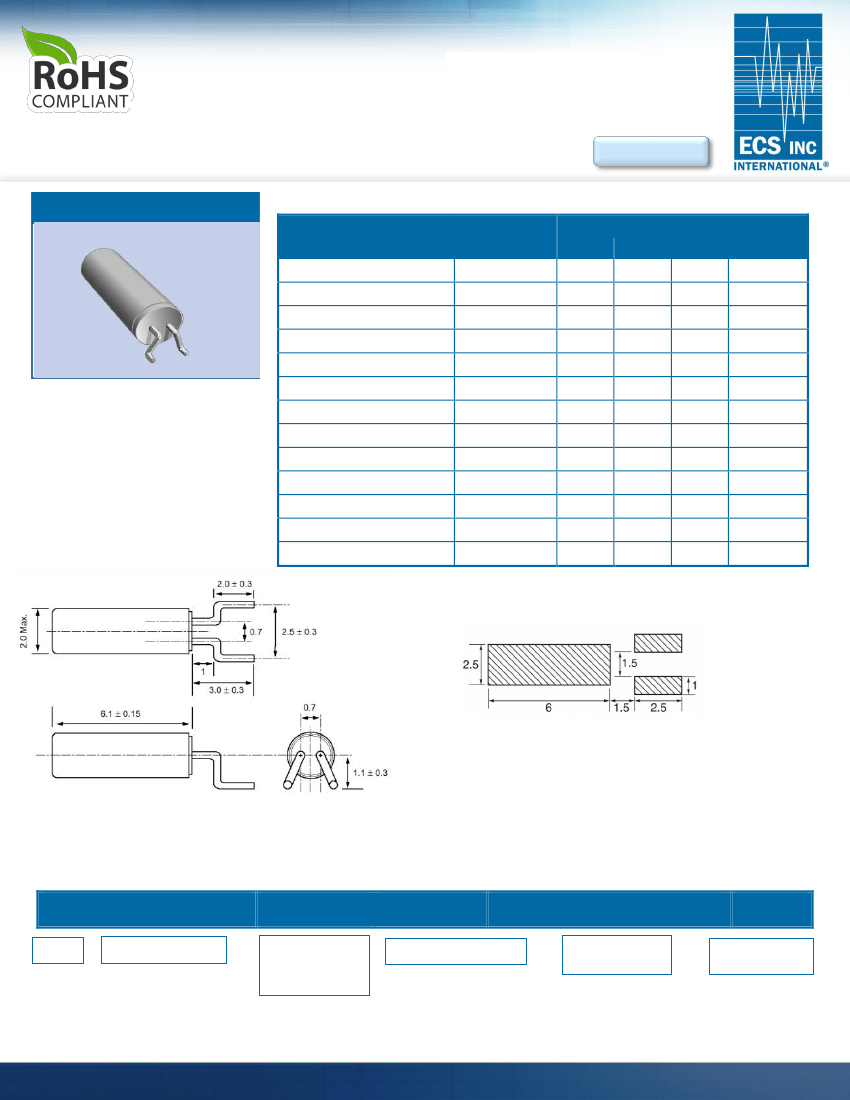

The ECS-2X6-FLX is a pre-formed lead configured SMD Tuning

Fork Crystal.

ECS-2X6-FLX

SMD TUNING FORK

CRYSTAL

Request a Sample

ECS-2X6-FLX SMD CRYSTAL

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Load Capacitance

Drive Level

Equivalent Series Resistance

Turnover Temperature

@ +25°C

CONDITIONS

MIN

ECS-2X6-FLX

TYP

MAX

UNITS

KHz

32.768

± 20 *

12.5

1.0

50K

+20

Co

@ +25°C ±3°C

70K

T

opr

T

stg

@ 100V DC

-40

-55

500M

+85

+125

+25

1.35

±5

+30

-0.040

Specify in P/N

D

L

R

1

ppm

pF

μW

Ω

°C

ppm/°C²

pF

ppm

°C

Ω

•

RoHS Compliant

•

MSL 1

•

Lead Finish Sn/Cu

Temperature Coefficient

Shunt Capacitance

Aging (First Year)

Q Factor

Operating Temperature

Storage Temperature

Insulation Resistance

DIMENSIONS (mm)

Figure 2)

Suggested Land Pattern

Figure 1)

Top, Side, and End views

PART NUMBERING GUIDE: Example ECS-.327-12.5-13FLX-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

12.5 = 12.5 pF

7 = 7 pF

6 = 6 pF

PACKAGE

CUSTOM OPTIONS

Tolerance

Blank = ±20 ppm

* C = ± 10 ppm

PACKAGING

ECS

.327 = 32.768 KHz

13FLX = ECS-2x6-FLX

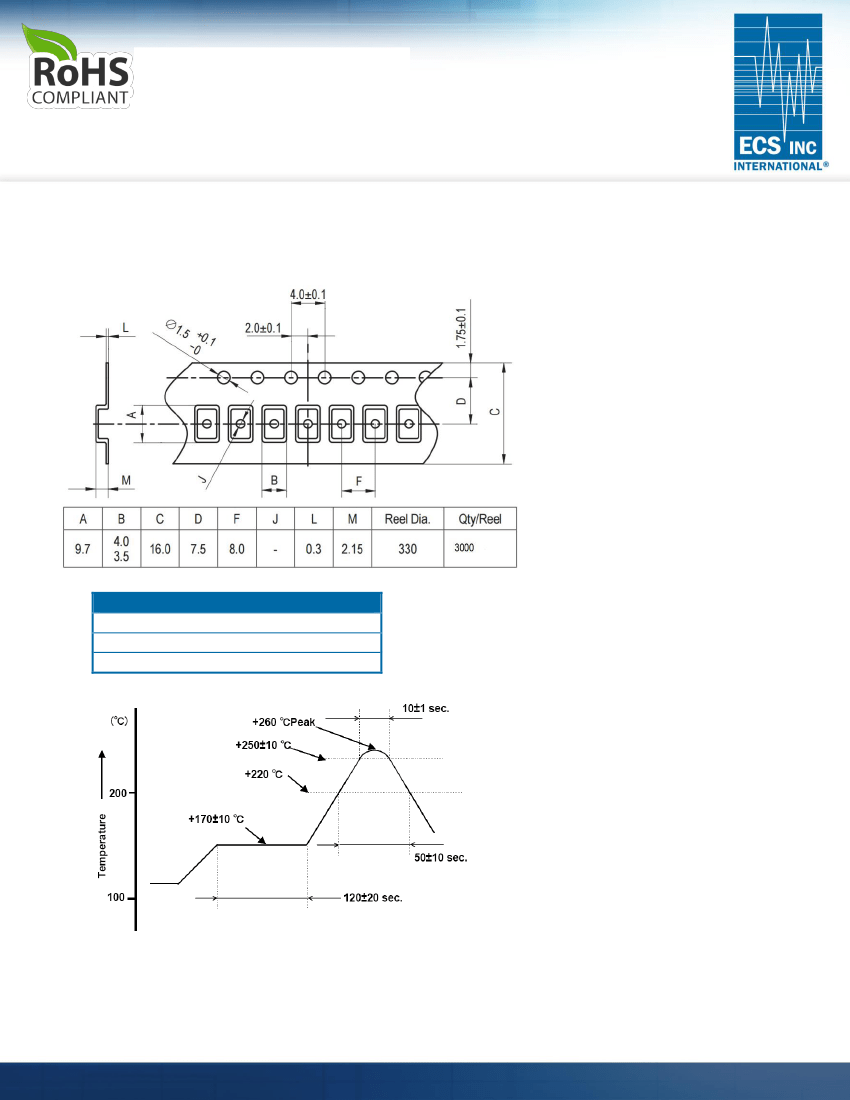

TR = Tape & Reel

*Contact ECS for availability

Rev.2016

15351 West 109

th

Street

|

Lenexa, KS 66219

|

Phone: 913.782.7787

|

Fax: 913.782.6991

|

www.ecsxtal.com
