ECS-0.327-6-17X-C-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-0.327-6-17X-C-TR

ECS-0.327-6-17X-C-TR: DescriptionParallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size549KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

ECS-0.327-6-17X-C-TR Overview

Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ECS-0.327-6-17X-C-TR Parametric

Parameter Name	Attribute value
Objectid	1040978579
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0144%
frequency tolerance	10 ppm
load capacitance	6 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L8.0XB3.8XH2.5 (mm)/L0.315XB0.15XH0.098 (inch)
Series resistance	50000 Ω
surface mount	YES

Preview

Download Datasheet

View All

Low Profile

Long term stability

Industry standard footprint

Extended Temp. Range

RoHS Compliant

ECX-306X

SMD TUNING FORK CRYSTAL

The ECX-306X is a compact SMD Tuning Fork Crystal. The

3.8 x 8.0 x 2.5 mm package is ideal for today's SMD

manufacturing environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Load Capacitance

Drive Level

Equivalent Series Resistance

Turnover Temperature

Temperature Coefficient

Shunt Capacitance

First Year Aging

Operating Temperature

Storage Temperature

Insulation Resistance

+25°C ±3°C

opr

Tstg

@ 100V DC

-40

-55

500M

CONDITIONS

@ +25°C

Specify in P/N

+20

-0.028

+25

-0.034

1.35

±3

+85

+125

12.5

1.0

50K

+30

-0.040

ECX-306X

MIN

TYP

32.768

± 20

MAX

UNITS

KHz

ppm

µW

Ω

°C

ppm/°C²

ppm

°C

Ω

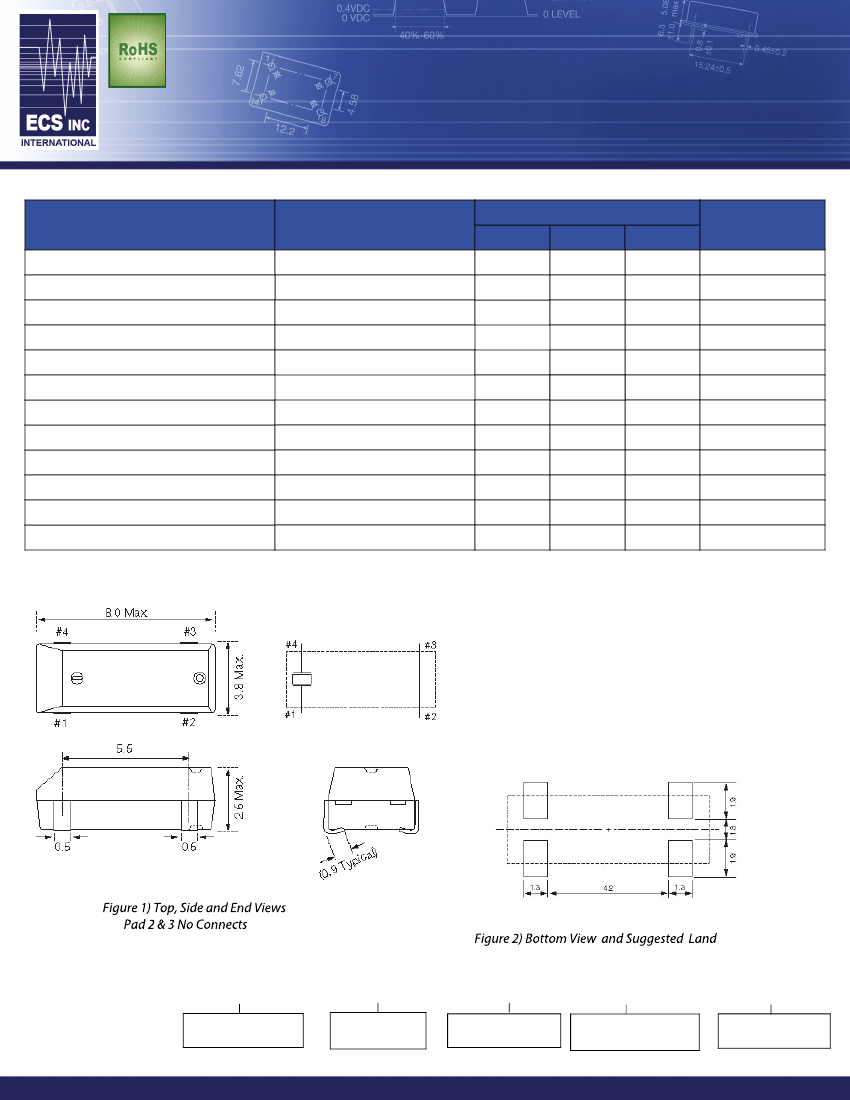

TOP, BOTTOM, SIDE VIEWS & LAND PATTERN

PART NUMBERING GUIDE: Example ECS-.327-12.5-17X-TR

ECS

Frequency Abbreviation - Load Capacitance -

.327 = 32.768 KHz

12.5 = 12.5 pF

6 = 6 pF

Package Type

-17X = ECX-306X

Tolerance

Packaging

-TR = Tape & Reel

3K/Reel

Blank (Std) = ±20 ppm

C= ±10 ppm

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com

ECS-0.327-6-17X-C-TR Related Products

	ECS-0.327-6-17X-C-TR	ECS-0.327-6-17X-TR
Description	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, SMD, 4 PIN
Objectid	1040978579	1040978580
package instruction	ROHS COMPLIANT, SMD, 4 PIN	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL
Ageing	3 PPM/FIRST YEAR	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	1 µW	1 µW
frequency stability	0.0144%	0.0144%
frequency tolerance	10 ppm	20 ppm
load capacitance	6 pF	6 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz	0.032768 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
physical size	L8.0XB3.8XH2.5 (mm)/L0.315XB0.15XH0.098 (inch)	L8.0XB3.8XH2.5 (mm)/L0.315XB0.15XH0.098 (inch)
Series resistance	50000 Ω	50000 Ω
surface mount	YES	YES
