SAW Components
SAW GPS + COMPASS + GLONASS
Filter
Series/type:
Ordering code:
Date:
Version:
B8313
B39162B8313P810
February 12, 2013
2.0
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW GPS + COMPASS + GLONASS Filter
Data Sheet
Application
s
Low-loss RF GPS + COMPASS + Galileo +
s
s
B8313
1582.4 MHz
s
s
s
s
s
s
GLONASS filter
Simultaneous usage of GPS, COMPASS, Galileo
and GLONASS
Usable passbands: 2.0 MHz for GPS, 4.092 MHz for
COMPASS, 4.092 MHz for Galileo and 7.88 MHz for
GLONASS
Unbalanced to unbalanced operation
Very low insertion attenuation
High out of band selectivity
Low amplitude ripple
Filter impedance 50
Ω
No matching network required for operation at 50
Ω
Features
s
s
s
s
s
s
s
s
Package size 1.4 x 1.1 x 0.4 mm
3
Package height 0.45 mm max.
RoHS compatible
Approximate weight 0.003 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
Moisture Sensitivity Level
3 (MSL3)
0,325
2
1
3
0,575
0,25
bottom view
5
0,5 0,5
4
0,4
side view
1,4
1,1
top view
Pin configuration
s
1
s
4
s
2,3,5
Input / Output unbalanced
Output / Input unbalanced
To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
February 12, 2013
SAW Components
SAW GPS + COMPASS + GLONASS Filter
Data Sheet
Characteristics of Filter
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –30 ˚C to +85˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
B8313
typ.
@ 25 ˚C
1582.4
B8313
1582.4 MHz
min.
Center frequency
Maximum insertion attenuation
1574.42 ... 1576.42
1559.05 ... 1563.15
1573.37 ... 1577.47
1597.78 ... 1605.66
VSWR (Input)
1574.42
1559.05
1573.37
1597.78
VSWR ( Output)
1574.42
1559.05
1573.37
1597.78
...
...
...
...
1576.42
1563.15
1577.47
1605.66
MHz
MHz
MHz
MHz
—
—
—
—
f
C
α
max
MHz
MHz
MHz
MHz
—
—
—
—
—
max.
—
MHz
0.8
1.1
0.85
1.3
1.3
2.0
2.0
2.0
dB
dB
dB
dB
1.1
1.5
1.2
1.5
2.0
2.0
2.0
2.0
...
...
...
...
1576.42
1563.15
1577.47
1605.66
MHz
MHz
MHz
MHz
—
—
—
—
1.1
1.5
1.2
1.5
2.0
2.0
2.0
2.0
Group delay ripple
1)
1597.78 ... 1605.66 MHz
Attenuation
10.0
824.0
1427.0
1710.0
1850.0
1920.0
2400.0
2500.0
2600.0
4900.0
1)
—
α
4
12
ns
...
...
...
...
...
...
...
...
...
...
824.0
925.0
1453.0
1785.0
1910.0
1980.0
2500.0
2570.0
3000.0
5850.0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
47
47
40
37
38
39
38
37
30
15
51
51
43
41
43
44
43
42
38
24
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Averaged over 2 MHz.
Please read
cautions and warnings and
important notes
at the end of this document.
3
February 12, 2013
SAW Components
SAW GPS + COMPASS + GLONASS Filter
Data Sheet
Maximum ratings of Filter
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power at
915 MHz
1453 MHz
1710 MHz
1)
2)
B8313
1582.4 MHz
T
T
stg
V
DC
V
ESD
P
IN
P
IN
P
IN
–30/+85
–40/+85
0
50
1)
23
2)
15
15
˚C
˚C
V
V
dBm
dBm
dBm
machine model
source/load impedance 50Ω/50Ω
1/8 duty cycle
cw
cw
acc. to JESD22-A115A (machine model).
>5000 h at Ta = 50
˚C
.
Please read
cautions and warnings and
important notes
at the end of this document.
4
February 12, 2013
SAW Components
SAW GPS + COMPASS + GLONASS Filter
Data Sheet

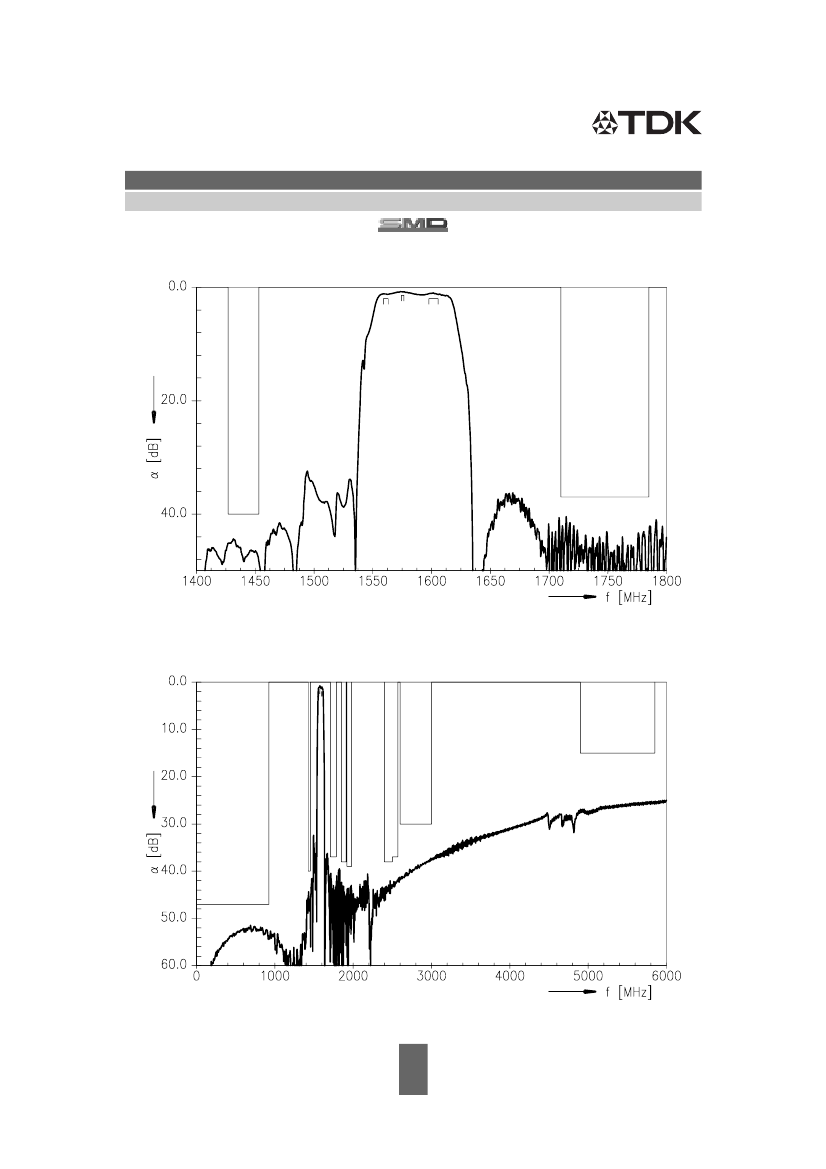

Transfer function (passband)
B8313
1582.4 MHz
Transfer function
Please read
cautions and warnings and
important notes
at the end of this document.
5
February 12, 2013
