LQW15AN9N5H00: Description1 ELEMENT, 0.0095 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size69KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LQW15AN9N5H00 Overview

1 ELEMENT, 0.0095 uH, GENERAL PURPOSE INDUCTOR, SMD

LQW15AN9N5H00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.14 Ω
Nominal inductance(L)	0.0095 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	25
Maximum rated current	0.54 A
self resonant frequency	5500 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250 MHZ
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	3%

Preview

Download Datasheet

View All

LQW15AN9N5H00#

# indicates a package specification code.

< List of part numbers with package codes >

LQW15AN9N5H00D , LQW15AN9N5H00B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

Packing in bulk

Minimum quantity

10000

500

Mass (Typ.)

1 piece

L size

W size

T size

Size code in inch (mm)

1.0 ±0.1mm

0.6 ±0.1mm

0.5 ±0.1mm

0402 (1005)

0.0008g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

9.5nH ±3%

100MHz

540mA

0.14Ω

25

250MHz

5.5GHz

-55∼125℃

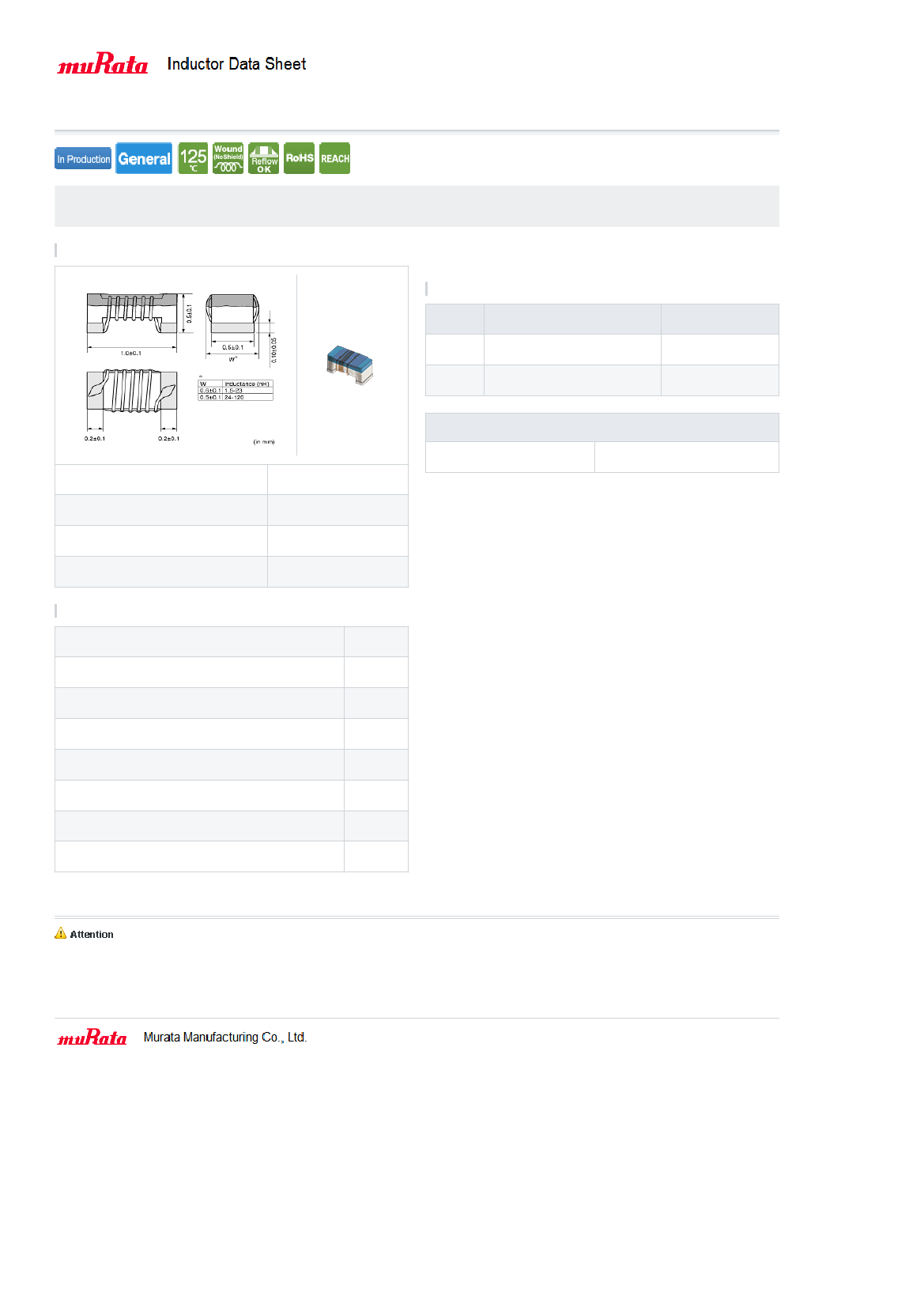

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/01/11
