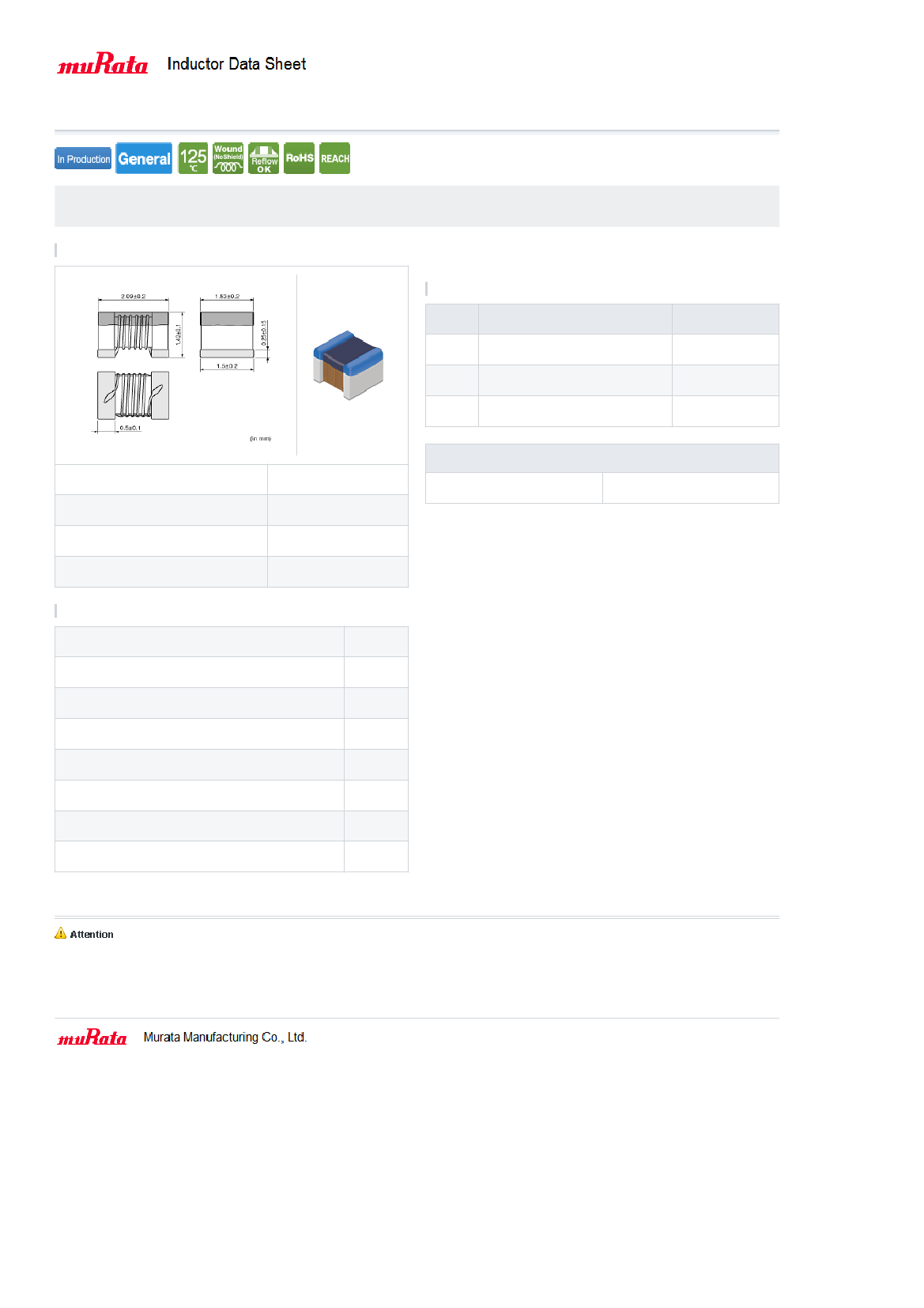

Preview

LQW2BAS12NJ00B: Description1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size71KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

LQW2BAS12NJ00B Overview

1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD

LQW2BAS12NJ00B Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Rated inductance	0.0120 uH
self resonant frequency	4000 MHz
Processing package description	CHIP, 0806
state	ACTIVE
DC Resistance	0.1500 ohm
surface mount	Yes
Terminal shape	ONE SURFACE
special function	Q MEASURED AT 500MHZ
terminal coating	TIN
Terminal layout	DUAL ENDED
Manufacturer Series	LQW2BA
Inductor applications	RF INDUCTOR
Shape and size description	RECTANGULAR PACKAGE
deviation	5 %
Inductor type	GENERAL PURPOSE INDUCTOR
Quality factor	50
1Rated value test frequency	250 MHz
Maximum rated current	0.6000 A

Preview

Download Datasheet

View All

LQW2BAS12NJ00#

# indicates a package specification code.

< List of part numbers with package codes >

LQW2BAS12NJ00L , LQW2BAS12NJ00K , LQW2BAS12NJ00B

Shape

References

Packaging

code

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Packing in bulk

Minimum quantity

2000

8000

500

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

2.09 ±0.2mm

1.53 ±0.2mm

1.42 ±0.1mm

0805 (2015)

1 piece

0.014g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

12nH ±5%

250MHz

600mA

0.15Ω

50

500MHz

4000MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/01/11

LQW2BAS12NJ00B Related Products

	LQW2BAS12NJ00B	LQW2BAS12NJ00	LQW2BAS12NJ00K
Description	1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 Cel	125 Cel	125 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel
Rated inductance	0.0120 uH	0.0120 uH	0.0120 uH
self resonant frequency	4000 MHz	4000 MHz	4000 MHz
Processing package description	CHIP, 0806	CHIP, 0806	CHIP, 0806
state	ACTIVE	ACTIVE	ACTIVE
DC Resistance	0.1500 ohm	0.1500 ohm	0.1500 ohm
surface mount	Yes	Yes	Yes
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE
special function	Q MEASURED AT 500MHZ	Q MEASURED AT 500MHZ	Q MEASURED AT 500MHZ
terminal coating	TIN	TIN	TIN
Terminal layout	DUAL ENDED	DUAL ENDED	DUAL ENDED
Manufacturer Series	LQW2BA	LQW2BA	LQW2BA
Inductor applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Shape and size description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
deviation	5 %	5 %	5 %
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Quality factor	50	50	50
1Rated value test frequency	250 MHz	250 MHz	250 MHz
Maximum rated current	0.6000 A	0.6000 A	0.6000 A
