GXO-7506G/B27.5760MHZ Overview

CMOS Output Clock Oscillator

GXO-7506G/B27.5760MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7087435357
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	27.576 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	CERAMIC
physical size	7.5mmx5mmx1.4mm
longest rise time	5 ns
Maximum slew rate	7 mA
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

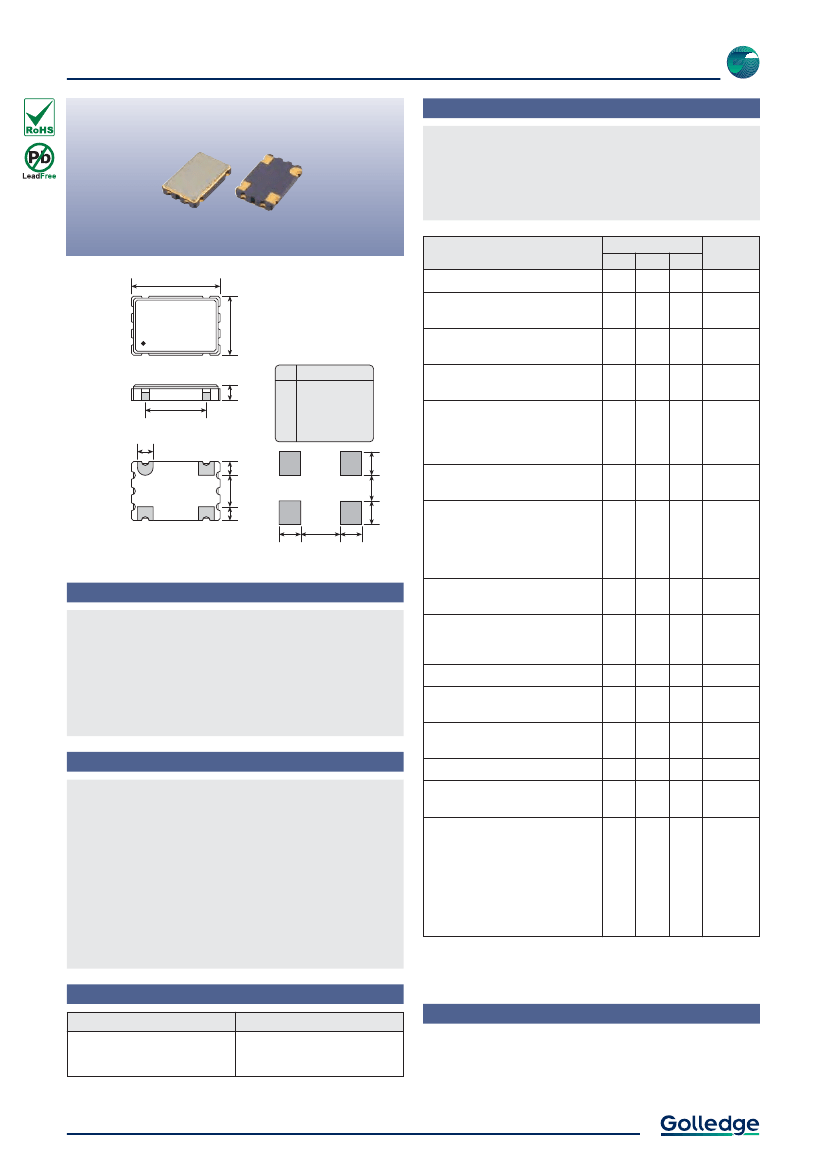

7050 Ultra-Low Jitter Oscillator for Audio

Specifications

GXO-7506G: 1.8V supply

GXO-7506J: 2.5V supply

GXO-7506L: 3.3V supply

GXO-7506

Parameters

7.50

(max)

Variant

G

20.0 ~ 50.0MHz

±25ppm

±50ppm









7















12

20

J







L







Option

Codes

Frequency range:

Frequency stability*:

5.00

(max)

A

B

Operating temperature range:

-40 to +85°C

PAD

1.40

(max)

5.08

1.40

1.20

2.60

4

3

1.20

1.80

1

2

1

2

3

4

CONNECTION

Enable/Disable

Ground

Output

Supply

Storage temperature range:

-55 to +125°C

Supply voltage (V

DD

):

+1.8V (±5%)

+2.5V (±5%)

+3.3V (±10%)

1

2

4

3

2.00

2.20

2.00

Supply current (mA max):

20.0 ~ 50.0MHz

Logic levels:

‘0’ level = 20%V

DD

max

‘1’ level = 80%V

DD

min

‘0’ level = 10%V

DD

max

‘1’ level = 90%V

DD

min

Start up time:

10ms max

5ms max

3.28

TOP VIEW

1.80

Features



Excellent phase noise & jitter characteristics

Custom frequencies and specifications available

Enable / disable tristate function

Small and medium quantities also available

Waveform symmetry:

40:60 max @ 50%V

DD

45:55 max @ 50%V

DD

Driving ability:

15pF CMOS









Rise / fall time:

5ns max (20.0 ~ 50.0MHz)

Enable / disable function:

Tristate (control via pad 1)

Example Applications

Stand-by current:

10μA max



High definition audio data converters

Radar

High performance networking & comms

Wireless infrastructure

Medical imaging

Optical transceivers

Phase jitter RMS:

0.04ps typ (12kHz ~ 5.0MHz)

Phase noise (typ @ 24.576MHz, 3.3V):

-101dBc/Hz @ 10Hz

-132dBc/Hz @ 100Hz

-155dBc/Hz @ 1kHz

-166dBc/Hz @ 10kHz

-174dBc/Hz @ 100kHz

-175dBc/Hz @ 1MHz

-175dBc/Hz @ 5MHz



Standard.



Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change, shock and vibration.

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Ordering Information

Product name + variant + option codes (if any) + frequency

eg:

GXO-7506L/A 40.0MHz

3.3V, ±25ppm

GXO-7506G/B 24.5760MHz

1.8V, ±50ppm

Option code X (eg GXO-7506L/X) denotes a custom spec.

Web:

www.golledge.com

Tel:

+44 1460 256 100

04 Oct 2016

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

GXO-7506G/B27.5760MHZ Related Products

	GXO-7506G/B27.5760MHZ	GXO-7506G/A27.5760MHZ	GXO-7506J/A27.5760MHZ	GXO-7506J/B27.5760MHZ	GXO-7506L/A27.5760MHZ	GXO-7506L/B27.5760MHZ
Description	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	7087435357	7087435354	7087435361	7087435365	7087435369	7087435373
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	50%	25%	25%	50%	25%	50%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4	4	4	4	4
Nominal operating frequency	27.576 MHz	27.576 MHz	27.576 MHz	27.576 MHz	27.576 MHz	27.576 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
physical size	7.5mmx5mmx1.4mm	7.5mmx5mmx1.4mm	7.5mmx5mmx1.4mm	7.5mmx5mmx1.4mm	7.5mmx5mmx1.4mm	7.5mmx5mmx1.4mm
longest rise time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Maximum slew rate	7 mA	7 mA	12 mA	12 mA	20 mA	20 mA
Maximum supply voltage	1.89 V	1.89 V	2.625 V	2.625 V	3.63 V	3.63 V
Minimum supply voltage	1.71 V	1.71 V	2.375 V	2.375 V	2.97 V	2.97 V
Nominal supply voltage	1.8 V	1.8 V	2.5 V	2.5 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
maximum symmetry	60/40 %	60/40 %	55/45 %	55/45 %	55/45 %	55/45 %
