Series AME15-JZ
15 Watt | AC-DC / DC-DC Converter
FEATURES:
I/O Isolation 3000VAC
Operating Temp: -40°C to +70°C
Over current Protection
Input: 85-305VAC, 47-63Hz, or 100-430VDC
Low Ripple and Noise
Over Voltage Protection
Up to 85% efficiency
Short Circuit Protection
Models
Single output
Model
AME15-3.3SJZ
AME15-5SJZ
AME15-9SJZ
AME15-12SJZ
AME15-15SJZ
AME15-24SJZ
AME15-48SJZ
Input
Voltage
(VAC/Hz)
85-305/47-63
85-305/47-63
85-305/47-63
85-305/47-63
85-305/47-63
85-305/47-63
85-305/47-63
Input
Voltage
(VDC)
100-430
100-430
100-430
100-430
100-430
100-430
100-430
Max
Output
wattage
(W)
9.9
14
15
15
15
15
15
Output
Voltage
(V)
3.3
5
9
12
15
24
48
Output
Current max
(A)
3
2.8
1.6
1.25
1
0.625
0.32
Maximum
capacitive load
(µF)
36000
20000
6000
3000
3000
900
370
Efficiency
(%)
230
VAC
74
78
79
82
82
84
85
Input Specifications
Parameters
Current (full load)
Inrush current <2ms (cold start)
Leakage current
External fuse
Conditions
115 VAC
230 VAC
115 VAC
230 VAC
Recommended slow blow type
Typical
10
20
2
Maximum
370
220
Units
mA
mA
A
A
mA
A
0.25
Output Specifications
Parameters
Voltage accuracy
Line regulation
Load regulation
Ripple & Noise
Hold-up time
Conditions
(LL-HL)
10-100% load
115 VAC
230 VAC
Typical
±2
±0.5
±1
Maximum
Units
%
%
%
mV p-p
ms
ms
100
15
80
Isolation Specifications
Parameters
Tested I/O voltage
Isolation resistance
Conditions
Input to Output, 60 sec
Input to Ground
Typical
>1000
Rated
3000
2000
Units
VAC
MΩ
General Specifications
Parameters
Switching frequency
Over current protection
Over voltage protection
Short circuit protection
Operating temperature
Maximum case temperature
Storage temperature
Temperature coefficient
www.aimtec.com
F 052e R8.A
Conditions
Typical
Maximum
Units
KHz
% of Iout
See derating curve
65
≥110
Zener Diode Clamp
Auto recovery
-40 to +70
100
-40 to +105
±0.02
°C
°C
°C
% / °C
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Tel: +1 514 620 2722
1 of 3
Series AME15-JZ
15 Watt | AC-DC / DC-DC Converter
General Specifications (continued)
Parameters
Conditions
Typical
Maximum
Units
Cooling
Free air convection
Humidity
Non condensing
95
% RH
Case material
Plastic (flammability to UL 94V-0)
Weight
85
g
Dimensions
(L x W x H)
62.0 x 45.0 x 22.5 mm (2.44 x 1.77 x 0.89 inches)
MTBF
> 300 000 hrs (MIL-HDBK -217F, t=+25
o
C)/ Full Load
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage
(115/230VAC) and at rated output load unless otherwise specified.
Safety Specifications
Parameters
Agency approvals
CE, UL
Information Technology Equipment
EMI - Conducted and radiated emission
Electrostatic Discharge Immunity
RF, Electromagnetic Field Immunity
Electrical Fast Transient/Burst Immunity
Surge Immunity
RF, Conducted Disturbance Immunity
Power frequency Magnetic Field Immunity
Voltage dips, Short Interruptions Immunity
IEC/EN/UL 60950-1
EN55022, class B
EN55024: 2010
IEC 61000-4-2: Contact ±6KV/Air ±8KV, Criteria B
IEC 61000-4-3: 10V/m, Criteria A
IEC 61000-4-4: ±2KV, Criteria B
IEC 61000-4-5: ±1KV/±2KV, Criteria B
IEC 61000-4-6: 10Vrms, Criteria A
IEC 61000-4-8: 10A/m, Criteria A
IEC 61000-4-11: 0-70%, Criteria B
Standards
Typical Application circuit
FUSE
3.15A/300V
AC L
MOV
S14K350
AC N
AC L
Single Output
+ Vout
TVS
+ Vout
AC
AC N
Earth/GND
DC
+
C1
C2
1µF/50V
‐ Vout
‐ Vout
Vout
3.3 & 5VV
9V
12 & 15V
24V
48V
C2
680 µF/50V
470 µF/50V
220 µF/50V
68 µF/50V
33 µF/50V
TVS
7A
12A
20A
30A
64A
Pin Out Specifications
Pin
1
2
3
4
Single
AC Input (L)
AC Input (N)
- V output
+ V output
www.aimtec.com
F 052e R8.A
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AME15-JZ
15 Watt | AC-DC / DC-DC Converter

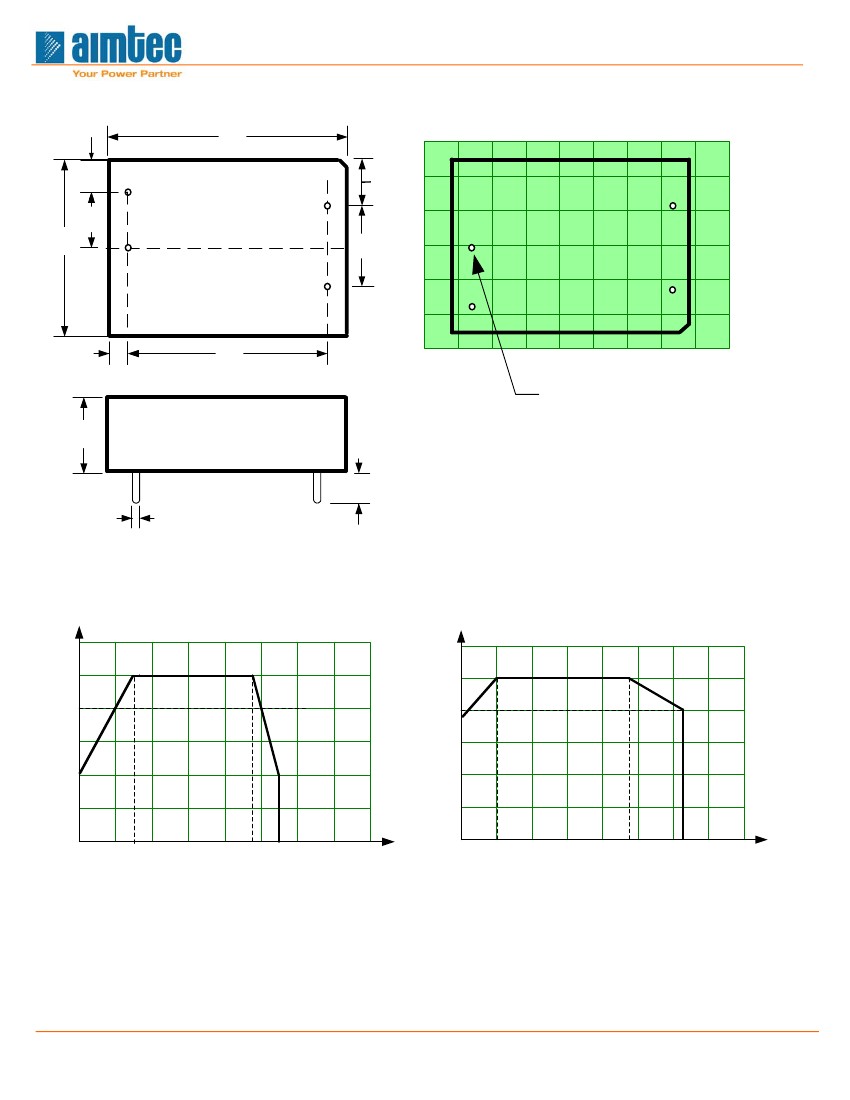

Dimensions
5.00
(0.20)
62.00
(2.44)
12.50
(0.49)
2
1
Bottom
View
45.00
(1.77)
17.50
(0.69)
4
20.00
(0.79)
1
Top View
3
3
2
4.00
(0.16)
54.00
(2.13)
4
DIV: 10.00 (0.40)
Ø 1.50 (Ø 0.06)
22.50
(0.89)
Dimensions mm (inch)
Case Tolerance ±0.50 (±0.02)
Pin Diameter 1.0 ± 0.10 (0.04 ± 0.004)
Derating
Free Air Convection
Free Air Convection at 25°C
100
80
60
40
20
0
- 40
- 20 -10 0
20
40
55
6.00
(0.24)
1.00
(0.04)
100
Output Power (%)
Output Power (%)
Safe Operating Area
100% load 100-277VAC
Or 120-390VDC
80
75
60
40
20
0
85
100
(100) (120)
277
(390)
Input Voltage VAC (VDC)
305
(430)
Safe Operating Area
60
70 80
100
Ambient Temperature
º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer
controlled by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary
based on the date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C,
humidity<75%, nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all
internal components and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for
release.
6.
This product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications
which necessitate specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available
