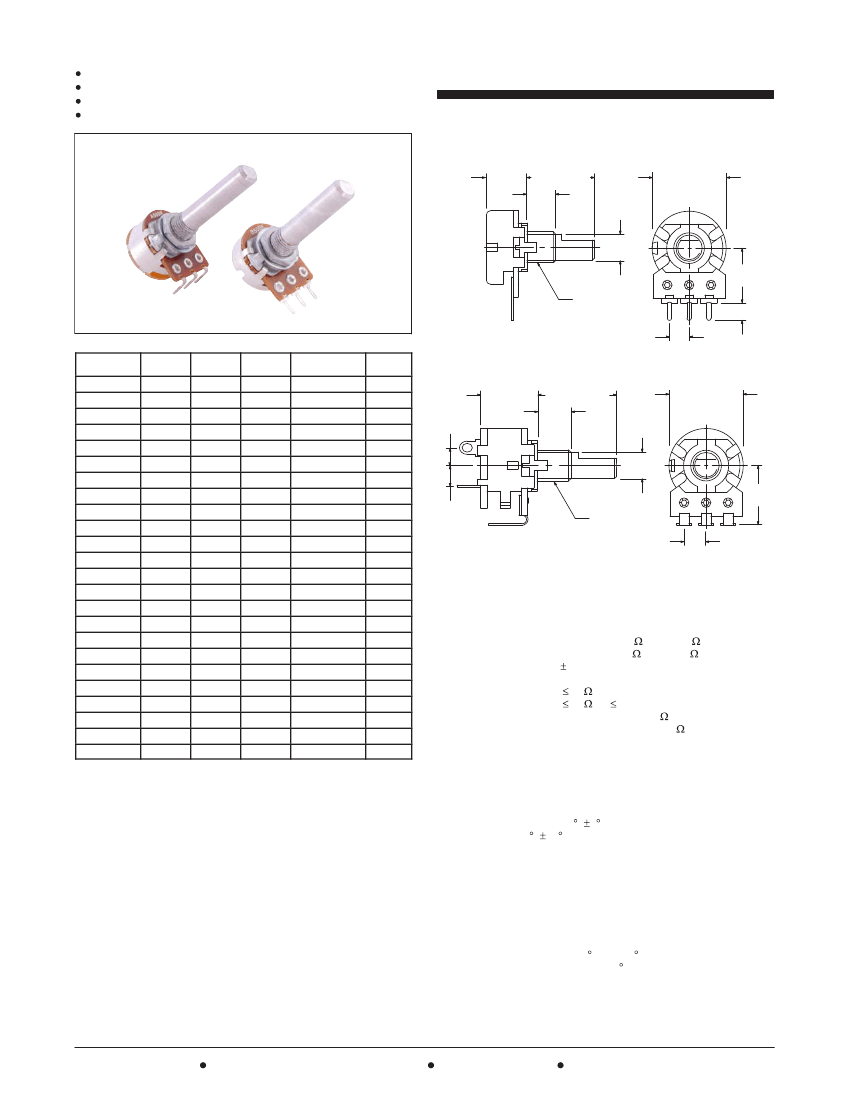

502-0321: Description0.1 Watt and 0.2 Watt, 6mm dia. shaft; File Size269KB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com

Download Datasheet View All

502-0321 Overview

0.1 Watt and 0.2 Watt, 6mm dia. shaft

Preview

Download Datasheet

View All

Features

Available in Linear and Audio Taper

Switch Type Available in Both Audio and Linear Taper

Solder Lug and Combination Type Terminals

Perfect for Consumer Electronics Applications

16mm Potentiometer

Potentiometer

−

0.1 Watt and 0.2 Watt,

6mm dia. shaft

P7

.362

(9.2)

1.181 (30.0)

.256

(6.5)

.665 (16.9) Dia

.236

(6.0)

.492

(12.5)

M7*0.75

.150

(3.8)

.197 (5.0)

Value

(Ohms)

1K

5K

10K

50K

100K

500K

1M

NTE Part No.

502−0301

502−0302

502−0303

502−0304

502−0305

502−0306

502−0307

502−0308

502−0309

502−0310

502−0311

502−0312

502−0313

502−0314

502−0315

502−0316

502−0317

502−0318

502−0319

502−0320

502−0321

502−0322

502−0323

502−0324

Taper

Linear

Audio

Linear

Audio

Linear

Audio

Linear

Audio

Linear

Audio

Linear

Audio

Linear

Audio

Switch

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

Yes

Terminal Style

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Combination

Solder Lug

Diag No.

P7

P8

P7

P8

P7

P8

P7

P8

P7

P8

P7

P8

P7

P8

P7

P8

P7

P8

P7

P8

.197 (5.0)

.185

(4.7)

M7*0.75

.532

(13.5)

.236

(6.0)

.157

(4.0)

P8

.453 (11.5)

1.181 (30.0)

.256

(6.5)

.665 (16.9) Dia

Specifications

Electrical

Resistance Range

−

Linear Taper:

1K to 1 Meg

Resistance Range

−

Audio Taper:

1K to 1 Meg

Resistance Tolerance:

20%

Sliding Noise:

less than 47mV

20 (R > 10K)

Residual Resistance:

10 (R 10K)

Insulation Resistance:

more than 100 Meg at 500VDC

Switch Contact Resistance:

less than 50 Meg

Operating Voltage:

150VAC

Rated Power

−

Linear Taper:

0.2W

Rated Power

−

Audio Taper:

0.1W

Switch Rated Power:

125VAC at 1A

Withstand Voltage:

1 minute at 500VAC

Mechanical

Total Rotation Angle:

300 5

Switch Angle:

35 10

Rotation Torque:

30gf.cm to 200gf.cm

Switch Action:

50gf.cm to 350gf.cm

Rotation Stopper Strength:

8Kgf.cm Max

Shaft Push−Pull Strength:

7Kgf.‘ Max

Rotation Life:

15,000 cycles

Switch Life:

10,000 cycles

Mounting Hole:

.312” (7.9mm) dia.

Environmental

Operating Temperature:

−10

C to +70 C

Resistance to Soldering Heat:

260 C for 3 seconds

NTE Electronics, Inc.

Voice (800) 631−1250 (973) 748−5089

FAX (973) 748−6224

http://www.nteinc.com
