C0603T103J2RCL7013: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP; CategoryPassive components capacitor; File Size57KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0603T103J2RCL7013 Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP

C0603T103J2RCL7013 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	7295907610
package instruction	, 0603
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	0.01 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e0
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	200 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

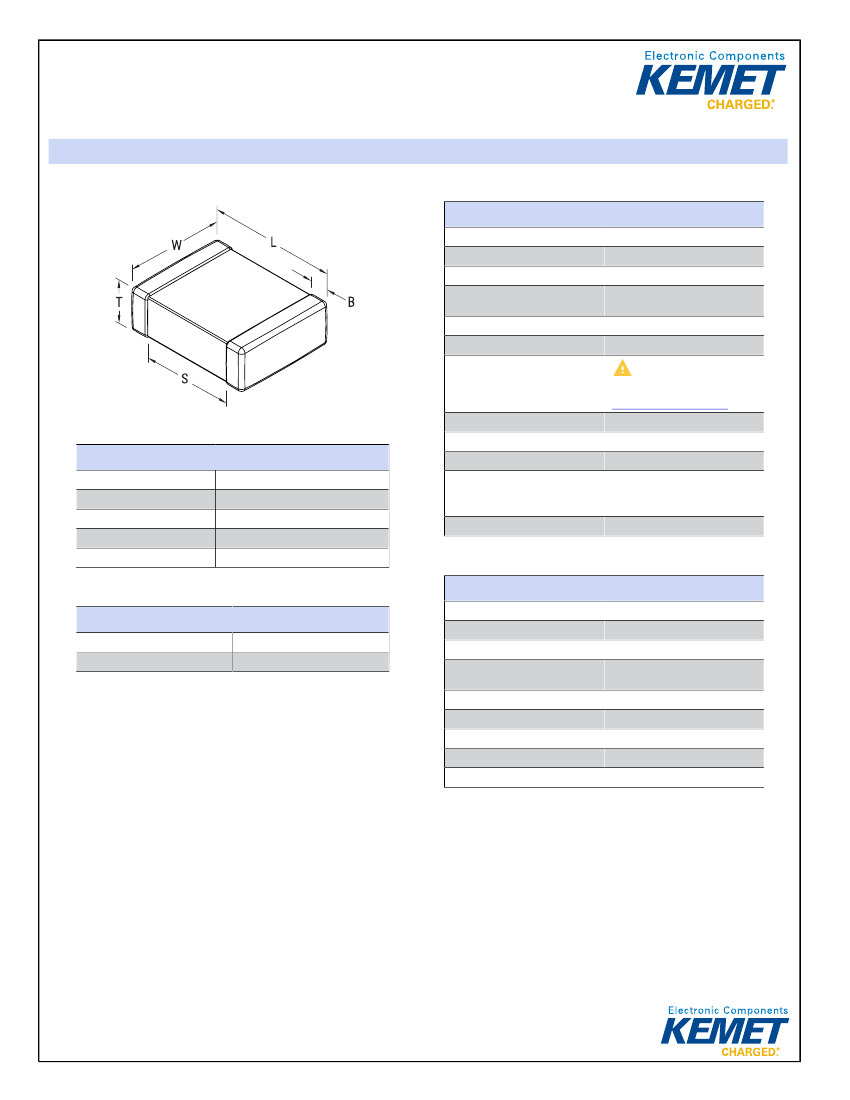

KEMET Part Number: C0603T103J2RCLTM

(C0603T103J2RCL7013)

SMD COTS X7R, Ceramic, COTS, 0.01 uF, 5%, 200 VDC, X7R, SMD, MLCC, COTS, Temperature Stable, Class II, 0603

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Prop 65:

REACH:

KEMET

SMD COTS X7R

SMD Chip

SMD, MLCC, COTS,

Temperature Stable, Class II

No

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

SVHC (Pb – CAS 7439-92-1)

Lead (SnPb)

Yes

Note: Referee time for X7R

dielectric for this part number is

1000 hours

0603

Dimensions

L

W

T

S

B

1.6mm +/-0.15mm

0.8mm +/-0.15mm

0.8mm +/-0.07mm

0.7mm MIN

0.35mm +/-0.15mm

Termination:

Marking:

Miscellaneous:

Chip Size:

Specifications

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Paper Tape

4000

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Aging Rate:

Insulation Resistance:

0.01 uF

5%

200 VDC

500 V

-55/+125C

X7R

2.50% 1kHz 25C

3% Loss/Decade Hour

100 GOhms

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/08/2019 - b5deb223-3063-4089-9472-89130fe616b6
