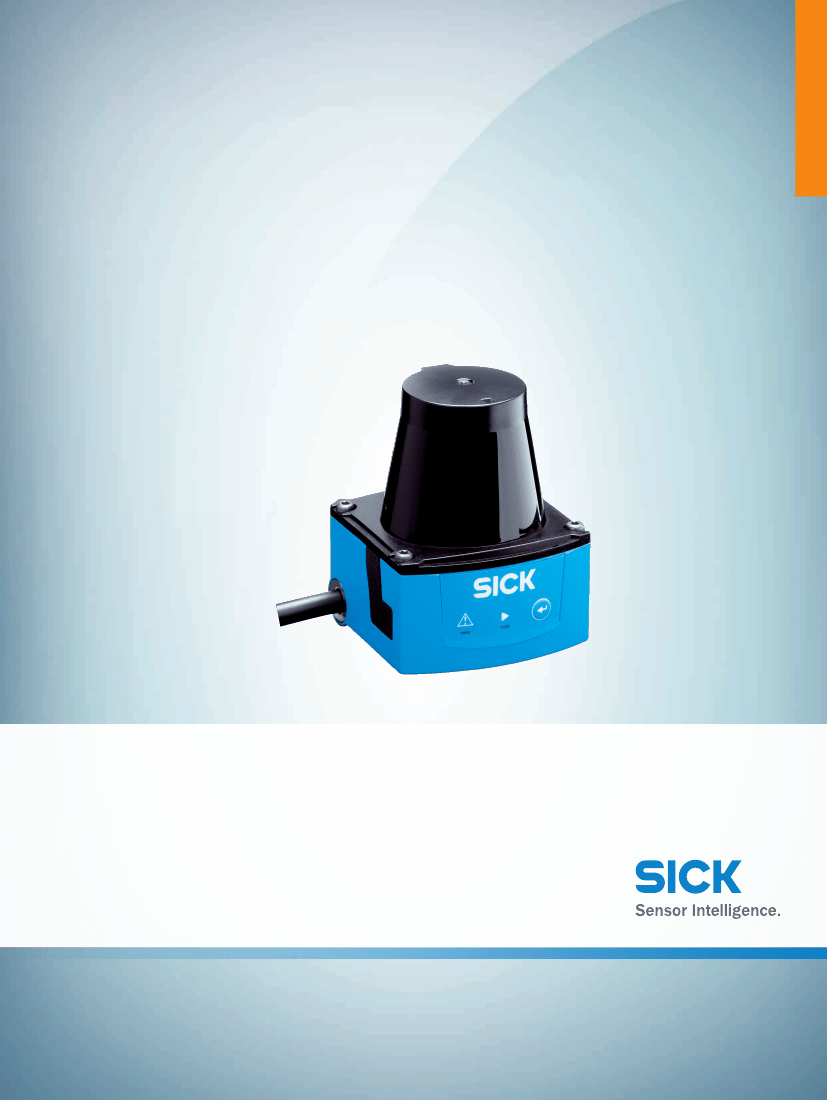

TIM310-1030000S02
TiM3xx
2D LASER SCANNERS
Online data sheet
TIM310-1030000S02 | TiM3xx
2D LASER SCANNERS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

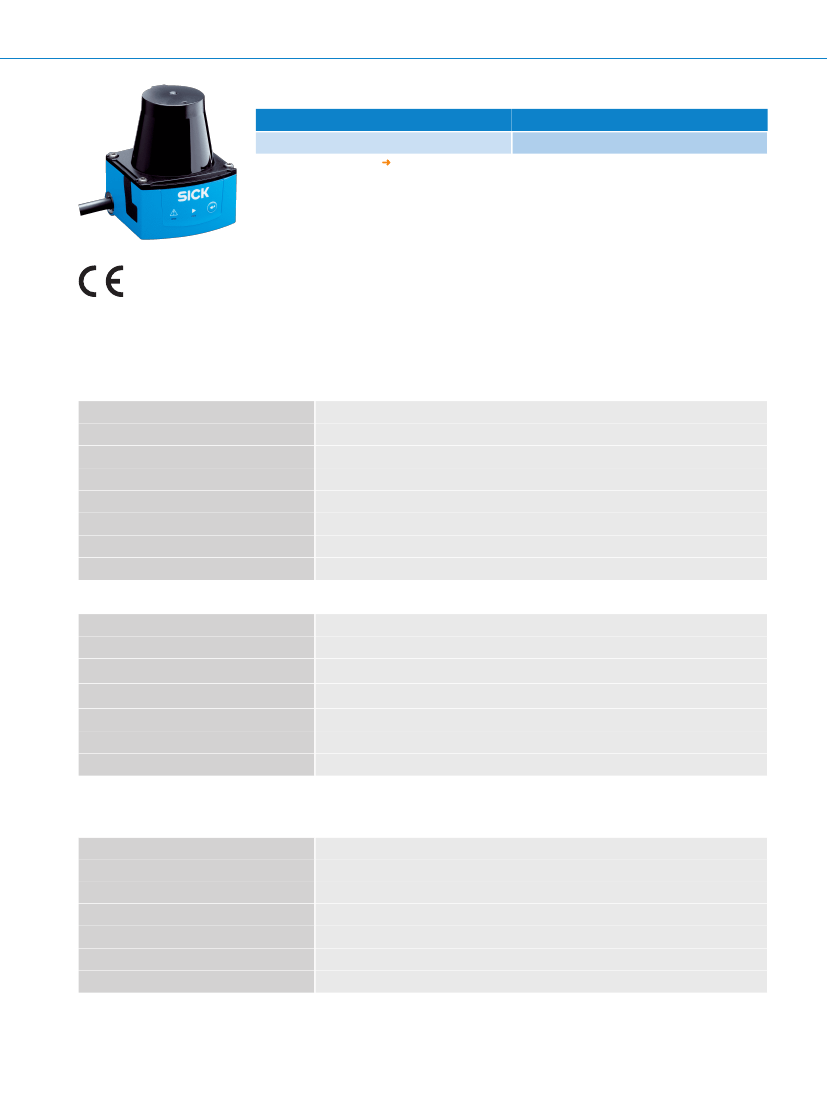

Ordering information
Type
TIM310-1030000S02
Other models and accessories
www.sick.com/TiM3xx
Part no.
1062221
Detailed technical data
Features
Field of application
Light source
Laser class
Aperture angle
Scanning frequency
Angular resolution
Operating range
Max. range with 10 % reflectivity
Indoor
Infrared (850 nm)
1, eye-safe (EN 60825-1 (2007-10))
270°
15 Hz
1°
0.05 m ... 4 m
2 m
Performance
Response time
Detectable object shape
Systematic error
Statistical error
Integrated application
Number of field sets
Simultaneous evaluation cases
1)
Typ. 134 ms
Almost any
± 40 mm
1)
± 30 mm
1)
Field evaluation
16 field triples (48 fields, 1 triple (3 fields) programmable directly at the scanner)
1 (3 fields)
Typical value; actual value depends on environmental conditions.
Interfaces
USB
Switching inputs
Switching outputs
Delay time
Dwell time
Optical indicators
✔,
micro USB
Function AUX, parameterization
4 (NPN)
3 (NPN, Additional 1 x “Device Ready”)
134 ms ... 30,000 ms (programmable)
67 ms ... 10,000 ms (programmable)
2 LEDs (ON, switching status)
2
DETECTION AND RANGING SOLUTIONS | SICK
Online data sheet | 2016-03-19 03:20:07
Subject to change without notice
TIM310-1030000S02 | TiM3xx
Mechanics/electronics
Electrical connection
Operating voltage
Power consumption
Housing color
Enclosure rating
Protection class
Weight
Dimensions (L x W x H)
1 x 15-pin D-sub HD male connector (0.9 m)
9 V DC ... 28 V DC
3 W
Light blue (RAL 5012)
IP 65 (EN 60529/A1:2000-02)
III (EN 60950-1/A11 (2009-03))
150 g, without connecting cables
60 mm x 60 mm x 79 mm
2D LASER SCANNERS
Ambient data
Object remission
Electromagnetic compatibility (EMC)
Vibration resistance
Shock resistance
Ambient operating temperature
Storage temperature
Ambient light immunity
4 % ... > 1,000 % (reflectors)
EN 61000-6-3 (2007-01) / EN 61000-6-2 (2005-08)
EN 60068-2-6 (2008-02)
EN 60068-2-27 (2009-05)
–10 °C ... +50 °C
–30 °C ... +70 °C
15,000 lx
General notes
Note on use
Not suitable for personnel protection
2016-03-19 03:20:07 | Online data sheet
Subject to change without notice
DETECTION AND RANGING SOLUTIONS | SICK
3
TIM310-1030000S02 | TiM3xx
2D LASER SCANNERS
55.8
(2.19)
19.4
*)
27.3
(1.08)
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

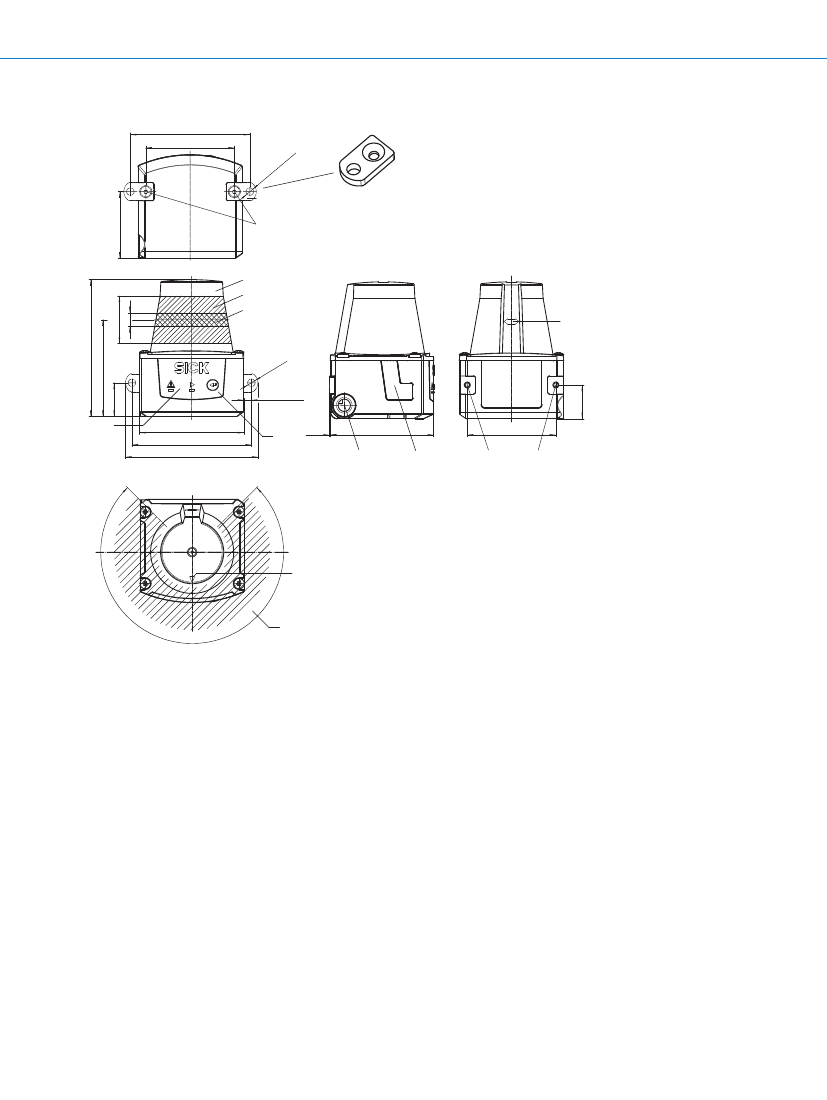

Dimensional drawing
(Dimensions in mm (inch))
68.8
(2.71)
*)
51
(20)
Ø
3
4.
(0
7
.1
*
)
)
2x
38.3
(1.50
)
1
2
Mounting kit 1
8
(0.31)
3
4
5
ß
*)
79
(3.11)
.3
Ø 4
6)
( 0.
1
(0.76)
6
60
(2.36)
68.8
(2.71)
*)
76.3
(3.0)
*)
‒45°
7
0.5
*)
(0.02)
60
(2.36)
51
(2.00)
8
225°
9
2
2
0°
180°
à
*)
Measures including straight plates
á
90°
① 2 x
straight plates with M3 x 4 mm screw (included in delivery)
② M3
threaded mounting hole, 2.8 mm deep (blind hole thread)
③ Optical
hood
④ Receiving
range (light inlet)
⑤ Transmission
range (light emission)
⑥ Red
and green LED (status displays)
⑦ Function
button for teach-in
⑧ Connecting
cable exit (“power/switching inputs/outputs” connection)
⑨ Micro
USB female connector, type B
⑩ Marking
for the position of the light emission level
⑪ Bearing
marking to support alignment (90° axis)
⑫ Aperture
angle 270° (scanning angle)
4
DETECTION AND RANGING SOLUTIONS | SICK
19.4
4.4
(0.17)
(0.76)
Online data sheet | 2016-03-19 03:20:07
Subject to change without notice
TIM310-1030000S02 | TiM3xx
Operating range diagram
Scanning range in m (ft)
6
(19.69)
2D LASER SCANNERS
180°
4
(13.12)
225°
2
(6.56)
270°
90°
0
–2
(–6.56)
–4
(–13.12)
‒45°
0°
–6
–4
–2
0
2
(6.56)
–6
(–19.69)
(–19.69) (–13.12) (–6.56)
4
(13.12)
6
(9.69)
Scanning range in m (ft)
Scanning range max. 4 m (13.12 feet)
Scanning range typical 2 m (6.56 feet)
for objects up to 10 % remission
Recommended accessories
Other models and accessories
www.sick.com/TiM3xx
Brief description
Type
Part no.
Mounting brackets and mounting plates
1 piece, mounting set 2, fender and alignment aid
Mounting kit 2
2061776
Modules
Small connection module for one sensor, 4 cable glands (only for TiM3xx-10xxxxx)
CDB730-001
1055981
Plug connectors and cables
Head A: female connector, D-Sub-HD, 15-pin, straight
Head B: cable
Cable: Power, serial, CAN, digital I/Os, shielded, 2 m
Head A: male connector, USB-A
Head B: male connector, Micro-B
Cable: USB 2.0, unshielded, 2 m
Extension cable,
2 m (female con-
nector - open)
USB cable
2043413
6036106
Cleaning agent
Plastic cleaner and care product, anti-static, 0.5 liter
Plastic cleaner
5600006
2016-03-19 03:20:07 | Online data sheet
Subject to change without notice
DETECTION AND RANGING SOLUTIONS | SICK
5
