Polypropylene Pulse/High Frequency Capacitors
R75, Single Metallized Polypropylene Film, Radial,
DC and Pulse Applications (Automotive Grade)
Overview

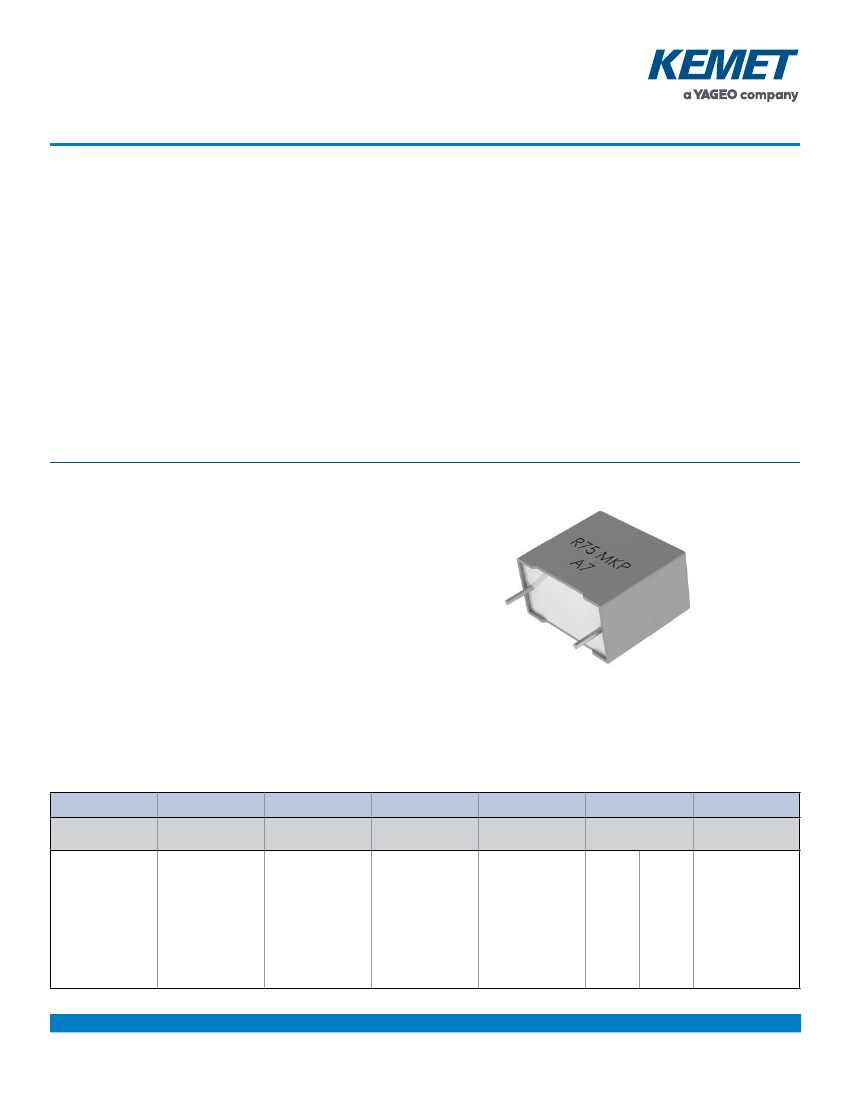

The R75 Series is constructed of metallized polypropylene
film with radial leads of tinned wire. The radial leads
are electrically welded to the metal layer on the ends of
the capacitor winding. The capacitor is encapsulated in
a self-extinguishing solvent resistant plastic case with
thermosetting resin material meeting the UL 94 V–0
requirements. Two different winding constructions are used
depending on voltage parameters and lead spacing. Please
see the Performance Characteristics for more information.
Automotive grade devices (lead spacing 7.5 – 22.5 mm)
meet the demanding Automotive Electronics Council's
AEC–Q200 qualification requirements.
Applications
Typical applications include resonant circuit, high frequency
medium to heigh current, silicon-controlled rectifier (SCR
and IGBT) and SiC (e.g. MOSFET) commutation circuits
as well as applications with high voltage and medium to
high current and DC link, timing, oscillator circuits, high
frequency coupling and decoupling applications.
Not suitable for across-the-line application
(see Suppressor Capacitors).
Benefits
• Voltage range: 160 – 2,000 VDC
• Capacitance range: 220 pF – 33 µF
• Lead Spacing: 5 – 37.5 mm
• Capacitance tolerance: ±5%, ±10%, ±20%
• Climatic category: 55/105/56 IEC 60068–1
• Operating temperature range of −55˚C to +105˚C
• RoHS compliance and lead-free terminations
• Tape & Reel packaging in accordance with IEC 60286–2
• Self-healing
• Automotive (AEC–Q200) grades available up to lead
spacing 22.5 mm
Part Number System
R75
Series
Metallized
Polypropylene
P
Rated
Voltage (VDC)
G = 160
I = 250
M = 400
P = 630
Q = 1,000
R = 1,250
J = 1,300
T = 1,600
U = 2,000
N
Lead
Spacing (mm)
C=5
D = 7.5
F = 10
I = 15
N = 22.5
R = 27.5
W = 37.5
2820
Capacitance
Code (pF)
The last three
digits represent
significant figures.
The first digit
specifies the total
number of zeros
to be added.
AA
Packaging
See Ordering
Options Table
00
10
20
30
40
45
30
Internal Use
50
60
70
80
L0
K
Capacitance
Tolerance
H = ±2.5%
J = ±5%
K = ±10%
M = ±20%
Halogen free is available upon special request.
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3106_R75 • 3/24/2022
1
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R75, Single Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Ordering Options Table
Lead Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
4 +1.5/−0
H
0
= 18.5±0.5
H
0
= 18.5±0.5
10±1
4.0 +0.5/−0
3.2 +0.3/−0.2
17 +1/−2
AA
DQ
Lead Length
(mm)
Lead and
Packaging
Code
5
Tape & Reel (Standard Reel Ø 355 mm)
Bulk – Short Leads
Bulk – Short Leads
Bulk – Short Leads
Bulk – Long Leads
Standard Lead and Packaging Options
Bulk – Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Standard Reel Ø 355 mm)
Bulk – Short Leads
Bulk – Short Leads
Bulk – Short Leads
Bulk – Short Leads
Bulk – Long Leads
Bulk – Long Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
CK
JC
JE
JH
Z3
4 +2/−0
H
0
= 18.5±0.5
H
0
= 18.5±0.5
2.7 +0.5/−0
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
18±1
17 +1/−2
AA
DQ
CK
JA
JB
JE
JH
JM
Z3
7.5
4 +2/−0
H
0
= 18.5±0.5
H
0
= 18.5±0.5
H
0
= 18.5±0.5
2.7 +0.5/−0
3.5 +0.5/−0
10±1
4.0 +0.5/−0
3.2 +0.3/−0.2
18±1
30 +5/−0
25 +2/−1
AA
DQ
GY
CK
JA
JB
JC
JE
JH
JM
40
50
10
15
22.5
Tape & Reel (Standard Reel Ø 355 mm)
Tape & Reel (Large Reel Ø 500 mm)
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
1
= Not for all sizes, see "Packaging Quantities" table.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3106_R75 • 3/24/2022
2
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R75, Single Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Ordering Options Table cont.
Lead Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Other Lead and Packaging Options
Tape & Reel (Standard Reel Ø 355 mm)
Tape & Reel (Large Reel Ø 500 mm)
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Other Lead and Packaging Options
4 +2/−0
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
30 +5/−0
25 +2/−1
AA
JB
JE
JH
40
50
4 +2/−0
H
0
= 18.5±0.5
H
0
= 18.5±0.5
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
30 +5/−0
25 +2/−1
AA
GY
CK
1
JB
JE
JH
40
50
Lead Length
(mm)
Lead and
Packaging
Code
27.5
37.5
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3106_R75 • 3/24/2022
3
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
R75, Single Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Dimensions – Millimeters
Loose
Loose
Taped
L
T
L
H
S
F
LL
T
H
S
LL
F
H
0
P
2
P
2
P
2
S
5.0
5.0
5.0
5.0
5.0
7.5
7.5
7.5
7.5
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
3.5
4.5
5.0
6.0
7.2
3.0
4.0
5.0
6.0
4.0
5.0
6.0
4.0
5.0
6.0
7.5
8.5
9.0
10.0
11.0
13.0
T
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.1/−0.5
7.5
9.5
10.0
11.0
13.0
8.0
9.0
10.5
12.0
9.0
11.0
12.0
10.0
11.0
12.0
13.5
14.5
12.5
16.0
19.0
12.0
H
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
7.2
7.2
7.2
7.2
7.2
10.0
10.0
10.0
10.5
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
L
+0.2/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
F
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/Ho) options.
